SWITCHES

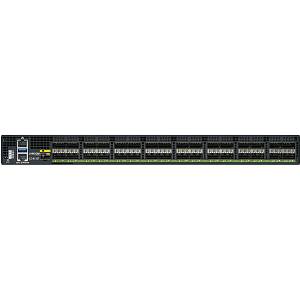

100G fiber core switch for enterprise campus networks

As a central node in campus networks. the LANCOM CS-8132F core switch meets the requirements of today's and tomorrow's bandwidth-intensive applications. Especially for companies with many locations and very high data traffic. the 32 high-performance wire-speed 100G QSFP28 industry-standard ports with up to 6.4 Tbps switch capacity are the powerful backbone of the network. This makes the LANCOM CS-8132F ideal for use as a core switch in three-tier networks and for realizing switch architectures with 100% uptime. Intelligent functions such as Virtual Port Channel (VPC / MC-LAG). redundant and hot-swappable power supply and fan modules. a selectable ventilation concept. and a Limited Lifetime Warranty make this possible. If the switch is managed via the LANCOM Management Cloud. you benefit from standardized management and location-independent real-time monitoring of all network components. Alternatively. you can use the

Management features
Switch type: Managed
Switch layer: L2/L3
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Traffic classification
Feature: ARP inspection
Feature: Configuring Location Settings (CLI)
Feature: System event log
MIB support: MIB II. Bridge MIB. Interface MIB. SMON MIB. IGMP MIB. IEEE 802.3 MAU MIB
Ports & interfaces
Console port: RJ-45
QSFP28 ports quantity: 32
Power connector: AC-in jack
Network
Networking standards: IEEE 802.1AX. IEEE 802.1D. IEEE 802.1Q. IEEE 802.1w
Feature: 10G support
Feature: Port mirroring
Feature: Full duplex
Feature: IP routing
Feature: Policy-based routing
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Feature: Spanning tree protocol
IPv4 routes: 16000
IPv6 routes: 16000
Feature: VLAN support
Virtual LAN features: Private VLAN. Voice VLAN
Number of VLANs: 4093
Data transmission
Throughput: 32000 Gbit/s
MAC address table: 32000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 12288
Packet buffer memory: 32 MB
Security
DHCP features: DHCP client. DHCP relay. DHCP server
Feature: Access Control List (ACL)
Feature: IGMP snooping
Security algorithms: SNMP. SNMPv2. SNMPv3
Feature: Static port security
Feature: SSH/SSL support
Feature: Loop protection
Feature: Password protection
Authentication type: IEEE 802.1x. RADIUS. TACACS+
Multicast features
Feature: Multicast support
Protocols
Management protocols: SNMP
Feature: GARP VLAN Registration Protocol (GVRP)
Routing protocols: BGP4. OSPFv2. OSPFv3
Design
Feature: Rack mounting
Form factor: 1U
Product colour: Black
Feature: LED indicators
Number of fans: 3 fan(s)
Performance
Feature: Built-in processor
Processor frequency: 1600 MHz
Memory type: DDR4-SDRAM
Internal memory: 8192 MB
Noise level: 65 dB
Feature: Firmware upgradeable
Power
Power source: AC
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 310 W
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%
Heat dissipation: 1060 BTU/h
Weight & dimensions
Width: 446 mm
Depth: 480 mm
Height: 43.8 mm
Weight: 7.44 kg
Packaging content
Feature: Manual
Packaging data
Package width: 540 mm
Package depth: 660 mm
Package height: 180 mm
Package weight: 7.45 kg
Logistics data
Customs product code (TARIC): 85176200
Country of origin: Taiwan
