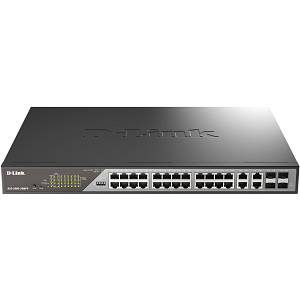

D-Link DSS-200G-28MP/E 28-Port Desktop Gigabit PoE Switch
Product code: 11775222 // MPN: DSS-200G-28MP/E // EAN: 0790069471803
New entry
Enjoy the Power of Next-Gen Surveillance Switch
Enhance your surveillance environment with the DSS-200G. a smart and easily installed device that delivers greater control and flexibility. Discover the capabilities of this intelligent tool that automates processes and adds intelligence to your network.
Built for Surveillance.
with Gigabit Ethernet & PoE++
Designed to meet surveillance requirements for businesses of all sizes. with features like support for high-powered PTZ cameras. high PoE budgets. Auto Surveillance VLAN. and surge protection. these switches are ideal for IP surveillance setups.
Long Range PoE Delivery
Connect and power cameras up to 250 metres away without the need for additional PoE extenders.
Power Your Devices
Supports PoE/PoE+ to connect and power your PoE-cable network devices via Ethernet cables without the need for power adapters.
Reliable PoE Connections
Surge protection on all PoE ports protects the switch when feeding power to PoE-capable devices.
Rapid deployments with a single PoE cable.
The series supports PoE. and some provide higher power PoE++. delivering up to 90 watts on selected ports. enabling faster deployment of PoE devices such as IP cameras. VoIP phones. access points. terminals. speakers. lights. conferencing systems. displays. and more.
Reach further with a flick of a switch.
The built-in DIP switch allows easy configuration and quick adjustment of application settings without the need to access the web configuration. Quickly enable and disable functions such as QoS. Extend (connection by up to 250 metres). Port Isolation. PD-Alive and STP (Spanning Tree Protocol) in an instant.
Protects the network against power surges.
6kV surge protection on all PoE ports protects the network against voltage spikes with link aggregation. ERPS and STP support to make your network more robust and resilient.
Connect to more with PoE++
See your remaining power availability with the built-in PoE Power Budget LEDs for 25%. 50%. 75%. and 100% power usage at a glance. And utilise up to 518W. with 90W on 8 ports and 30W on 15 ports for DSS-200G-28MPP. so you can rapidly deploy more devices.
Layer 2 management features.
Comes with a complete line-up of L2 features. including port mirroring. Spanning Tree Protocol (STP). and Link Aggregation Control Protocol (LACP). Network maintenance features such as loopback detection and cable diagnostics.
Quality of Service and bandwidth control.
Bandwidth control allows network administrators to reserve bandwidth for important functions that require higher priority or more bandwidth.
Auto Surveillance VLAN consolidates data and surveillance video transmission through a single switch. sparing businesses the expense of dedicated hardware and facilities.
Voice VLAN enhances the VoIP service by automatically placing voice traffic from IP phones to a designated VLAN. With a prioritised and segmented VLAN. this feature guarantees quality and security of VoIP traffic.
Energy efficient
With built-in D-Link Green technology. this series saves power without sacrificing operational performance or functionality.
Time-Based PoE
Schedule the ports on the switch to provide PoE power to devices on specific days and during set hours of the week for energy savings
Sleep mode
Link status drastically reduces power consumption by automatically putting ports without a link into a sleep mode
Advanced chipset
The series incorporates a special chipset with advanced silicon technology for efficient use of energy
We're here to help.
Over 35 years in the networking industry
Innovative end-to-end solution experts for small businesses to large corporations around the world.
Talking to us is easy
Skilled local support in 16 countries. Our support teams are ready to help you.
Management features
Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Traffic classification
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity: 4
Network
Networking standards: IEEE 802.3. IEEE 802.3ab. IEEE 802.3ad. IEEE 802.3af. IEEE 802.3at. IEEE 802.3az. IEEE 802.3u. IEEE 802.3x
Feature: Port mirroring
Feature: Full duplex
Feature: Half duplex
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Feature: Auto MDI/MDI-X
Feature: Spanning tree protocol
Feature: Head-of-line (HOL) blocking
Ethernet LAN data rates: 1000 Mbit/s
Feature: Auto-negotiation
Feature: VLAN support
Virtual LAN features: Voice VLAN
Number of VLANs: 4094
Data transmission
Switching capacity: 56 Gbit/s
Forwarding rate: 41.67 Mpps
MAC address table: 8000 entries
Number of queues: 4
Feature: Jumbo frames support
Jumbo frames: 10240
Packet buffer memory: 4.1 MB
Security
Feature: IGMP snooping
Feature: SSH/SSL support
Feature: Password protection
Queue scheduling algorithms: Strict Priority Queue (SPQ). Weighted Round Robin (WRR)
Multicast features
Feature: Multicast support
Multicast features: Controllable multicast
Design
Form factor: 1U
Product colour: Grey
Feature: Reset button
LED indicators: Activity. Alarm. Link. Power. Speed
Number of fans: 2 fan(s)
Performance
Memory type: DDR3-SDRAM
Internal memory: 128 MB
Flash memory: 32 MB
Noise level: 53 dB
Mean time between failures (MTBF): 331732 h
Power
Power source: AC
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 6.4 A
Input voltage: 100 - 240 V
Power consumption (max): 425.9 W
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity: 24
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 370 W
Operational conditions
Operating temperature (T-T): -5 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Heat dissipation: 190.74 BTU/h
Weight & dimensions
Width: 440 mm
Depth: 208 mm
Height: 44 mm
Weight: 2.86 kg
Sustainability
Feature: Sustainability compliance
Enhance your surveillance environment with the DSS-200G. a smart and easily installed device that delivers greater control and flexibility. Discover the capabilities of this intelligent tool that automates processes and adds intelligence to your network.
Built for Surveillance.
with Gigabit Ethernet & PoE++
Designed to meet surveillance requirements for businesses of all sizes. with features like support for high-powered PTZ cameras. high PoE budgets. Auto Surveillance VLAN. and surge protection. these switches are ideal for IP surveillance setups.
Long Range PoE Delivery
Connect and power cameras up to 250 metres away without the need for additional PoE extenders.
Power Your Devices
Supports PoE/PoE+ to connect and power your PoE-cable network devices via Ethernet cables without the need for power adapters.
Reliable PoE Connections
Surge protection on all PoE ports protects the switch when feeding power to PoE-capable devices.
Rapid deployments with a single PoE cable.
The series supports PoE. and some provide higher power PoE++. delivering up to 90 watts on selected ports. enabling faster deployment of PoE devices such as IP cameras. VoIP phones. access points. terminals. speakers. lights. conferencing systems. displays. and more.
Reach further with a flick of a switch.
The built-in DIP switch allows easy configuration and quick adjustment of application settings without the need to access the web configuration. Quickly enable and disable functions such as QoS. Extend (connection by up to 250 metres). Port Isolation. PD-Alive and STP (Spanning Tree Protocol) in an instant.
Protects the network against power surges.
6kV surge protection on all PoE ports protects the network against voltage spikes with link aggregation. ERPS and STP support to make your network more robust and resilient.
Connect to more with PoE++
See your remaining power availability with the built-in PoE Power Budget LEDs for 25%. 50%. 75%. and 100% power usage at a glance. And utilise up to 518W. with 90W on 8 ports and 30W on 15 ports for DSS-200G-28MPP. so you can rapidly deploy more devices.
Layer 2 management features.
Comes with a complete line-up of L2 features. including port mirroring. Spanning Tree Protocol (STP). and Link Aggregation Control Protocol (LACP). Network maintenance features such as loopback detection and cable diagnostics.
Quality of Service and bandwidth control.
Bandwidth control allows network administrators to reserve bandwidth for important functions that require higher priority or more bandwidth.
Auto Surveillance VLAN consolidates data and surveillance video transmission through a single switch. sparing businesses the expense of dedicated hardware and facilities.
Voice VLAN enhances the VoIP service by automatically placing voice traffic from IP phones to a designated VLAN. With a prioritised and segmented VLAN. this feature guarantees quality and security of VoIP traffic.
Energy efficient
With built-in D-Link Green technology. this series saves power without sacrificing operational performance or functionality.
Time-Based PoE
Schedule the ports on the switch to provide PoE power to devices on specific days and during set hours of the week for energy savings
Sleep mode
Link status drastically reduces power consumption by automatically putting ports without a link into a sleep mode
Advanced chipset
The series incorporates a special chipset with advanced silicon technology for efficient use of energy
We're here to help.
Over 35 years in the networking industry
Innovative end-to-end solution experts for small businesses to large corporations around the world.
Talking to us is easy
Skilled local support in 16 countries. Our support teams are ready to help you.
Management features
Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Traffic classification
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity: 4
Network
Networking standards: IEEE 802.3. IEEE 802.3ab. IEEE 802.3ad. IEEE 802.3af. IEEE 802.3at. IEEE 802.3az. IEEE 802.3u. IEEE 802.3x
Feature: Port mirroring
Feature: Full duplex
Feature: Half duplex
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Feature: Auto MDI/MDI-X
Feature: Spanning tree protocol
Feature: Head-of-line (HOL) blocking
Ethernet LAN data rates: 1000 Mbit/s
Feature: Auto-negotiation
Feature: VLAN support
Virtual LAN features: Voice VLAN
Number of VLANs: 4094
Data transmission
Switching capacity: 56 Gbit/s
Forwarding rate: 41.67 Mpps
MAC address table: 8000 entries
Number of queues: 4
Feature: Jumbo frames support
Jumbo frames: 10240
Packet buffer memory: 4.1 MB
Security
Feature: IGMP snooping
Feature: SSH/SSL support
Feature: Password protection
Queue scheduling algorithms: Strict Priority Queue (SPQ). Weighted Round Robin (WRR)
Multicast features
Feature: Multicast support
Multicast features: Controllable multicast
Design
Form factor: 1U
Product colour: Grey
Feature: Reset button
LED indicators: Activity. Alarm. Link. Power. Speed
Number of fans: 2 fan(s)
Performance
Memory type: DDR3-SDRAM
Internal memory: 128 MB
Flash memory: 32 MB
Noise level: 53 dB
Mean time between failures (MTBF): 331732 h
Power
Power source: AC
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 6.4 A
Input voltage: 100 - 240 V
Power consumption (max): 425.9 W
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity: 24
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 370 W
Operational conditions
Operating temperature (T-T): -5 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Heat dissipation: 190.74 BTU/h
Weight & dimensions
Width: 440 mm
Depth: 208 mm
Height: 44 mm
Weight: 2.86 kg
Sustainability
Feature: Sustainability compliance
