RACK CABINETS

The Varioflex-N series has been designed and manufactured for the high demands of IT infrastructure. It offers maximum stability and flexibility in a wide range of usage scenarios.

- 483 mm (19") profile rails with high load capacity of up to 1200 kg
- Modular. openable base chassis with removable blank panels
- Generously dimensioned vertical cable channels with cable routing and trim panel built into the front panel

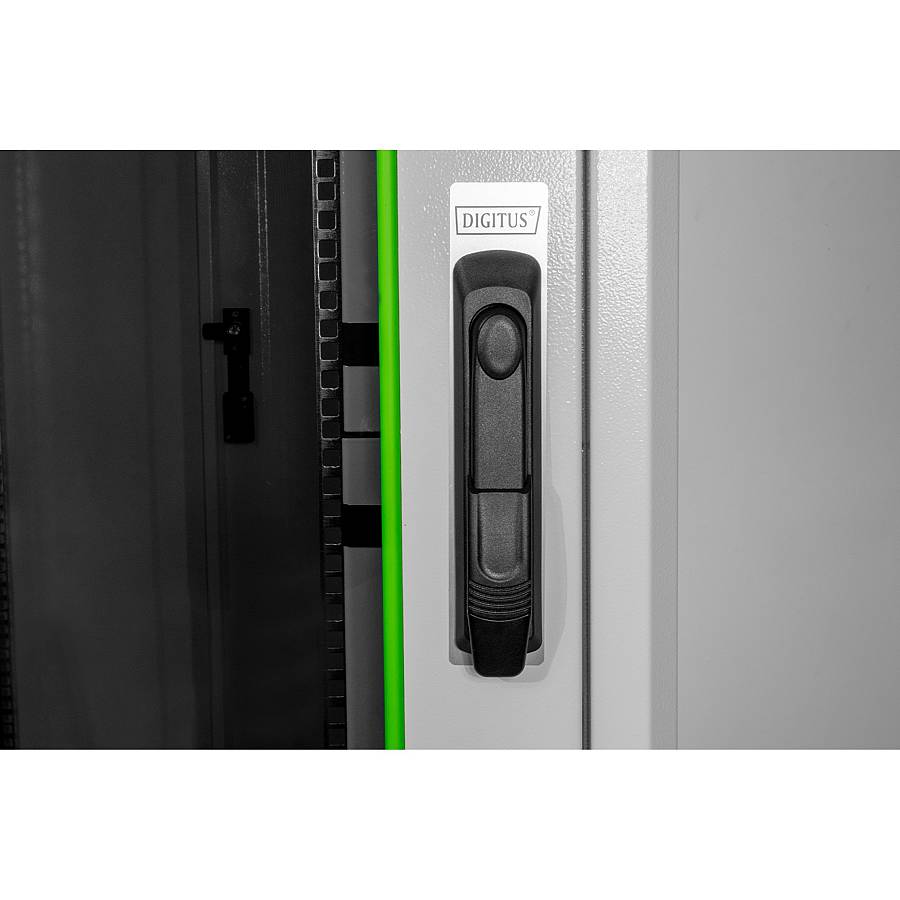

- Swing handle with profile half-cylinder lock incl. key on front and rear doors
- Protection type IP20

The network cabinets from the Varioflex-N series were designed and produced for optimum cabling of network components. Clever optimizations offer market-compliant stability with maximum flexibility. A modular floor structure that can be opened by means of bolted 483 mm (19”) blank panels offers plenty of space for cables of all kinds. Furthermore. there are two cable inlets with brushes at the top and bottom of the cabinet. as well as another at the back of the floor structure. The versatile features of the network cabinet are perfectly completed by generous vertical cable channels with plastic cable guides and trim panel. built into the front. An offset. removable cover with ventilation slits ensures enhanced air circulation. This features a special design for easy mounting of a fan module. Integrated inside the cabinet are four cranked. galvanized 483 mm (19”) profiles. which are connected to the base frame of the cabinet at several points using depth bars. The depth is adjustable. and they have markings for the respective rack unit. which can be read in both directions. Each cabinet is made of up to 1.5 mm thick sheet steel. Coloring is done with electrostatic powder coating in the standard colors gray (RAL 7035) or jet black (RAL 9005). Side walls and doors that can be locked or removed in a modular design improve accessibility. The door hinges can be switched. Furthermore. the cabinets can be completely dismantled if necessary due to their collapsible design.

Features
Rack capacity: 42U
Type: Freestanding rack
Maximum weight capacity: 1200 kg
Product colour: Grey
Material: Metal. Tempered glass
Frame type: Closed
Back door construction: Steel
Front door construction: Glass
Side panel construction: Steel
Feature: Removable side panels
Feature: Side panels included
Side panel style: Blind
Back door style: Blind
Front door style: Glass door
Feature: Key lock
Feature: Back door key lock
Feature: Front door key lock
Feature: Side panel key lock
Feature: Rack rails
Feature: Adjustable mounting rails
Feature: Adjustable feet
Door opening angle: 120°
International Protection (IP) code: IP20
Weight & dimensions
Size (imperial): 48.3 cm (19")
Width: 800 mm
Depth: 1000 mm
Height: 2022.6 mm
Packaging data
Feature: Nuts included
Feature: Screws included
Feature: Mounting kit
Package width: 825 mm
Package depth: 1035 mm
Package height: 2072.6 mm
Package volume: 1752150 cm³
Package weight: 124 kg
Logistics data
UK Trade Tariff code: 94032080
Country of origin: Turkey
