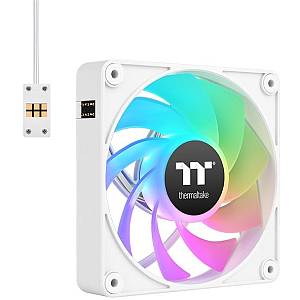

CT120 EX Reverse ARGB Sync White is a new model of the CT series incorporating the new MagForce 2.0 for a better. quicker magnetic connection among fans. This fan maintains its 2000 RPM fan speed and has broken through its series limit to provide even better cooling performance. The reversed fan blades ensure that the RGB lighting is fully visible from different airflow directions. and its 9 addressable LEDs can be controlled through motherboard sync software.

Thermaltake
CT EX Reverse Sync PC Cooling Fan

Quick Magnetic Connect in Style

Steady Connection with MagForce 2.0

Evolved from SWAFAN EX’s Magnetic Force Design. the new MagForce 2.0 has the Pogo pin contact pads are TWO times larger for greater tolerance. This enhancement significantly reduces the potential faulty alignment no matter you are daisy-chaining fans together or connecting fans with cable. further boosting the installation efficiency and streamlining the building experience.

Say Goodbye to Excessive Cables

Connect your fans with CT EX Reverse’s MagForce 2.0 Quick Connect Design and be free from messy cables!

Unlocks the Full Potential of RGB Lighting

Reversed blade fan enables airflow from rear to front while fully showing lighting effects. No more sacrificing aesthetics for your airflow direction!

Remarkably Improved Performance

After extensive research and testing. the CT120 EX Reverse ARGB Sync White can generate 65.82 CFM of airflow and 1.87 mm-H2O static pressure while maintaining a 31.2 dBA noise level. pushing ARGB fans to their limits.

Solid Structure for Better Performance

The new CT Series fan frames are crafted to be steady and robust so the fan won’t deform easily. We have also modified the exterior design to allow the fans to fit the chassis or radiator even better. so there won’t be gaps for air to slip through.

A little Surprise for Extra Security

CT Series Fans are equipped with round anti-vibration rubber pads on each of the fan’s corners. They are designed to be stable and dampen the fan’s vibration. allowing the fans to spin at a higher speeds under certain noise levels.

Spectacular Lighting Effects

Featuring 9 addressable LEDs for users to build up spectacular lighting effects through motherboard sync software. providing great coverage of 16.8 million uniform colors. You can create stunning lighting effects through your motherboard software to customize your ideal lighting effects. The CT Series ARGB Fans now support ASUS. MSI. GIGABYTE. BIOSTAR. and ASROCK sync software.

Note: This product requires motherboard sync for ARGB lighting effects

Sync with Motherboard RGB Software

Designed to synchronize with ASUS Aura Sync. GIGABYTE RGB Fusion. MSI Mystic Light Sync. and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header. allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details. please visit ASUS. GIGABYTE. MSI. and ASRock official websites.


Performance
Suitable location: Computer case
Type: Fan
Fan diameter: 12 cm
Maximum airflow: 65.82 cfm
Feature: Pulse-width modulation (PWM) support
Bearing type: Hydraulic
Fan noise level (max): 31.2 dB
Quantity per pack: 3 pc(s)
Fan speed (min): 500 RPM
Fan speed (max): 2000 RPM
Fan static pressure: 1.87 mmH2O
Fan's mean time to failure (MTTF): 40000 h
Design
Product colour: White
Feature: Illumination LED
Illumination colour: Multi
LED connector type: 3-pin
Fan connector: 4-pin
Power
Power consumption (typical): 2.28 W
Rated voltage: 12 V
Starting voltage: 5 V
Rated current: 0.19 A
Weight & dimensions
Fan dimensions (W x D x H): 120 x 25 x 120 mm
