Fanvil A308i
Product code: 14676822 // MPN: A308i // EAN: 6937295604771
New entry
Similar products

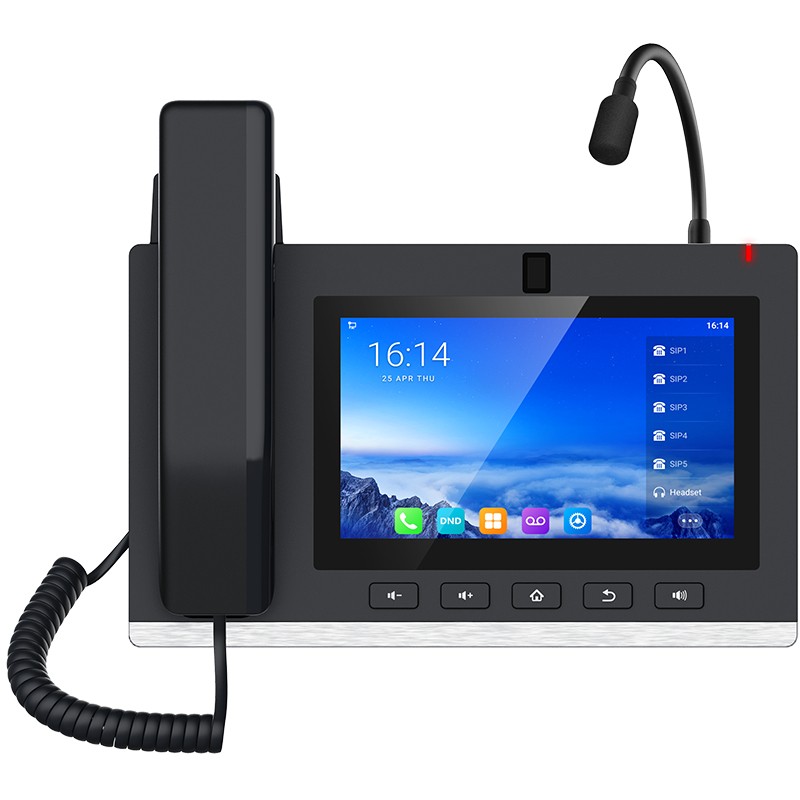

Fanvil A308i is an Android console IP phone that integrates audio and video applications. Running on Android 9.0. it supports third-party app installations. Featuring an intelligent speech algorithm and a gooseneck microphone. the A308i enables full-duplex voice calls with a maximum volume of 90dB. Its built-in 5 mega-pixel adjustable camera offers high-definition audio and video calling. Additionally. the A308i is equipped with a versatile bracket for both desktop and wall-mounted installations. accommodating various setup requirements.
Design
Product type: IP Phone
Handset type: Wired handset
Product colour: Black
Performance
Operating system installed: Android
Operating system version: 9.0
Dual-Tone Multi-Frequency (DTMF) modes: In-band. Out-of band. SIP info
Phone features
Lines quantity: 20 lines
Feature: Answering machine
Call log entries: 2000
Feature: Hot desking
Feature: Call waiting
Feature: Speed dialling
Feature: Intercom
Feature: Call hold
Feature: Caller ID
Phonebook capacity: 2000 entries
Feature: Call forwarding
Feature: Conference call
Feature: Redialing
Feature: Do not disturb function
Feature: Call park
Feature: Call pick up
Feature: Anonymous call
Feature: Full duplex
Frequency band: 2.4. 5 GHz
Feature: Call transfer
Feature: Message-waiting indicator (MWI)
Management features
Feature: Integrated voicemail
Volume control: Buttons
Meeting features: Calendar
Display
Display diagonal: 17.8 cm (7")
Display resolution: 1024 x 600 pixels
Feature: Touchscreen
Camera
Feature: Front camera
Audio
Feature: Speakerphone
Number of microphones: 1
Feature: Microphone mute
Microphone frequency: 20 - 20000 Hz
Voice codecs: G.711a. G.711u. G.722. G.729ab. VAD. iLBC
Feature: Noise reduction
Feature: Echo cancellation
Feature: Adaptive jitter buffers
Feature: Packet loss concealment (PLC)
Video
Feature: Video call
Video resolutions: 1280 x 720.1920 x 1080 pixels
Video codecs: H.264 /H.265
Video capturing speed: 30 fps
Network
Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10.100.1000 Mbit/s
Feature: Wi-Fi
Wi-Fi standards: 802.11a. 802.11b. 802.11g. Wi-Fi 4 (802.11n). Wi-Fi 5 (802.11ac)
Feature: Bluetooth
Bluetooth version: 5.0
Feature: Quality of Service (QoS) support
Feature: DHCP client
Ports & interfaces
USB 2.0 ports quantity: 1
Ethernet LAN (RJ-45) ports: 2
RJ-9 ports quantity: 2
Feature: DC-in jack
Power
Feature: Power over Ethernet (PoE)
Power consumption (typical): 7.75 W
Power consumption (Power over Ethernet (PoE)): 9.77 W
Operational conditions
Operating temperature (T-T): 0 - 45 °C
Operating relative humidity (H-H): 10 - 95%
Weight & dimensions
Width: 265 mm
Depth: 172.1 mm
Height: 145.2 mm
Packaging content
Feature: Base station
Feature: Handset
Number of handles included: 1 pc(s)
