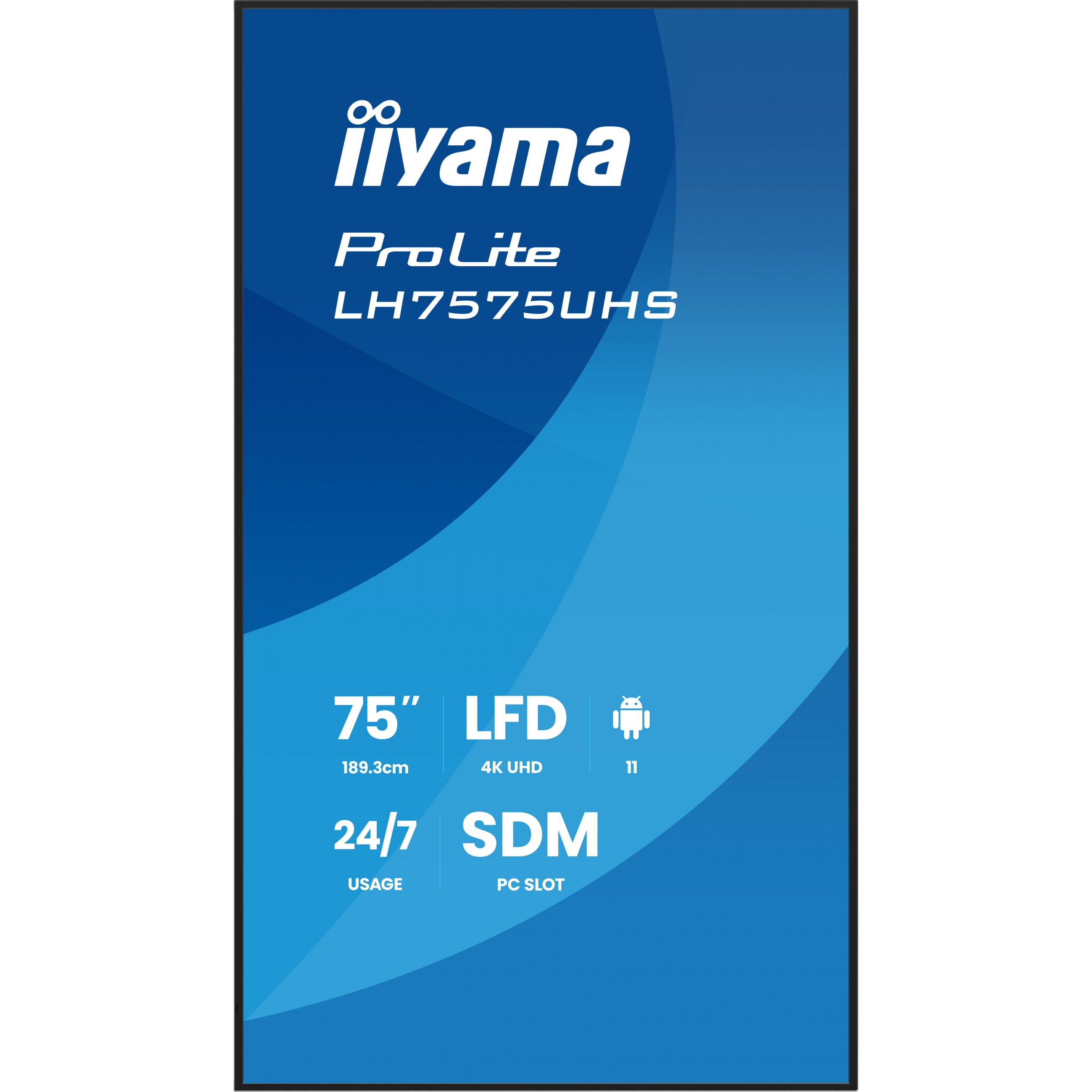

IIYAMA 189.3cm(75) LH7575UHS-B2AG 16:9 3xHDMI+DP+2xUSB (Speditionsversand)
Product code: 14421922 // MPN: LH7575UHS-B2AG // EAN: 4948570125272
New entry
Choose non-stop high performance and reliability with the ideal all-in-one signage solution for mission critical environments. The LH7575UHS from iiyama can be operated in landscape or portrait orientation in continual around the clock environments. 24/7 without any interruption. Its versatility can be adapted to your industry’s display needs. On-board Android 11 OS means you can easily customize the display to your needs and install applications directly to it. The on-board iiSignage² (Content Management System) gives you total control of your messaging and advertising remotely and safely. The SDM Slot provides embedded PC option for total flexibility. security and control. while the FailOver feature ensures your content is always actively displayed through your choice of inputs. The built-in (and removable) WiFi module means this series is ready for remote content delivery using your network. Now the display is also offering DP-Out from any input. With iiControl (DMS). iiShare and the integrated EShare app (wireless screen sharing) you bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wirelessly easier than ever before.
Display
Panel type: IPS
Display diagonal: 190.5 cm (75")
Display technology: LCD
Display resolution: 3840 x 2160 pixels
Display brightness: 500 cd/m²
HD type: 4K Ultra HD
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 1200:1
Viewing angle. horizontal: 178°
Viewing angle. vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.429 x 0.429 mm
Active display area (W x H): 1650 x 928 mm
Display diagonal (metric): 189.3 cm
Horizontal scan range: 28 - 160 kHz
Colour depth: 8 bit
Native refresh rate: 60 Hz
Haze rate: 25%
RGB colour space: NTSC
Colour gamut: 72%
Ports & interfaces
HDMI ports quantity: 3
HDMI version: 2.0
DisplayPorts quantity: 1
DisplayPorts in: 1
DisplayPorts out: 1
DisplayPort version: 1.2
Feature: USB port
USB ports quantity: 2
USB version: 2.0
Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Feature: Wi-Fi
Wi-Fi standards: Wi-Fi 5 (802.11ac)
Feature: PC Audio in
Feature: RS-232C
Remote (IR) input: 1
Remote (IR) output: 1
Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash)
Feature: Audio Return Channel (ARC)
Audio
Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 20 W
Design
Product design: Digital signage flat panel
Placement supported: Indoor
Orientation: Horizontal/Vertical
Product colour: Black
Feature: VESA mounting
Panel mounting interface: 600 x 400 mm
Bezel width (bottom): 1.52 cm
Bezel width (side): 1.5 cm
Bezel width (top): 1.52 cm
Bezel colour: Black
Feature: Anti-glare screen
Mounting type: Wall
Performance
Purpose: Universal
Feature: On Screen Display (OSD)
Number of OSD languages: 15
On Screen Display (OSD) languages: Simplified Chinese. Czech. Danish. German. Dutch. English. Spanish. Finnish. French. Italian. Japanese. Polish. Russian. Swedish
Operating hours (hours/days): 24/7
Feature: HDCP
HDCP version: 2.2
Mean time between failures (MTBF): 44000 h
Power
Power consumption (typical): 187 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
Energy efficiency class (SDR): G
Energy consumption (SDR) per 1000 hours: 187 kWh
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G
Computer system
Feature: Computer system
Feature: Built-in processor
Processor manufacturer: ARM
Processor family: ARM Cortex
Processor architecture: ARM Cortex-A53+Cortex-A73
Internal memory: 4 GB
On-board graphics card model: ARM Mali-G52
Internal storage capacity: 32 GB
Operating system installed: Android 11
Weight & dimensions
Display width: 1679.5 mm
Display depth: 55 mm
Display height: 958.5 mm
Display weight: 29.5 kg
Packaging data
Package width: 1883 mm
Package depth: 1883 mm
Package height: 1140 mm
Package weight: 41 kg
Packaging content
Feature: Remote control included
Feature: Batteries included
Cables included: AC. HDMI. RS-232
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Certificates
Certification: CB. CE. TÜV-Bauart. EAC. ErP. WEEE. REACH
Logistics data
Harmonized System (HS) code: 85285210
Technical details
Compliance certificates: RoHS
Other features
Feature: Quick start guide
Audio output: 3.5mm
Headphone connectivity: 3.5 mm
Headphone outputs: 1
Housing material: Metal
Feature: Plug and Play
