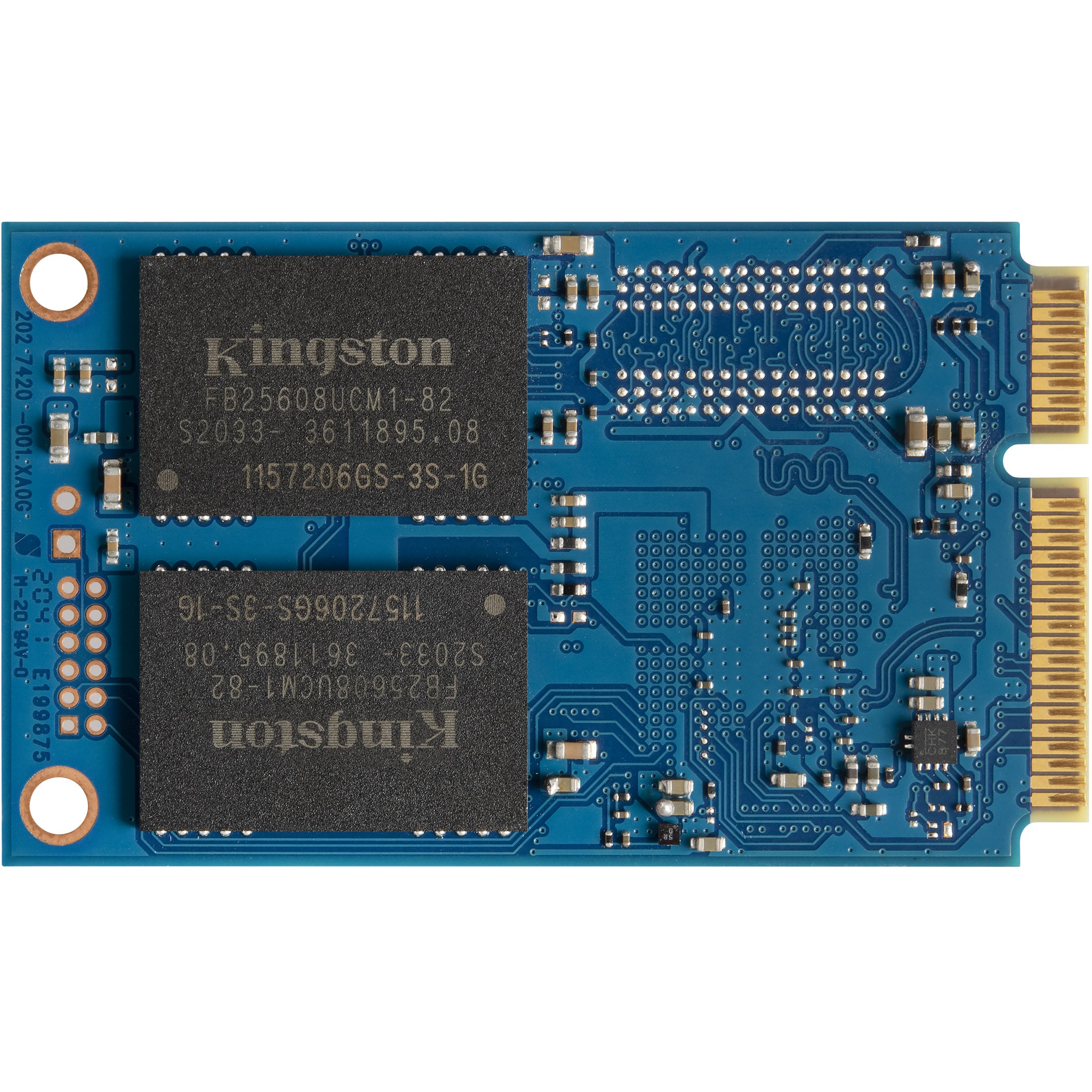

Kingston’s KC600 is a full-capacity SSD designed to provide remarkable performance and optimised to provide functional system responsiveness with incredible boot. loading and transfer times. It comes in both 2.5" and mSATA form factors using SATA Rev 3.0 interface with backwards compatibility. The KC600 utilises the latest 3D TLC NAND technology while supporting a full security suite that includes AES 256-bit hardware encryption. TCG Opal and eDrive. It features read/write speeds of up to 550/520MB/s* to efficiently store your data up to 2TB**. It’s available in a bundle kit that provides everything you need for a smooth and easy desktop and notebook installation and upgrade.

Remarkable performance
Using the latest 3D TLC NAND technology. it enables read/write speeds of up to 550/520MB/s.*

Full-security suite
Protect and secure your data with Kingston’s self-encrypting drive.

Easy installation/upgrade
KC600 is available in an upgrade bundle kit that has everything you need to install your drive easily.

Multiple capacities
KC600 is available in a range of full capacities from 256GB to 2TB.**

Features
Security algorithms: 256-bit AES-XTS
SSD capacity: 256 GB
SSD form factor: mSATA
Interface: Serial ATA III
Memory type: 3D TLC
Component for: PC/Laptop
Feature: Hardware encryption
Data transfer rate: 6 Gbit/s
Read speed: 550 MB/s
Write speed: 500 MB/s
Random read (4KB): 90000 IOPS
Random write (4KB): 80000 IOPS
Controller type: SMI SM2259
Mean time between failures (MTBF): 1000000 h
TBW rating: 150
Power
Power consumption (read): 1.2 W
Power consumption (write): 2.4 W
Power consumption (average): 0.1 W
Power consumption (idle): 0.08 W
Weight & dimensions
Width: 29.9 mm
Depth: 50.8 mm
Height: 4.85 mm
Weight: 6 g
Packaging data
Package width: 45.7 mm
Package depth: 7.62 mm
Package height: 95.2 mm
Package weight: 13.94 g
Operational conditions
Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -40 - 85 °C
Operating vibration: 2.17 G
Non-operating vibration: 20 G
Logistics data
Country of origin: China
Master (outer) case width: 104.8 mm
Master (outer) case length: 206.4 mm
Harmonized System (HS) code: 84717070
Master (outer) case height: 54 mm
Master (outer) case gross weight: 416.98 g
Products per master (outer) case: 25 pc(s)
