SCANNERS

The affordable. versatile flatbed scanner with ADF for more productivity

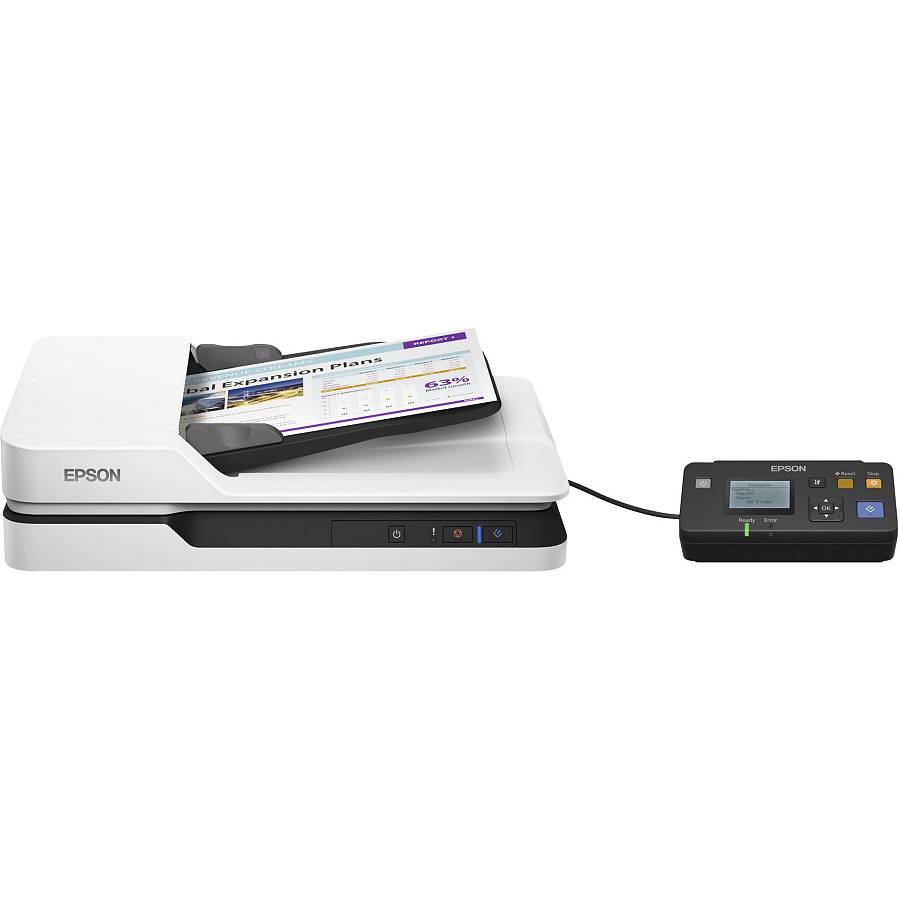

Streamline workflows and increase productivity with the DS-1630 document scanner. Combining a flatbed scanner with the convenience of a 50-page ADF. this affordable solution is ideal for virtually any task. Quickly scan stacks of documents up to 8.5" x 14". Or. use the flatbed for IDs. passports. booklets. fragile items and more. Offering speeds up to 25 ppm1. plus auto-duplexing. the DS-1630 also includes TWAIN and ISIS® drivers for seamless integration with existing document management systems. Scan to a PC. Mac® or online storage accounts2 with one touch. Plus. the included software suite features Epson Document Capture. ABBYY® FineReader®3 and Presto! BizCard® Reader.

Scan and Archive Documents
Scan important documents and save them as JPEGs or PDFs.

Automatic Two-Sided Scanning
Save time with auto-duplex scanning through the Auto Document Feeder

Amazing Quality and Detail
Get smooth gradations| sharp. grain-free images and crisp. clear text.

Automatic Document Feeder
Easily scan stacks of documents with the built-in automatic document feeder.

- Versatile scanning from a leader in image capturing technology — auto-duplex scanning through the Auto Document Feeder (ADF). plus a flatbed for photo IDs. passports. fragile items and more
- Scan stacks of documents up to 25 ppm — features a 50-page ADF
- Seamless compatibility with document management systems — includes TWAIN and ISIS drivers for easy integration with existing software
- Scan to online storage accounts — intuitively scan to Dropbox™. SharePoint®. Evernote®. FileBound and Google Drive™ and more
- Organize easily with the included software suite — features Epson Document Capture. ABBYY FineReader and Presto! BizCard Reader. for virtually any need
- Streamline your workflow — easy. one-touch scanning to folders. email. online storage accounts and more
- Scan originals in a variety of sizes — up to 8.5" x 11.7" on the flatbed and up to 8.5" x 14" using the ADF
- Generate searchable and editable files — scan to editable Word and Excel® files or searchable PDF files| OCR software included
- Intelligent color and image adjustments — auto crop. skew correction. blank page and background removal with Epson Image Processing Technology
- Send scans to any computer on your network — optional Network Interface Unit available for workgroup sharing

Scanning
Maximum scan size: 210 x 297 mm
Optical scanning resolution: 1200 x 1200 DPI
Feature: Colour scanning
Feature: Duplex scanning
Input colour depth: 30 bit
Output colour depth: 24 bit
Input greyscale depth: 10 bit
Output greyscale depth: 8 bit
ADF scan speed (b/w. A4): 25 ppm
ADF scan speed (colour. A4): 25 ppm
Duplex ADF scan speed (b/w. A4): 10 ipm
Design
Scanner type: Flatbed scanner
Product colour: Black. White
Performance
Sensor type: CIS
Light source: RGB LED
Scan file formats: JPEG. PDF. TIFF
Daily duty cycle (max): 1500 pages
Scan to: File. PC
Scan drivers: TWAIN. ISIS
Feature: Password protection
Input capacity
Auto document feeder (ADF) input capacity: 50 sheets
Paper handling
Maximum ISO A-series paper size: A4
Auto Document Feeder (ADF) media weight: 50 - 120 g/m²
Maximum scan area (ADF): 210 x 3048 mm
Minimum scan area (ADF): 89 x 127 mm
Ports & interfaces
Feature: USB port
USB version: 3.2 Gen 1 (3.1 Gen 1)
Standard interfaces: USB 3.2 Gen 1 (3.1 Gen 1)
Network
Feature: IPv6 support
Supported network protocols: TCP/IP. DHCP. DNS. SNMP. SLP
Power
Power supply type: AC
Power consumption (typical): 11 W
Power consumption (standby): 5.8 W
Power consumption (off): 0.15 W
Power consumption (PowerSave): 0.8 W
AC input frequency: 50 - 60 Hz
Input voltage: 100 - 120 V
Weight & dimensions
Width: 451 mm
Depth: 318 mm
Height: 121 mm
Weight: 3.9 kg
Packaging data
Quantity per pack: 1 pc(s)
Package width: 195 mm
Package depth: 520 mm
Package height: 405 mm
Package weight: 4.83 kg
Packaging content
Feature: Software CD
Feature: Warranty card
Cables included: AC
Feature: Quick start guide
Feature: Drivers included
Bundled software: Epson Document Capture (Mac only). Epson Document Capture Pro (Windows only). Epson Document Capture Pro Server (on free download). Epson Scan 2
System requirements
Windows operating systems supported: Windows 10. Windows 7. Windows 7 x64. Windows 8. Windows 8 x64. Windows 8.1. Windows 8.1 x64. Windows Vista. Windows Vista x64
Mac operating systems supported: Mac OS X 10.6 Snow Leopard. Mac OS X 10.7 Lion. Mac OS X 10.8 Mountain Lion. Mac OS X 10.9 Mavericks
Operational conditions
Operating temperature (T-T): 10 - 35 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 20 - 80%
Other features
Control panel: 5-line LCD with Push Scan features
Image formats supported: BMP. JPEG. TIFF
Cabling technology: 10/100/1000Base-T(X)
Compliance certificates: RoHS
Logistics data
Products per pallet: 40 pc(s)
Country of origin: Indonesia
Pallet gross weight: 0 g
Pallet gross length: 120 cm
Pallet gross width: 80 cm
Pallet gross height: 15 cm
Products per pallet layer: 8 pc(s)
Products per pallet layer (UK): 10 pc(s)
Products per pallet (UK): 50 pc(s)
Pallet weight (UK): 0 g
Pallet length (UK): 120 cm
Pallet width (UK): 100 cm
Pallet height (UK): 15 cm
Harmonized System (HS) code: 84716070
