SCANNERS

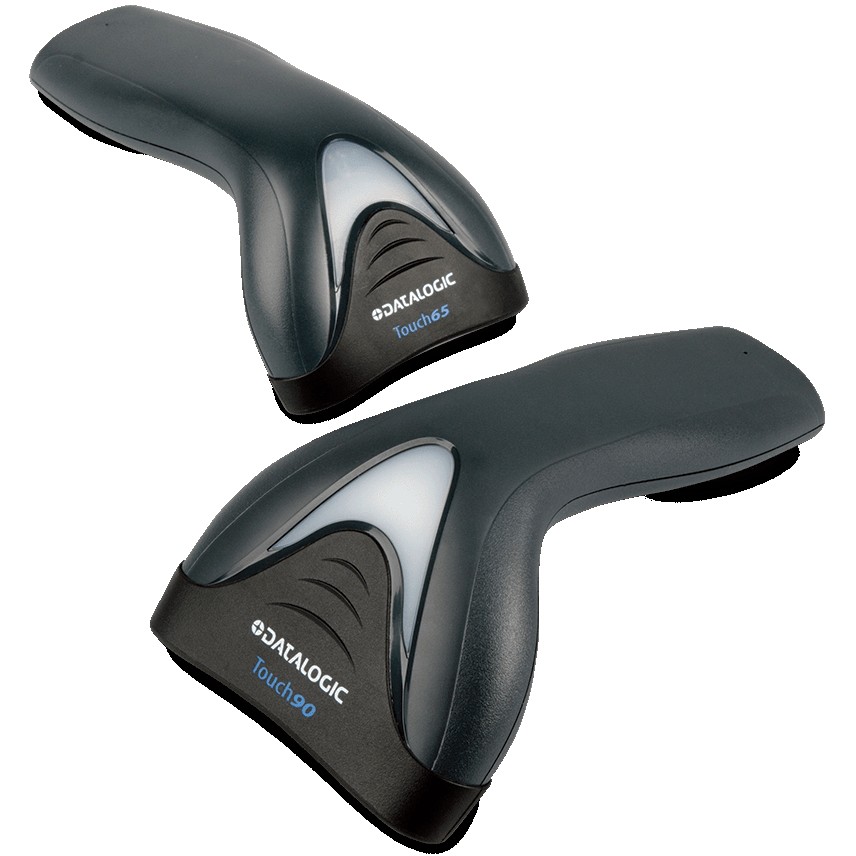

The Touch TD1100 readers are available with the option of two different sizes of reading windows: 6.5 cm / 2.6 in (TD1100-65) for reading standard bar codes or 9.0 cm / 3.5 in (TD1100-90) for reading wide bar codes. Both options are provided with a complete all-in-one multi-interface solution including RS-232. USB and Keyboard Wedge (TD1130) and with USB or RS-232 / Keyboard Wedge interfaces (TD1120/TD1170). All models include the new innovative 'read-through' holder. Cables. power cords and supplies are all sold separately.

Scanning
Working distance: 15 cm
Wavelength: 640 nm
Tilt reading angle: -45 - 45°
Pitch reading angle: -65 - 65°
Yaw reading angle: -70 - 70°
Tilt angle range: -45 - 45°
Ports & interfaces
Standard interfaces: USB
Performance
International Protection (IP) code: IP30
Feature: Buzzer
Product colour: Black
Certification: RoHS
Power
Input voltage: 5 V
Power consumption: 100 mA
Weight & dimensions
Weight: 153 g
Operational conditions
Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 5 - 95%
Logistics data
Harmonized System (HS) code: 84716070
Other features
Dimensions (WxDxH): 104 x 67 x 170 mm
