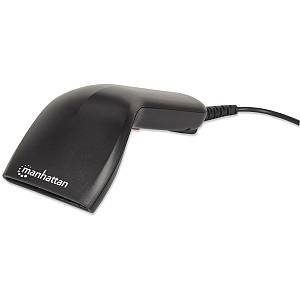

MANHATTAN Barcodescanner Kontakt CCD USB 60mm schwarz
Product code: 12065022 // MPN: 178488 // EAN: 0766623178488
Similar products
Improve speed. accuracy and productivity._x000D_
Manhattan CCD Contact Barcode Scanners deliver high-quality scanning for a wide range of data collection functions to help improve routine transactions. automate paper-based processes and increase productivity. The CCD (charged-coupled device) scan engine features no moving parts for years of reliable service reading popular barcodes. including UPC. EAN. ASCII and GS1 DataBar. Easy to implement and simple to use. a built-in keyboard wedge decoder sends scanned data to an active application. where it appears as if it were manually typed or directly keyed into the computer. Its USB cable interface integrates with most PCs without an external power supply. With a scan rate of 100 scans per second and an accurate read range of up to 60 mm (2.4 in.). this model offers a practical daily scanning solution for point-of-sale. shipping. warehousing. office and industrial applications to minimize manual data entry. speed transactions and reduce errors.
Scanning
Type: Handheld bar code reader
Scanner type: 1D
Sensor type: CCD
Linear (1D) barcodes supported: Codabar. Code 11. Code 128. Code 39. Code 93. JAN. MSI. U.P.C.
2D (matrix & stacked) barcodes supported: Not supported
Scanner resolution: 0.127 mm
Working distance: 6 cm
Read rate (max): 100 reads/s
Light levels (direct sunlight): 0 - 5000 lx
Wavelength: 632 nm
Maximum scan width: 6 cm
Ports & interfaces
Connectivity technology: Wired
Standard interfaces: Keyboard wedge. RS-232. USB
Cable length: 1.524 m
Performance
Housing material: Acrylonitrile butadiene styrene (ABS)
Product colour: Black
Certification: • FCC• CE• RoHS
Power
Input voltage: 5 V
Power consumption: 80 mA
Weight & dimensions
Width: 80 mm
Depth: 180 mm
Height: 63.5 mm
Weight: 180 g
Operational conditions
Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 20 - 95%
Technical details
Compliance certificates: RoHS
Logistics data
Harmonized System (HS) code: 84716070
