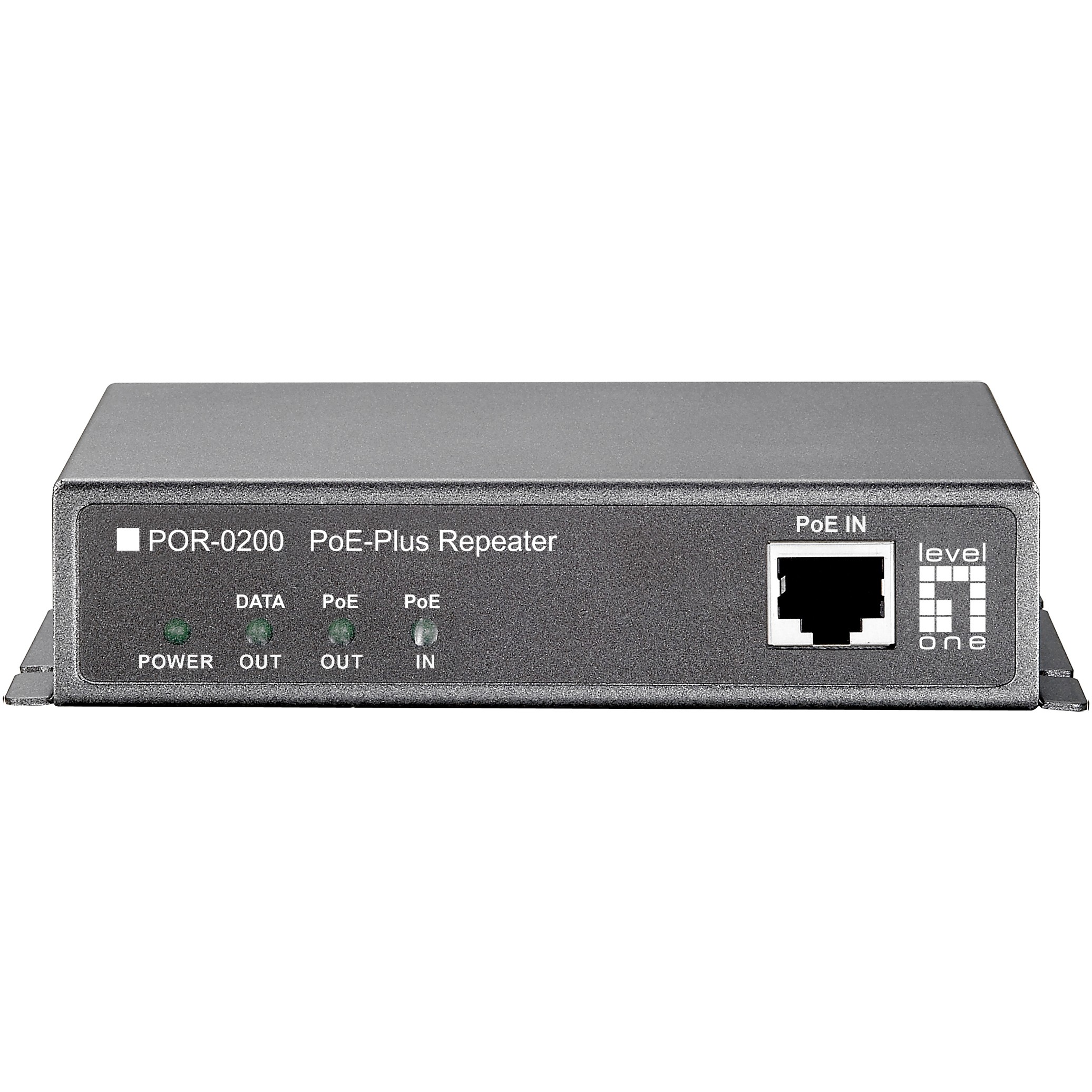

1x FE PoE-Repeater POR-0200 PoE
Product code: 11852222 // MPN: POR-0200 // EAN: 4015867185575
New entry
Similar products
New entry
Extend the reach of your PoE-Plus devices
For system integrators looking for a professional solution to help extend their PoE (802.3af/at) network. POR-0200 is the perfect accessory to increase your network performance.
Normal cable runs only reach 100 meters. but with POR-0200 installers can extend the PoE network performance up to 200 meters. Furthermore. you can triple your range or even more by daisy-chaining* multiple PoE repeaters.
* Maximum distance depends on the required Wattage of the PD.
Simple yet durable. no software required
As a PoE-Plus Repeater. POR-0200 receives all power from the Power Sending Equipment (PSE). such as a PoE-Plus switch. This means that POR-0200 uses no external power supply. making it the most flexible option for system integrators looking for an easy. affordable solution to increase the distance to the attached devices on a network. POR-0200 has 3 RJ-45 ports for easy deployment. 1 “IN” port that accepts the power and data for the first 100 meters. and 2 “OUT” ports for 1 PoE (power + data) and 1 non-PoE (data only) installation. that boosts and extends the device an additional 100 meters. With a durable metal housing. POR-0200 fits into any tight deployments.
Applications
POR-0020 is a long-ranged solution for deploying PoE IP Camera and any Fast Ethernet PoE PD powered by 802.3at PSE.
- High Power Midspan PoE compliant to simplify deployment and installation
- Built-in 2 output ports for 1 PoE and 1 non-PoE devices
- Forwards Power over Ethernet to remote device
- Extends PoE connection for another 100 meters
- Multiple PoE repeaters can be deployed by daisy chain to extend range
- Simple Plug and Play installation. no additional power supply required
Performance
Type: Network repeater
Maximum transfer distance: 200 m
Network
Cabling technology: 10/100Base-T(X)
Networking standards: IEEE 802.3. IEEE 802.3af. IEEE 802.3at. IEEE 802.3u. IEEE 802.3x
Ports & interfaces
Ethernet LAN (RJ-45) ports: 3
Power over Ethernet (PoE) ports quantity: 2
Design
Product colour: Black
Mounting type: Wall
LED indicators: PoE. Power
Country of origin: Taiwan
Certification: FCC Part 15. CE
Power
Power consumption (max): 2.5 W
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) voltage range: 44 - 57 V
Operational conditions
Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): 0 - 70 °C
Operating relative humidity (H-H): 5 - 95%
Storage relative humidity (H-H): 5 - 95%
Weight & dimensions
Width: 130 mm
Depth: 90 mm
Height: 28 mm
Weight: 400 g
Packaging content
Feature: Quick start guide
Packaging data
Package type: Box
Package width: 146 mm
Package depth: 222 mm
Package height: 78 mm
Package weight: 600 g
Certificates
Compliance certificates: RoHS
Logistics data
Harmonized System (HS) code: 85176990
For system integrators looking for a professional solution to help extend their PoE (802.3af/at) network. POR-0200 is the perfect accessory to increase your network performance.
Normal cable runs only reach 100 meters. but with POR-0200 installers can extend the PoE network performance up to 200 meters. Furthermore. you can triple your range or even more by daisy-chaining* multiple PoE repeaters.
* Maximum distance depends on the required Wattage of the PD.
Simple yet durable. no software required
As a PoE-Plus Repeater. POR-0200 receives all power from the Power Sending Equipment (PSE). such as a PoE-Plus switch. This means that POR-0200 uses no external power supply. making it the most flexible option for system integrators looking for an easy. affordable solution to increase the distance to the attached devices on a network. POR-0200 has 3 RJ-45 ports for easy deployment. 1 “IN” port that accepts the power and data for the first 100 meters. and 2 “OUT” ports for 1 PoE (power + data) and 1 non-PoE (data only) installation. that boosts and extends the device an additional 100 meters. With a durable metal housing. POR-0200 fits into any tight deployments.
Applications
POR-0020 is a long-ranged solution for deploying PoE IP Camera and any Fast Ethernet PoE PD powered by 802.3at PSE.
- High Power Midspan PoE compliant to simplify deployment and installation
- Built-in 2 output ports for 1 PoE and 1 non-PoE devices
- Forwards Power over Ethernet to remote device
- Extends PoE connection for another 100 meters
- Multiple PoE repeaters can be deployed by daisy chain to extend range
- Simple Plug and Play installation. no additional power supply required
Performance
Type: Network repeater
Maximum transfer distance: 200 m
Network
Cabling technology: 10/100Base-T(X)
Networking standards: IEEE 802.3. IEEE 802.3af. IEEE 802.3at. IEEE 802.3u. IEEE 802.3x
Ports & interfaces
Ethernet LAN (RJ-45) ports: 3
Power over Ethernet (PoE) ports quantity: 2
Design
Product colour: Black
Mounting type: Wall
LED indicators: PoE. Power
Country of origin: Taiwan
Certification: FCC Part 15. CE
Power
Power consumption (max): 2.5 W
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) voltage range: 44 - 57 V
Operational conditions
Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): 0 - 70 °C
Operating relative humidity (H-H): 5 - 95%
Storage relative humidity (H-H): 5 - 95%
Weight & dimensions
Width: 130 mm
Depth: 90 mm
Height: 28 mm
Weight: 400 g
Packaging content
Feature: Quick start guide
Packaging data
Package type: Box
Package width: 146 mm
Package depth: 222 mm
Package height: 78 mm
Package weight: 600 g
Certificates
Compliance certificates: RoHS
Logistics data
Harmonized System (HS) code: 85176990
