GIGABIT EASY
Product code: 11847122 // MPN: GO-SW-16G/E // EAN: 0790069396618
Similar products

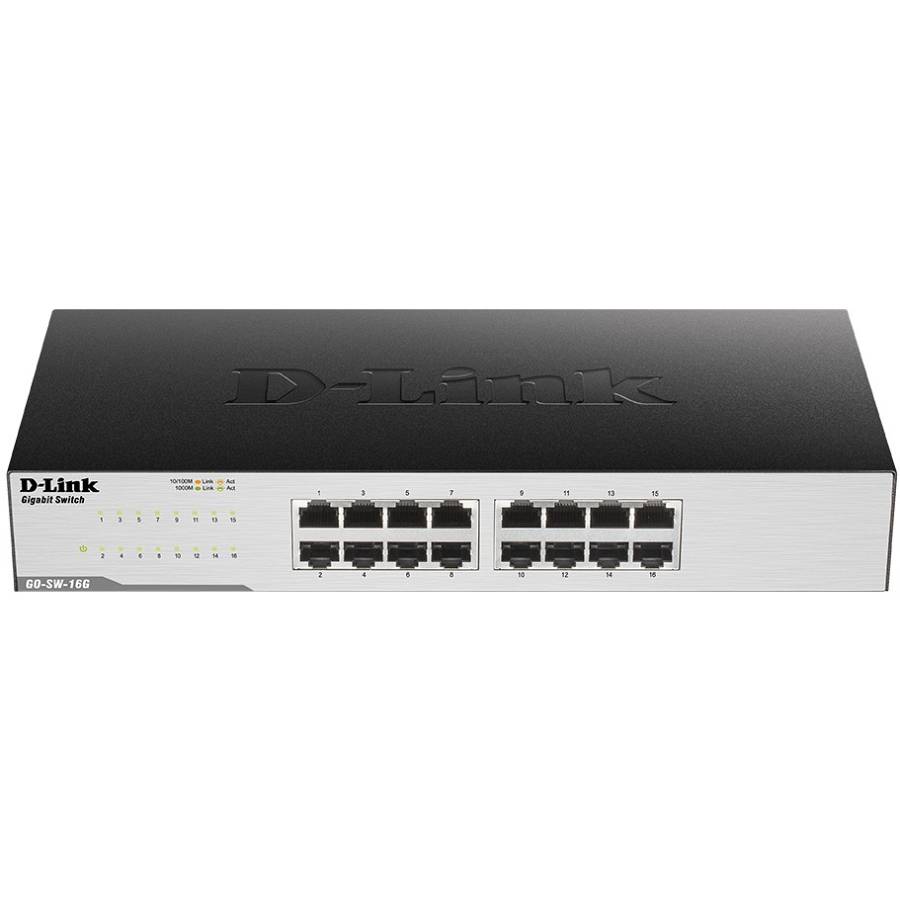

The GO-SW-16G/24G 16/24‑Port Gigabit Easy Desktop Switch is an economical. plug-and-play networking switch solution for SOHO and small and medium businesses wanting to benefit from the increased bandwidth of Gigabit Ethernet. It provides 16 or 24 10/100/1000 Mbps ports that enable you to easily expand your network and provide a quick way to upgrade your network to fast connectivity.
The GO-SW-16G/24G 16/24‑Port Gigabit Easy Desktop Switch is an economical. plug-and-play networking switch solution for SOHO and small and medium businesses wanting to benefit from the increased bandwidth of Gigabit Ethernet. It provides 16 or 24 10/100/1000 Mbps ports that enable you to easily expand your network and provide a quick way to upgrade your network to fast connectivity.
Upgrade to Gigabit Networking
With data transfer speeds of up to 2000 Mbps at full-duplex. this switch is ideal for quick file transfers. online gaming. and smooth streaming media. It features easy-to-access Ethernet ports with LED indicators per port to easily distinguish link status. Auto-MDI/MDIX crossover makes connections a cinch| just plug in your cables and you are ready to go.
Conserve Energy
The GO-SW-16G/24G supports IEEE 802.3az Energy-Efficient Ethernet. which saves energy and reduces heat automatically without sacrificing performance or functionality. The switch can detect when a connected computer is shut down or when there is no Ethernet traffic and can automatically reduce the power used for that port. cutting power usage substantially. In addition. the switch optimises power usage for each port based on the length of cable connected to it. using only as much power as is required. Both of these features work together to help you save power automatically.
Reliable Plug and Play Installation
The GO-SW-16G/24G is a plug-and-play device that requires no configuration. so setup is simple and hassle-free. and you can easily connect multiple computers. share files. music. and video across your home or small office network. or even create a multiplayer gaming environment. IEEE 802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full. giving you a more reliable connection for all of your connected devices.
Management features
Switch type: Unmanaged
Switch layer: L2
Feature: Quality of Service (QoS) support
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 16
Power connector: DC-in jack
Network
Networking standards: IEEE 802.1p. IEEE 802.3. IEEE 802.3ab. IEEE 802.3az. IEEE 802.3u. IEEE 802.3x
Copper ethernet cabling technology: 1000BASE-T. 100BASE-TX. 10BASE-T
Feature: Full duplex
Feature: Half duplex
Feature: Flow control support
Feature: Auto MDI/MDI-X
Ethernet LAN data rates: 10.100.1000 Mbit/s
Feature: Auto-negotiation
Data transmission
Switching capacity: 32 Gbit/s
Forwarding rate: 23.81 Mpps
MAC address table: 8000 entries
Feature: Store-and-forward
Number of queues: 8
Feature: Jumbo frames support
Jumbo frames: 9216
Packet buffer memory: 0.512 MB
Design
Feature: Rack mounting
Form factor: 1U
Product colour: Black
Housing material: Metal
Feature: LED indicators
Number of fans: 0 fan(s)
Performance
Mean time between failures (MTBF): 305171 h
Power
Feature: Power supply included
Number of power supply units: 1
DC input voltage: 12 V
Input current: 1 A
Power consumption (max): 11.7 W
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%
Heat dissipation: 39.92 BTU/h
Weight & dimensions
Width: 280 mm
Depth: 126 mm
Height: 44 mm
Weight: 870 g
Packaging data
Package width: 180 mm
Package depth: 328 mm
Package height: 108 mm
Package weight: 1.45 kg
Technical details
Shipping (inner) case height: 38.4 cm
Shipping (inner) case width: 34 cm
Shipping (inner) case length: 56.9 cm
Shipping (inner) case net weight: 15 kg
Products per shipping (inner) case: 10 pc(s)
Pallet gross weight (air): 491.5 kg
Master (outer) cases per pallet (air): 30 pc(s)
Products per pallet (air): 300 pc(s)
Pallet gross length: 110 cm
Pallet gross width: 120 cm
Pallet height (air): 2.06 m
Pallet gross weight (sea): 491.5 kg
Master (outer) cases per pallet (sea): 30 pc(s)
Products per pallet (sea): 300 pc(s)
Pallet height (sea): 2.06 m
Shipping (inner) case gross weight: 15.6 kg
Certificates
Certification: CE Class A. FCC Class A. VCCI Class A. BSMI. CCCUL. CB. LVD. BSMI. CCC
Logistics data
Harmonized System (HS) code: 85176990
