Z TP-Link MC210CS - Medienkonverter RJ45 -> 1000Base-LX/LH - SC
Product code: 11846322 // MPN: MC210CS // EAN: 6935364030445
Similar products
- Complies with IEEE 802.3ab and IEEE 802.3z
- Provides switch configuration of Force /Auto transfer mode for FX port.
- Extends fiber distance up to 15km

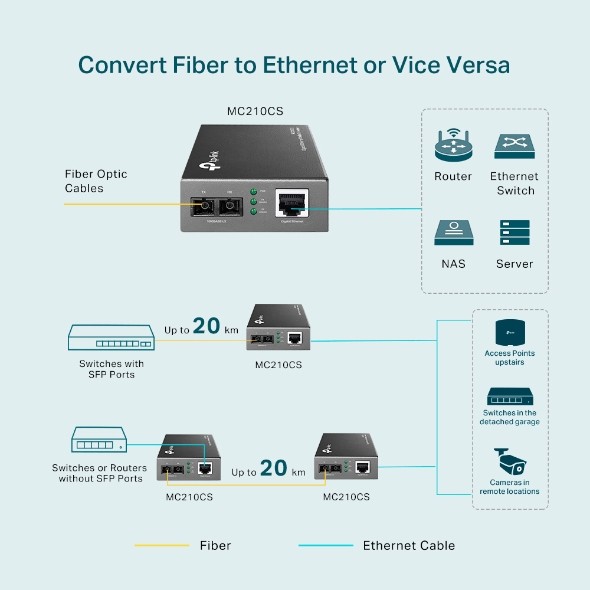

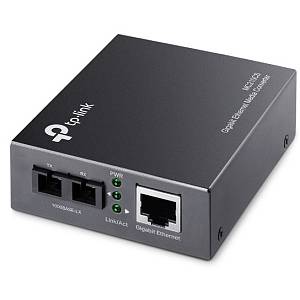

The MC210CS is a media converter designed to convert 1000BASE-LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX/LH standards. the MC210CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC210CS supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK’s 19’ system chassis. Auto MDI/MDI-X for TX port. and front panel status LEDs. The MC210CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 15 kilometers.
Network
Maximum data transfer rate: 1000 Mbit/s
Networking standards: IEEE 802.1ab. IEEE 802.3x. IEEE 802.3z
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 1000 Mbit/s
Feature: Auto MDI/MDI-X
Duplex system: Full
Cable types supported: Cat6
Performance
Maximum transfer distance: 15000 m
Wavelength: 1310 nm
Fiber mode structure: Single-mode
Features
LED indicators: Activity. Power
Product colour: Black
Ports & interfaces
Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: SC
Power
Power consumption (max): 5.5 W
Weight & dimensions
Width: 94.5 mm
Depth: 73 mm
Height: 27 mm
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Packaging data
Package width: 165 mm
Package depth: 204 mm
Package height: 65 mm
Package weight: 430 g
Certificates
Compliance certificates: RoHS
Certification: FCC. CE
- Provides switch configuration of Force /Auto transfer mode for FX port.
- Extends fiber distance up to 15km
The MC210CS is a media converter designed to convert 1000BASE-LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX/LH standards. the MC210CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC210CS supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK’s 19’ system chassis. Auto MDI/MDI-X for TX port. and front panel status LEDs. The MC210CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 15 kilometers.
Network
Maximum data transfer rate: 1000 Mbit/s
Networking standards: IEEE 802.1ab. IEEE 802.3x. IEEE 802.3z
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 1000 Mbit/s
Feature: Auto MDI/MDI-X
Duplex system: Full
Cable types supported: Cat6
Performance
Maximum transfer distance: 15000 m
Wavelength: 1310 nm
Fiber mode structure: Single-mode
Features
LED indicators: Activity. Power
Product colour: Black
Ports & interfaces
Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: SC
Power
Power consumption (max): 5.5 W
Weight & dimensions
Width: 94.5 mm
Depth: 73 mm
Height: 27 mm
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Packaging data
Package width: 165 mm
Package depth: 204 mm
Package height: 65 mm
Package weight: 430 g
Certificates
Compliance certificates: RoHS
Certification: FCC. CE
