SWITCHES

The world’s first 1G and 10G virtual chassis platform with 10G stacking designed for mid-enterprise edge and SMB core deployments. The M4300 series scales from 24x1G to 48x10G to deliver resilient. spine and leaf. edge to core connectivity for unified wired and wireless networks.

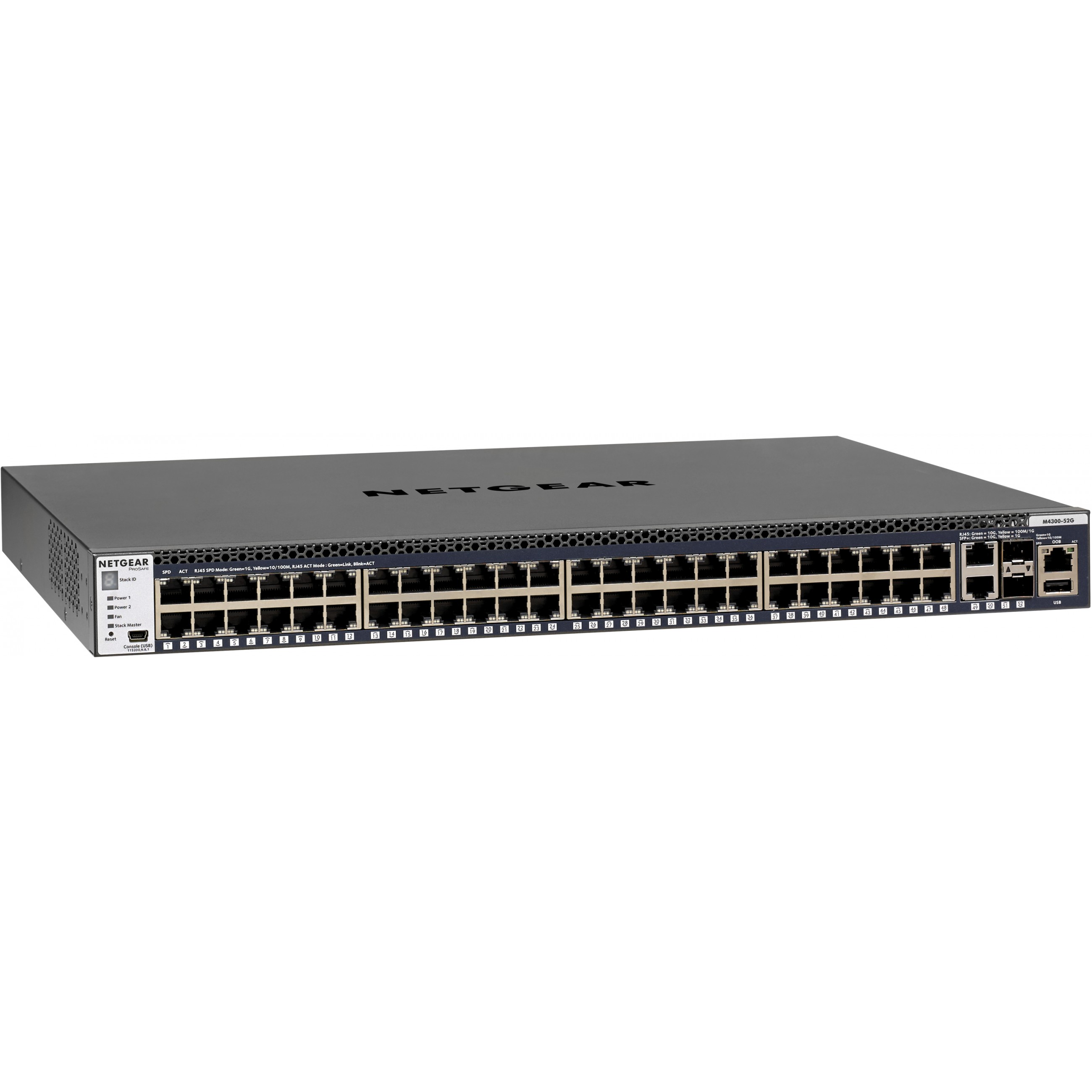

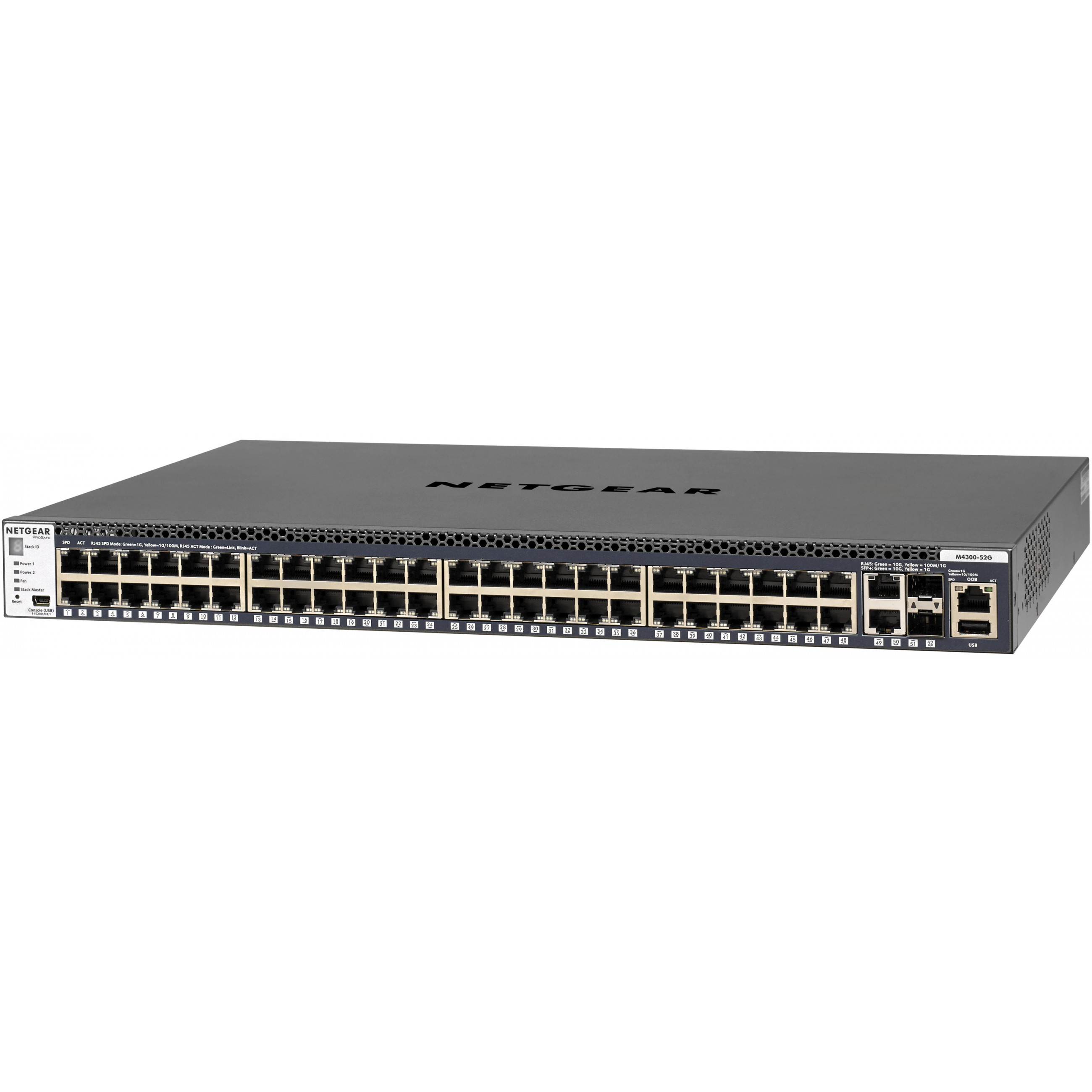

The NETGEAR M4300 Stackable Switch Series delivers L2/L3/L4 and IPv4/IPv6 cost-effective services for mid-enterprise edge with full PoE+ and SMB core deployments with unrivalled ease of use: 10 Gigabit models can seamlessly stack with 1 Gigabit models within the series. enabling spine and leaf line-rate stacking topologies. Non-stop forwarding (NSF) virtual chassis architectures provide advanced High Availability (HA) with hitless failover across the stack. Dual redundant. modular power supplies equipping full width models contribute to business continuity management. Layer 3 feature set includes static. dynamic and policy-based routing – as standard. Perfect for wireless access. unified communications and IP video. the NETGEAR M4300 Switch Series is also ready for the future. with Software-defined Network (SDN) and OpenFlow 1.3 enabled for your network.

Best-in-class stacking

- M4300 is flexible enough for mixed stacking between 10 Gigabit and 1 Gigabit models. using any 10G port with any media type (RJ45. SFP+. DAC cables)
- High-availability is another key differentiator for stackable solutions: in case of a master switch failure. NSF and hitless failover ensure the standby switch takes over while forwarding plane continues to forward traffic on the operational stack members without any service interruption

Higher flexibility

- Two half-width M4300 switches can be paired in a single rack space for redundant Top of Rack installations with Auto-iSCSI prioritization
- 10 Gigabit ports are all independent and 1G backward compatible for progressive transition to 10G speeds

Lower complexity

- Entire feature set including L2 switching (multi-tiered access control) and L3 routing (static. RIP. OSPF. VRRP. PIM. PBR) is available without license
- DHCP/BootP innovative auto-installation including firmware and configuration file upload automation

Investment protection

- Line-rate spine and leaf stacking topologies offer multiple possibilities in server rooms. in branch collapsed cores or at the edge of growing networks
- Even if an organization is not ready for SDN. OpenFlow support offers future-ready design for maximum investment protection

Secure services

- With successive tiering. the Authentication Manager allows for authentication methods per port for a tiered authentication based on configured time-outs
- With BYOD. tiered Dot1x -> MAB -> Captive Portal authentication is powerful and simple to implement with strict policies

Industry standard management

- Industry standard command line interface (CLI). functional NETGEAR web interface (GUI). SNMP. sFlow and RSPAN
- Single-pane-of-glass NMS300 management platform with centralized firmware updates and mass-configuration support

Industry leading warranty

- NETGEAR M4300 series is covered under NETGEAR ProSafe Lifetime Hardware Warranty
- 90 days of Technical Support via phone and email. Lifetime Technical Support through online chat and Lifetime Next Business Day hardware replacement

Management features
Switch type: Managed
Switch layer: L3
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 50
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 48
SFP+ module slots quantity: 2
Console port: RS-232
USB 2.0 ports quantity: 1
Power connector: DC-in jack
Network
Feature: 10G support
Data transmission
Switching capacity: 176 Gbit/s
Design
Feature: Rack mounting
Feature: Stackable
Form factor: 1U
Product colour: Grey
Power
Number of power supply units: 1
Power consumption (typical): 150 W
Weight & dimensions
Weight: 4.91 kg
Logistics data
Harmonized System (HS) code: 85176990
