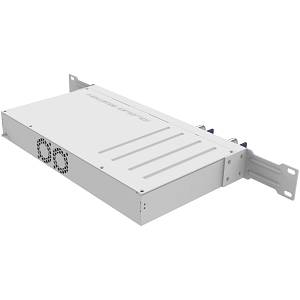

16P+4 Mikrotik CRS504-4XQ-IN QSFP28 M RM
Product code: 11813822 // MPN: CRS504-4XQ-IN // EAN: 4752224007407
New entry
Similar products
Our 100 Gigabit family keeps expanding – you’ve already seen the incredible CCR2216 100 Gigabit router. Now it’s time for a matching switch – the CRS504-4XQ-IN. The small size combined with the low power consumption (25W without attachments!) is perfect to start expanding 100 Gigabit networking in everyday setups. This speed is no longer limited to data centers. ISPs. and large offices. You too can upgrade your 10 or 25 Gigabit network and join the one hundred club!
There are four 100 Gigabit QSFP28 ports. Use them to connect other 100 Gigabit devices or grab a breakout cable to connect multiple 25 Gigabit devices: each port is connected to four 25 Gigabit lines. allowing you to connect 16 x 25 Gigabit devices. In fact. you can mix and match all kinds of connections this way: 100 Gigabits on one port. 40 Gigabits on the other. 4x25 Gigabits on the third. and maybe even some 10G or 1G cables on the fourth. The mighty Marvell DX4310 switch-chip will handle everything without breaking a sweat!
Obviously. there is an Ethernet port for management purposes as well.
We’ve been using this switch for quite some time now in the Genomics Data Network project. A high-capacity data network for our local scientists working on ground-breaking cancer treatments. Genome data can take up a lot of space. so you need exceptionally fast connections there. Also. with these devices. Latvia became the first Baltic country to establish a 100 Gigabit connection to the pan-European research network.
With multiple powering options and the ability to be mounted on the wall. this switch will make any system administrator happy.
Management features
Switch type: Managed
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 1
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Console port: RJ-45
QSFP28 ports quantity: 4
Network
Networking standards: IEEE 802.3bt
Feature: 10G support
Design
Feature: Rack mounting
Product colour: White
Feature: Reset button
Feature: LED indicators
International Protection (IP) code: IP20
Number of fans: 2 fan(s)
Performance
Operating system installed: RouterOS
Feature: Built-in processor
Processor manufacturer: Qualcomm
Processor model: Qualcomm Atheros QCA9531
Internal memory: 64 MB
Flash memory: 16 MB
Mean time between failures (MTBF): 200000 h
Power
Power source: DC
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 47/63 Hz
DC input voltage: 36 - 57 V
Input voltage: 36 - 57 V
Power consumption (max): 41 W
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity: 1
Power over Ethernet (PoE) voltage: 57 V
Operational conditions
Operating temperature (T-T): -40 - 70 °C
Weight & dimensions
Width: 320 mm
Depth: 185 mm
Height: 44 mm
Packaging content
Feature: Quick start guide
Feature: Manual
Certificates
Compliance certificates: CE. EAC. RoHS
Certification: CE. EAC. ROHS
