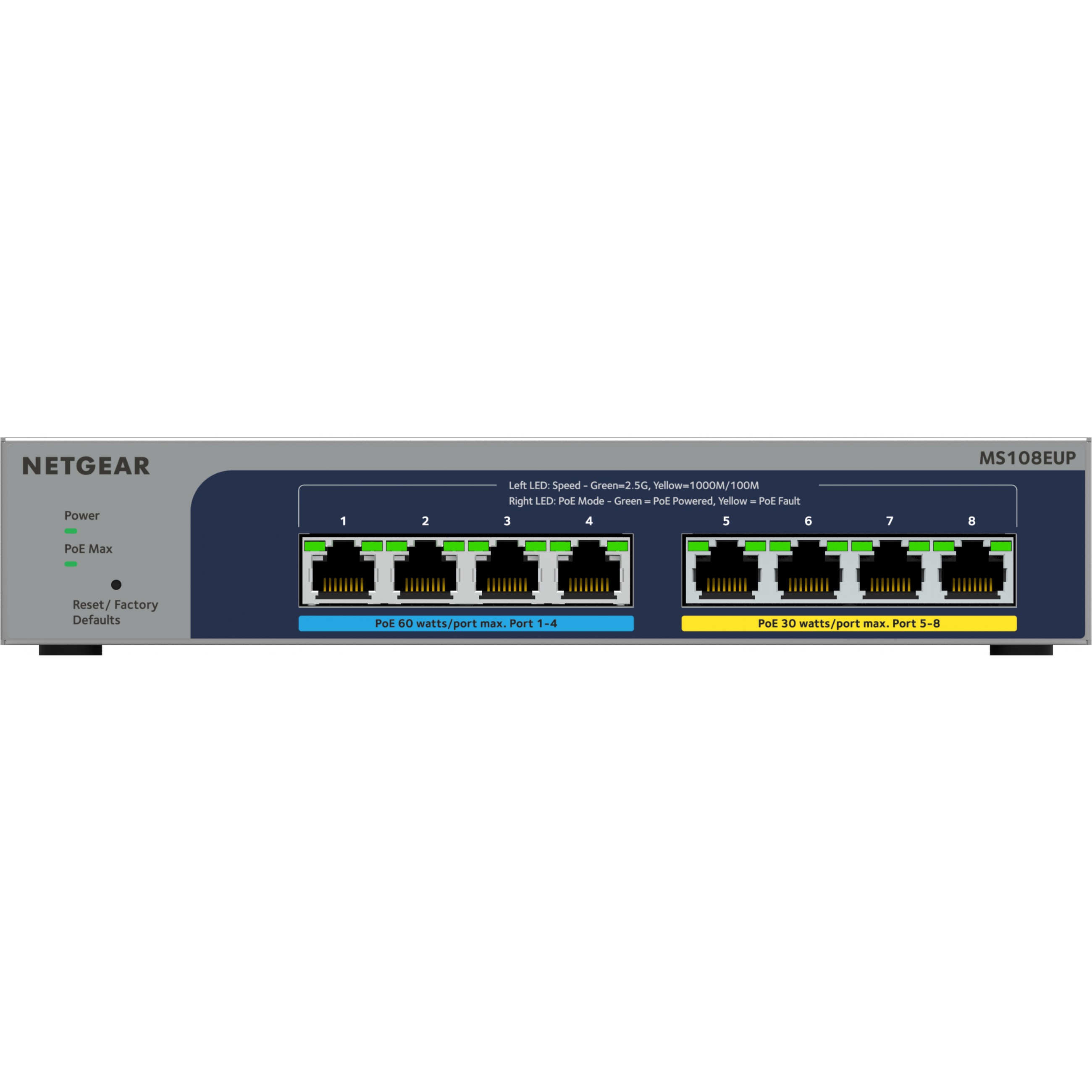

NETGEAR Switch 8x GE MS108EUP PoE++
Product code: 11761022 // MPN: MS108EUP-100EUS // EAN: 0606449156980
Similar products
Provides 8 ports 1G/2.5G with 4 PoE+ ports and 4 Ultra60 PoE++ ports making it a perfect switch for WiFi 6 AP connectivity. IP surveillance and more.
Multi-Gigabit Ethernet
8 ports provide up to 2.5 Gbps of dedicated. non-blocking bandwidth each.
PoE Support
4 Ultra60 PoE++ and 4 PoE+ ports provide a total of 230W of power so you can power and connect your devices with a single wire.
Advanced PoE Controls
Manage PoE prioritization. scheduling. power limit per port. and more for simple control over all PoE-powered devices.
Non-Blocking Switching
40Gbps (10/100/1000 Mbps) line rate fabric ensures congestion-free connectivity to your devices.
Fanless Design
Silent operation makes this switch perfect for noise-sensitive environments.
Versatile Mounting Options
Install your switch on your desktop. or mount it to your wall or rack with the hardware provided in the box.
Management features
Switch type: Managed
Switch layer: L2/L3
Feature: Quality of Service (QoS) support
Feature: Web-based management
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
Network
Networking standards: IEEE 802.1Q. IEEE 802.1p. IEEE 802.3. IEEE 802.3ab. IEEE 802.3ad. IEEE 802.3af. IEEE 802.3at. IEEE 802.3az. IEEE 802.3bt. IEEE 802.3u. IEEE 802.3x
Copper ethernet cabling technology: 100BASE-T. 1000BASE-T
Feature: Port mirroring
Feature: Full duplex
Feature: Flow control support
Feature: Link aggregation
Feature: Rate limiting
Feature: VLAN support
Virtual LAN features: Port-based VLAN. Tagged VLAN
Number of VLANs: 64
Data transmission
Switching capacity: 40 Gbit/s
MAC address table: 16000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 12000
Packet buffer memory: 1.5 MB
Security
DHCP features: DHCP client
Feature: IGMP snooping
Feature: Password protection
Queue scheduling algorithms: Strict Priority Queue (SPQ). Weighted Round Robin (WRR)
Multicast features
Feature: Multicast support
Number of multicast groups filtered: 128
Design
Product colour: Grey
Housing material: Metal
Feature: LED indicators
Performance
Mean time between failures (MTBF): 373644 h
Power
Power source: PoE
Feature: Power supply included
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 8
Total Power over Ethernet (PoE) budget: 230 W
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 0 - 90%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 3000 m
Weight & dimensions
Width: 210 mm
Depth: 140 mm
Height: 40 mm
Weight: 900 g
Certificates
Certification: CE FCC 15 BCE/EN55032/24CSAVCCIACMAKCCCCBSMI
Logistics data
Harmonized System (HS) code: 85176990
