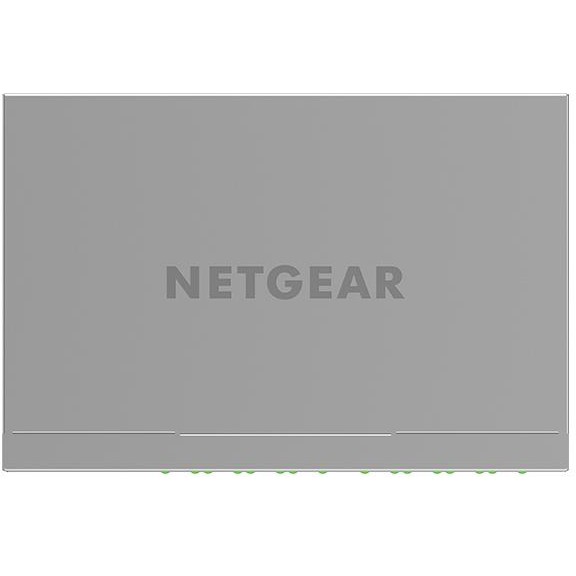

NETGEAR Switch 8x 2.5GE MS108UP-100EUS unmanaged
Product code: 11760822 // MPN: MS108UP-100EUS // EAN: 0606449156874
Similar products
NETGEAR brings the first Unmanaged
Multi-Gigabit PoE++ switch MS108UP with 60Watts per port Ultra60 PoE++ technology. ideal for powerful PoE++ installations with PoE budgets up to 230W. a compact size. plug-and-play
installation. and reliable performance at affordable prices. The new model MS108UP supports 2.5 Gigabit speed connectivity and Power-Over-Ethernet (PoE) that can provide up to 60W/port. The new switch model can power devices such as VoIP phones. surveillance IP cameras. wireless access
points and many other applications. This new Unmanaged switch provides PoE Auto-Balance to help automatically balance the PoE power based on the device needs independent of PoE class detected. With the growing deployment of applications and an allin-one solution. providing multi-speed and high power to these applications would be ideal.
Management features
Switch type: Unmanaged
Feature: Quality of Service (QoS) support
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
2.5G Ethernet (copper) ports quantity: 8
Network
Networking standards: IEEE 802.1p. IEEE 802.3. IEEE 802.3ab. IEEE 802.3af. IEEE 802.3at. IEEE 802.3az. IEEE 802.3bt. IEEE 802.3u. IEEE 802.3x
Feature: Full duplex
Feature: Half duplex
Feature: Auto MDI/MDI-X
Feature: Head-of-line (HOL) blocking
Ethernet LAN data rates: 100.1000.2500 Mbit/s
Feature: Auto-sensing
Feature: VLAN support
Number of VLANs: 64
Data transmission
Switching capacity: 40 Gbit/s
MAC address table: 16000 entries
Latency (1 Gbps): 3.593 µs
Feature: Jumbo frames support
Jumbo frames: 12000
Packet forwarding rate (1 Gbps): 1488000 pps
Packet buffer memory: 1.5 MB
Design
Housing material: Metal
LED indicators: Activity. Link. PoE. Power
Feature: Wall mountable
Number of fans: 0 fan(s)
Electromagnetic compatibility: CE. FCC part 15 Class B. ISED. VCCI. KC. CCC. BSMI. RCM
Performance
Feature: Fanless
Mean time between failures (MTBF): 373643.7 h
Power
Power source: DC
Feature: Power supply included
DC input voltage: 54 V
Input current: 4.7 A
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 8
Total Power over Ethernet (PoE) budget: 230 W
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 0 - 90%
Operating altitude: 0 - 3000 m
Heat dissipation: 923.49 BTU/h
Weight & dimensions
Width: 210 mm
Depth: 140 mm
Height: 40 mm
Weight: 900 g
Certificates
Certification: CB. CSA. CCC. BSMI. RCM
Logistics data
Harmonized System (HS) code: 85176990
