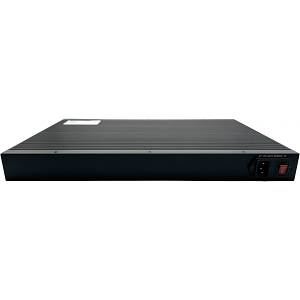

The LevelOne IGU-2872 is a rugged L2+ managed industrial Ethernet switch built for demanding environments. Designed to excel in industrial automation. it offers comprehensive Layer 2 management and rapid failover capabilities. This switch ensures uninterrupted operations with its ERPS redundant network. boasting a sub-20ms recovery time. Its wide operating temperature range. AC/DC Redundant power supply. and fanless design ensure uninterrupted operation in harsh industrial conditions. Ideal for large-scale industrial networks. the IGU-2872 provides the foundation for efficient and secure operations.

High-Density Connectivity and Flexibility
Offers comprehensive connectivity options with 16 100/1000Base-X SFP. 8x Gigabit SFP/RJ45 Combo. and 4*1G/2.5GBase-X SFP ports.

Enhanced Reliability and Performance
Ensures uninterrupted operation with redundant AC/DC power supply. advanced surge protection (6KV). and ESD protection (Air-15kV. Contact-8kV).

Delivers high availability through G.8032 ERPS protocol with <20ms recovery time.
Supports advanced Layer 2 features including VLAN. STP/RSTP/MSTP. Link Aggregation. QoS. and IGMP Snooping for optimized network performance.

Advanced Management and Security
Simplifies configuration and upgrades with USB one-key functionality.
Offers robust management options through Web. SNMP. CLI. Telnet. and SSH interfaces.
Provides enhanced security with 802.1X authentication. port isolation. and ACL.

Robust Layer 3 Capabilities
Enables advanced network routing with IPv4/IPv6 static routing and DHCP server.

Environmental Adaptability
Designed for harsh environments with fanless IP40 rack-mount enclosure and wide operating temperature range (-40°C to +80°C).


Management features
Switch type: Managed
Switch layer: L2+
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: System event log
Ports & interfaces
Combo SFP ports quantity: 8
SFP module slots quantity: 20
Console port: RJ-45
USB 2.0 ports quantity: 1
Network
Networking standards: IEEE 802.1D. IEEE 802.1Q. IEEE 802.1ab. IEEE 802.1s. IEEE 802.1x. IEEE 802.3. IEEE 802.3ab. IEEE 802.3u. IEEE 802.3x. IEEE 802.3z
Copper ethernet cabling technology: 10BASE-T. 100BASE-TX. 100BASE-X. 1000BASE-T
Feature: Port mirroring
Feature: Port trunking
Feature: Flow control support
Feature: Broadcast storm control
Feature: Rate limiting
Feature: Spanning tree protocol
Feature: Ethernet Ring Protection Switching (ERPS)
Feature: VLAN support
Virtual LAN features: MAC address-based VLAN. Protocol-based VLAN. Stacked VLAN. VLAN mapping
Data transmission
Switching capacity: 68 Gbit/s
Forwarding rate: 101.1 Mpps
MAC address table: 16000 entries
Feature: Jumbo frames support
Jumbo frames: 10000
Packet buffer memory: 12 MB
Security
Feature: Access Control List (ACL)
Security algorithms: HTTPS. SSH
Feature: MAC address filtering
Authentication: MAC-based authentication. Port-based authentication
Queue scheduling algorithms: Weighted Round Robin (WRR)
Feature: Packet filtering
MAC address entries: Dynamic MAC address entries. Static MAC address entries
Protocols
IPv4 & IPv6 features: IPv4/IPv6 access-control list (ACL)
Feature: IP Source Guard (IPSG)
Design
Feature: Rack mounting
Product colour: Black
LED indicators: Power. System. USB
International Protection (IP) code: IP40
Performance
Feature: Fanless
Mean time between failures (MTBF): 200000 h
Power
Power source: AC
Feature: Power supply included
Feature: Redundant power supply (RPS) support
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
DC input voltage: 36 - 75 V
Power consumption (max): 36 W
Feature: Surge protection
Surge protection voltage: 6 kV
Operational conditions
Operating temperature (T-T): -40 - 80 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%
Weight & dimensions
Width: 440 mm
Depth: 45 mm
Height: 280 mm
Weight: 4.14 kg
Packaging content
Cables included: AC. LAN (RJ-45)
Feature: Quick start guide
Feature: Rack mount kit
Packaging data
Feature: Terminal block included
Package width: 525 mm
Package depth: 390 mm
Package height: 95 mm
Package weight: 5.29 kg
Technical details
Master (outer) cases per pallet (air): 14 pc(s)
Pallet gross length: 80 cm
Pallet gross width: 120 cm
Pallet height (air): 177.6 cm
Certificates
Compliance certificates: CE. Federal Communications Commission (FCC). RoHS. UKCA
Logistics data
Country of origin: China
Master (outer) case width: 535 mm
Master (outer) case length: 400 mm
Master (outer) case height: 408 mm
Harmonized System (HS) code: 851762
Master (outer) case gross weight: 22.5 kg
Products per master (outer) case: 4 pc(s)
