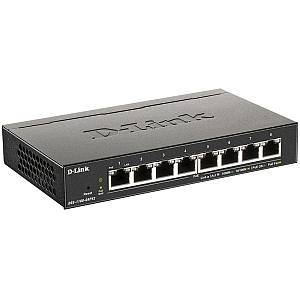

8P D-Link DGS-1100-08PV2 - Managed - L2/L3 - Gigabit Ethernet (10/100/1000) - Vollduplex - Power over Ethernet (PoE)
Product code: 11707922 // MPN: DGS-1100-08PV2/E // EAN: 0790069467813
New entry
Similar products
Powerful and flexible networking solution for small. medium. and enterprise businesses.
Simple. Easy. Smart
WebUI Web UI
Easy to use web interface to access management features.
Static Routing VLANs
Segment your network into VLANs.
Surveillance mode Surveillance Mode Interface
Get a snapshot of your security topology in an instant.
Advanced Security Features
The DGS-1100 series’ web user interface gives administrators an easy way to manage Layer 2 features. such as VLANs. Spanning Tree Protocol (STP). and link aggregation (desktop models utilize Static Trunk). With powerful security features including IGMP snooping. Static MAC. and Storm Control. these smart managed switches are a versatile solution for deployments that require easy to configure functionality without added complexities.
Simplify Network Management
D-Link’s free Network Assistant (DNA) utility displays all your connected devices and makes first-time configuration a breeze. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools.
Full PoE Support
The DGS-1100-08PV2 supports IEEE 802.3af/at Power over Ethernet on all eight copper access ports. Power over Ethernet greatly simplifies the installation of PoE-enabled devices such as VoIP phones and IP cameras in remote locations with no immediate access to a power outlet. Each individual port has capacity to support up to 30W of PoE power. while the switch has an overall budget of 64W.
Easy Troubleshooting
The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily.
Loopback Detection detects loops created by a specific port and automatically shuts down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables. recognize the cable type. and detect cable errors.
Green Technology
D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. The desktop models in the series utilize a fanless design. for silent and energy-efficient operation. All models are also IEEE 802.3az-compliant and feature Link Status detection.
Management features
Switch type: Managed
Switch layer: L2/L3
Feature: Quality of Service (QoS) support
Feature: Web-based management
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 8
Network
Networking standards: IEEE 802.1Q. IEEE 802.1p. IEEE 802.3. IEEE 802.3ab. IEEE 802.3ad. IEEE 802.3af. IEEE 802.3at. IEEE 802.3az. IEEE 802.3u
Copper ethernet cabling technology: 10BASE-T. 100BASE-TX. 1000BASE-T
Feature: Port mirroring
Feature: Full duplex
Feature: Half duplex
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Auto MDI/MDI-X
Ethernet LAN data rates: 10.100.1000 Mbit/s
Feature: VLAN support
Virtual LAN features: Port-based VLAN. Tagged VLAN. Voice VLAN
Number of VLANs: 4094
Data transmission
Switching capacity: 16 Gbit/s
Forwarding rate: 11.9 Mpps
MAC address table: 4096 entries
Number of queues: 4
Feature: Jumbo frames support
Jumbo frames: 9216
Security
Feature: IGMP snooping
Feature: Loop protection
Queue scheduling algorithms: SP. Weighted Round Robin (WRR)
Multicast features
Feature: Multicast support
Design
Product colour: Black
Feature: LED indicators
Performance
Flash memory: 2 MB
Feature: Fanless
Mean time between failures (MTBF): 786841 h
Power
Feature: Power supply included
AC input voltage: 100 - 240 V
Power consumption (max): 77.9 W
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 8
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 64 W
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 0 - 90%
Storage relative humidity (H-H): 0 - 95%
Heat dissipation: 265.85 BTU/h
Weight & dimensions
Width: 171 mm
Depth: 97.8 mm
Height: 28.6 mm
Weight: 430 g
Sustainability
Feature: Sustainability compliance
Certificates
Compliance certificates: CE. RoHS
Certification: FCC Class B. CE Class B. VCCI Class B. BSMIcUL. CE LVD. CB. BSMI
