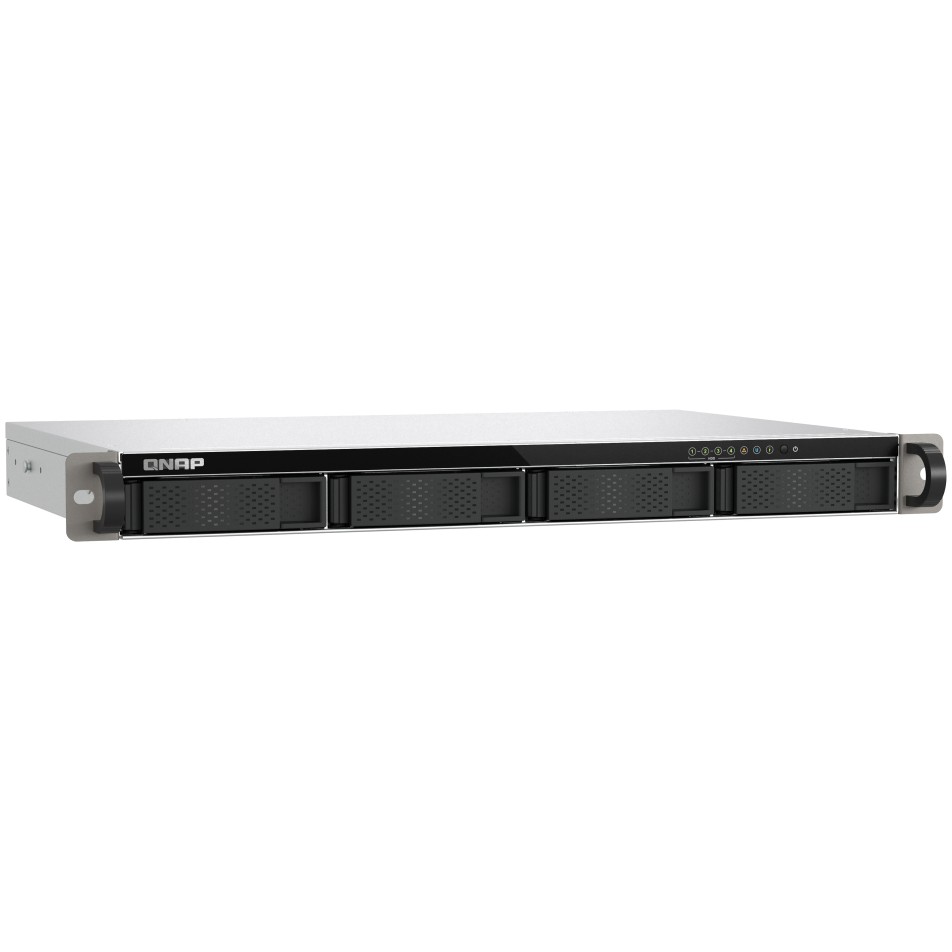

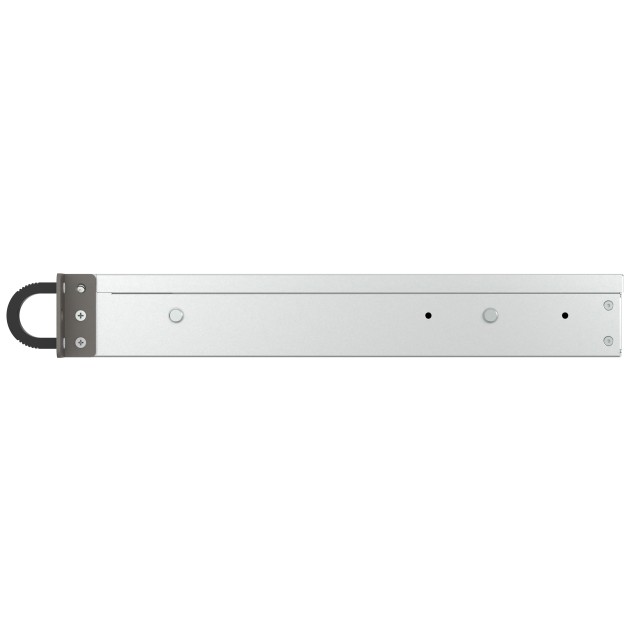

QNAP TS-433EU 4-Bay NAS ARM 2.0Ghz Quad Core 4GB 100W PSU
Product code: 11542622 // MPN: TS-433EU // EAN: 4711103085943
Similar products
The closer your data storage is. the faster you can access your data or applications! The TS-433eU with its sleek 1U short-depth rackmount design fits perfectly in tight spaces. making it ideal for flexible deployment. Deploy the TS-433eU closer to your operations to effortlessly create edge storage. and enjoy intelligent file management. secure backups. and seamless Docker container applications.
Space-saving
Flexible deployment for installation in small media cabinets or wall-mounted network racks.
Powerful yet energy-efficient
The ARM Cortex-A55 quad-core processor with 4GB RAM uses up to 80% less power than similar x86-based NAS.
AI image recognition with NPU acceleration
The built-in NPU enhances AI-powered face recognition and accelerates subject identification in QNAP’s QuMagie smart album.
Dual 2.5GbE as standard
Attain faster data transfer and backup speeds by enabling Port Trunking or SMB Multichannel.
Easy storage expansion via USB
Connect a QNAP short-depth USB JBOD TR-004U to the TS-433eU to support up to 144 TB capacity (using 24 TB HDDs in RAID 5).
Backup and snapshot protection for peace of mind
Centralize all data backups to TS-433eU and regularly create snapshots to safeguard your data against ransomware threats.
Storage
Storage drive interface: Serial ATA
Storage drive size: 2.5/3.5"
Feature: Hot-swap drive bays
Total installed storage capacity: 0 TB
Number of storage drives supported: 4
Supported storage drive types: HDD & SSD
Processor
Processor manufacturer: ARM
Processor family: Cortex-A
Processor model: Cortex-A55
Processor frequency: 2 GHz
Processor cores: 4
Processor architecture: ARM Cortex-A55
Memory
Internal memory: 4 GB
Network
Feature: Ethernet LAN
Ethernet LAN data rates: 1000.2500 Mbit/s
Feature: Wake-on-LAN ready
Ports & interfaces
Feature: USB port
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 2
Design
Chassis type: Rack (1U)
Cooling type: Active
Product colour: Black
Number of fans: 3 fan(s)
Fan diameter: 4 cm
LED indicators: HDD. LAN. Status. USB
Feature: Cable lock slot
Cable lock slot type: Kensington
Performance
Type: NAS
Device class: Small & Medium Business
Feature: Buzzer
Feature: Reset button
Feature: On/off switch
Feature: Built-in FTP server
Browser supported: Microsoft Internet Explorer 10+. Mozilla Firefox 8+. Apple Safari 4+. Google Chrome
Feature: Hot spare
Share folder: CIFS/SMB
Software
Operating system installed: QNAP Turbo System
Operating system version: 4.1
Feature: Windows operating systems supported
Feature: Linux operating systems supported
Feature: Mac operating systems supported
Power
Power supply location: Built-in
Power supply unit (PSU) capacity: 60 W
Number of power supply units: 1
Power consumption (typical): 23.74 W
Power consumption (sleep): 9.32 W
AC input voltage: 100-240 V
Fan voltage: 12 V
Weight & dimensions
Width: 430 mm
Depth: 292.3 mm
Height: 292.3 mm
Weight: 4.01 kg
Package weight: 5.9 kg
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 5 - 95%
Storage temperature (T-T): -20 - 70 °C
