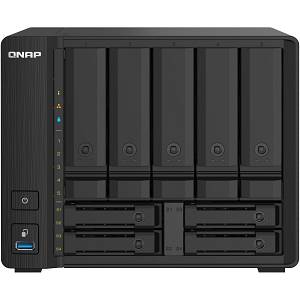

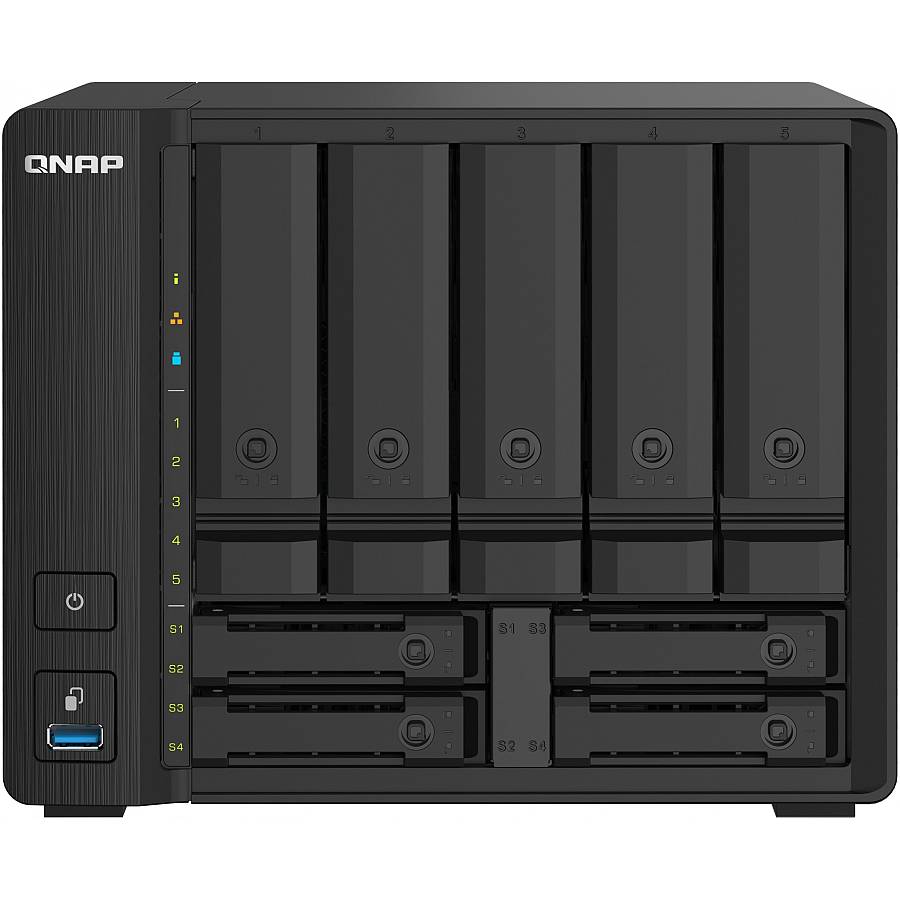

QNAP TS-932PX-4G 9-Bay NAS AL324 4GB DDR4 SODIMM 5x8.89cm 3.5Zoll 4x6.35cm 2.5Zoll drive slots 2x10GbE SFP+ LAN 2x2.5GbE LAN
Product code: 11535422 // MPN: TS-932PX-4G // EAN: 4713213517963
Similar products
Energy-efficient Quad-core Processor
Powered by 64-bit quad-core 1.7GHz ARM Cortex-A57 processor and 4 GB DDR4 RAM (expandable to 16 GB). the TS-932PX features is highly energy efficient without impacting system or application performance.
High-speed 10GbE and 2.5GbE connectivity
The TS-932PX includes two 10GbE SFP+ and two 2.5GbE LAN RJ45 ports. providing out-of-the-box support for high-speed networking and supporting Port Trunking and Failover to reinforce your network infrastructure. QNAP also provide many other high-speed networking solutions. including 10GbE/2.5GbE managed/unmanaged switches and network adapters. allowing you to build a budget-friendly high-speed network environment.
Boost NAS performance with 2.5-inch SATA SSDs
SSDs can greatly improve NAS performance without requiring a heavy investment. The TS-932PX supports SSD cache technology. Qtier™ auto-tiering. and SSD over-provisioning. helping you to balance storage performance. storage allocation. and IT expenses.
Protect Important Data with Snapshots
Snapshots fully record the NAS system state and metadata and can be used to quickly restore files to previously-recorded states if they are accidentally deleted/modified or if the system is compromised by ransomware. QNAP snapshots are block-based and only record modified data. Not only does this save storage space. but also reduces the time required to back up and restore data. The TS-932PX supports up to 256 snapshots per NAS and up to 64 snapshots per volume or LUN.
Multi-Point File Backup. Access. and Sync
The TS-932PX supports common file sharing protocols (including SMB/CIFS. AFP and NFS) for Windows®. Mac®. and Linux®/UNIX® devices. Coupled with Qsync (a utility that transforms a QNAP NAS into a secure. high-capacity data center for file synchronization) any file uploaded to the TS-932PX becomes available for all linked devices (such as computers. laptops. and mobile devices). Hybrid Backup Sync helps you easily backup or synchronize data on the TS-932PX to another QNAP NAS. remote server. or cloud storage (including Microsoft One Drive®. Google Drive™. and Dropbox®) for disaster recovery.
Smart AI Photo Management
QuMagie integrates QuMagie Core AI image recognition technology for facial recognition. subject identification. and geotagging photos. Similar photos are categorized into People. Places. and Things albums. QuMagie also features a built-in timeline scroll. customizable folder covers. iOS® Live Photo display and a powerful search tool. to provide you with the ultimate photo management and image sharing solution.
Low-latency Access to Cloud Data with Cloud Storage Gateways
By deploying cloud storage gateways and enabling local caching on the TS-932PX. you can seamlessly use the cloud for storage. backup. and data recovery with low-latency access. providing an innovative hybrid cloud experience.
HybridMount File-Based Cloud Gateway
Flexibly expand your storage capacity by connecting to cloud storage. You can leverage QTS apps to manage and edit your cloud files or monitor multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.
VJBOD Cloud Block-Based Cloud Gateway
VJBOD Cloud supports backing up NAS data to block-based cloud storage. Block-based data transmission uploads random data and large files to the cloud in blocks. and only block-based volume or LUN changes are transmitted. This is ideal for backing up LUN. databases. and confidential files.
Easily find and automatically organize files
The TS-932PX provides greater convenience for managing files. You can quickly find files using Qsirch and auto-archive them with Qfiling.
File search
Qsirch quickly finds images. music. videos. documents. emails. and other files by using keywords. colors and different filters.
Auto archiving
Qfiling automates file organization or recycling based on self-configured rules. greatly improving work efficiency.
Secure remote access to your QNAP NAS
Use myQNAPcloud Link to access. share. download. and manage files stored on an HQ-based NAS via the Internet. QNAP NAS also supports VPN services for remote workers to access the NAS and resources on a private network from the Internet. You can also use QVPN Device Client powered by QNAP's proprietary QBelt protocol to easily connect to your TS-932PX and use measurement tools to know the speed of your VPN connections and connection history.
Flexible and economical storage expansion
QNAP provides several ways to expand the storage capacity of the TS-932PX to accommodate data growth:
Upgrade RAID Capacity
Hot-swap lower-capacity drives with larger-capacity drives to expand the TS-932PX.
Attach Expansion Enclosures
Connect two expansion enclosures (4-bay TR-004. 2-bay TR-002) or one 8-bay TL-D800C JBOD and use the Storage & Snapshots Manager to handle NAS capacity expansion.
Migrate to a New NAS
Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.
Multiply Your Productivity
QVR Pro
Build a secure surveillance environment without any extra software needed. Provides free embedded channels and you can also purchase QVR Pro licenses to deploy a large-scale surveillance network.
Notification Center
Consolidates all QTS system events. alerts. and notifications for easy NAS management. keeping you always informed of your NAS status.
Security Counselor
A security portal for checking weaknesses and providing recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.
Storage
Storage drive capacity: 0 GB
Supported storage drive interfaces: Serial ATA. Serial ATA II. Serial ATA III
Storage drive sizes supported: 2.5.3.5"
Feature: RAID support
RAID levels: 0. 1. 5. 6. 10. 50. 60. JBOD
Feature: Online RAID migration
Feature: Online RAID expansion
Feature: RAID rebuild
Feature: Hot-swap drive bays
Supported file systems: FAT32. HFS+. NTFS. ext3. ext4
Total installed storage capacity: 0 TB
Number of storage drives supported: 9
Supported storage drive types: HDD & SSD
Feature: Bad block scan
Feature: Disk roaming
Processor
Processor manufacturer: Annapurna Labs
Processor family: Annapurna Labs
Processor model: Alpine AL-324
Processor frequency: 1.7 GHz
Processor cores: 4
Processor architecture: ARM Cortex-A57
Memory
Internal memory: 4 GB
Internal memory type: DDR4
Maximum RAM supported: 16 GB
Memory slots: 1
Memory form factor: SO-DIMM
Flash memory: 512 MB
Network
Feature: Ethernet LAN
Ethernet LAN data rates: 100.1000.2500.10000 Mbit/s
Ethernet LAN data rate supported (max): 10000 Mbit/s
Feature: DHCP client
Feature: DHCP server
Feature: Jumbo frames support
Feature: iSCSI support
Feature: Wake-on-LAN ready
Supported network protocols: FTP. SFTP. TFTP. ec. OpenVPN. QBelt
Feature: Link aggregation
Feature: Load balancing system
Feature: Dynamic DNS (DDNS)
Feature: WLAN adapter supported
Ports & interfaces
Feature: USB port
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
Fiber ports quantity: 2
Fiber optic connector: SFP+
Ethernet LAN (RJ-45) ports: 2
Concurrent connections: 700
Design
Chassis type: Tower
Cooling type: Active
Product colour: Black
Number of fans: 1 fan(s)
Fan diameter: 14 cm
LED indicators: HDD. LAN. SSD. Status. USB
Feature: Cable lock slot
Cable lock slot type: Kensington
Performance
Type: NAS
Device class: Small & Medium Business
Feature: Backup function
Backup features: Cloud. iSCSI LUN
Feature: Buzzer
Feature: Multilingual support
Noise level: 18.6 dB
Feature: Snapshot
Feature: Web-based management
Security algorithms: 256-bit AES. FIPS 140-2. HTTPS. SNMPv2. SNMPv3. SSH. SSL/TLS
Feature: Access Control List (ACL)
Feature: Reset button
Feature: On/off switch
Feature: Built-in FTP server
Browser supported: Apple Safari 7+. Google Chrome. Microsoft Internet Explorer 10+. Mozilla Firefox
Feature: System log
Feature: Hot spare
Feature: S.M.A.R.T. support
Share folder: CIFS/SMB
Feature: USB copy function
Software
Operating system installed: QNAP Turbo System
Operating system version: 5.0.0
Windows operating systems supported: Windows 10. Windows 7. Windows 8
Feature: Linux operating systems supported
Mac operating systems supported: Mac OS X 10.10 Yosemite. Mac OS X 10.11 El Capitan. Mac OS X 10.12 Sierra. Mac OS X 10.13 High Sierra. Mac OS X 10.14 Mojave. Mac OS X 10.15 Catalina
Server operating systems supported: Windows Server 2008 R2. Windows Server 2012. Windows Server 2012 R2. Windows Server 2016. Windows Server 2019
Power
Power supply location: External
Power supply unit (PSU) capacity: 120 W
Number of power supply units: 1
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Fan voltage: 12 V
Weight & dimensions
Width: 224.6 mm
Depth: 224.1 mm
Height: 182.7 mm
Weight: 3.39 kg
Packaging content
Feature: External power adapter
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 5 - 95%
Storage temperature (T-T): -20 - 70 °C
Logistics data
Harmonized System (HS) code: 84714100
