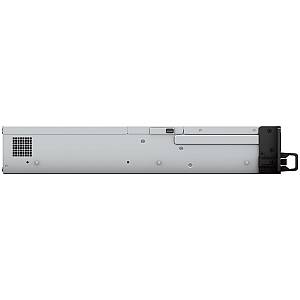

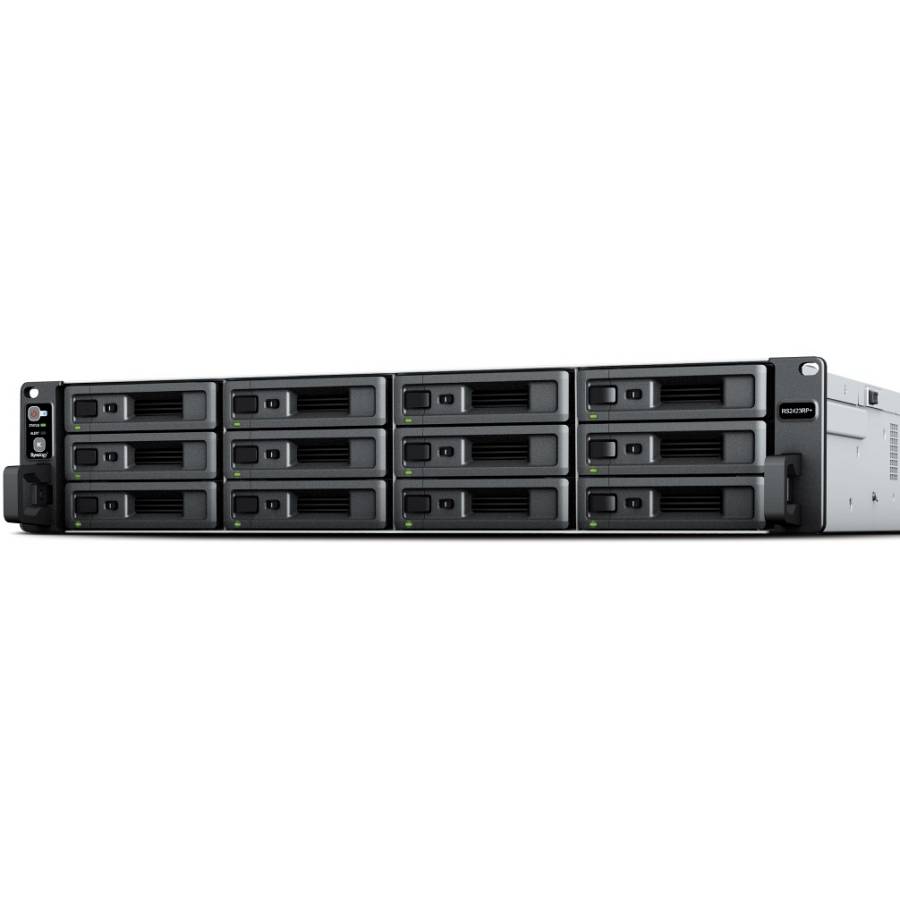

12-Bay Synology RackStation RS2423+
Product code: 11522022 // MPN: RS2423+ // EAN: 4711174724895
Similar products
Secure storage for your business
Business-ready
Over 3.500/1.700 MB/s seq. read/write. built-in 10GbE. and up to 216 TB raw storage before expansion.
Flexible configuration
Add 12 extra drive bays. 1/10/25GbE ports. and SSD cache volumes whenever needed.
Versatile applications
Back up 300 endpoints. manage 50 IP cameras. or safely sync and share files between devices and sites.
Faster and more responsive
The RS2423+/RS2423RP+ offer exceptional performance with over 155K/79K random read/write IOPS and up to 3.500/1.700 MB/s sequential read/write throughput.1 They are the perfect cost-effective file management and sharing solution for SMBs and come equipped with advanced backup capabilities designed for businesses with expanding data needs.
Designed for reliability
The RS2423+ and RS2423RP+ come with one 10GbE RJ-45 port and two Gigabit RJ-45 ports. which can be bonded with Link Aggregation to enable automatic network failover and load balancing.
Two RS2423+/RS2423RP+ units can be paired using Synology High Availability to form a reliable active-passive server cluster. maximizing service uptime.
The RS2423RP+ also features redundant and hot-swappable power supply units to protect service continuity in case there are issues with one power source.
Room for expansion
Easily adjust the 2U 12-bay RS2423+/RS2423RP+ to match the usage of your environment. whether it needs performance. faster networking. or higher storage capacity.
Versatile storage for businesses
The RS2423+/RS2423RP+ are ideal for small to medium-sized businesses and branch offices seeking a high-performing. reliable. and cost-efficient storage solution for file management. data backup. and surveillance.
Intuitive storage for on-site and remote teams
Provide secure and convenient cross-platform file access. sharing. and synchronization across multiple locations.
Enable efficient collaboration with Synology Drive
Synology Drive provides remote data access. synchronization. on-demand file restoration. and backup via handy desktop and mobile applications.
Multi-platform support
Access personal and shared data from mobile apps. desktop clients. web browsers. or another Synology system. Any changes you make are automatically synced to other devices as soon as they are connected.
Collaborate in real time
Enable concurrent editing of documents. spreadsheets. and slides with Synology Office. with support for conversion to and from Microsoft Word. Excel. PowerPoint. and OpenDocument files.
Connect teams with Hybrid Share
Use Hybrid Share to store large sets of data in the cloud. leveraging the large bandwidth of our data centers to stream requested files to local NAS deployed at the branch offices.
Reliable data access on demand
With Hybrid Share-enabled folders. remote teams retain full access to the most up-to-date files while benefiting from a reduced local storage footprint and lower bandwidth usage.
Local caching of most-used data
Frequently-accessed files are kept on the local NAS. allowing users to access them at LAN speeds. Files and folders can also be pinned manually to prevent them from being replaced when the cache is full.
Design an effective backup strategy to maximize data and system availability with a host of native and license-free solutions.
Endpoint. VM. and NAS/SAN protection
Securely back up Windows. Mac. and Linux endpoints. Synology servers. and VMware® and Hyper-V® virtual machines with Active Backup for Business.
Microsoft 365 and Google Workspace
Centralize backups of Microsoft 365 and Google Workspace data to protect cloud data from accidents and simplify compliance with data retention policies. Schedulable backups. flexible file versioning. and block-level deduplication ensure flexibility and savings in terms of storage and bandwidth consumption.
Hyper Backup
Back up files. LUNs. installed applications. and system configurations to destinations including Synology C2 Storage.5public cloud platforms. USB devices. file servers. local folders. and other Synology systems.
Set and forget backup tasks with regular schedules. enhance security with granular user permissions and encryption. keep backup sizes small with built-in deduplication. and restore data flexibly with multi-versioning.
Snapshot Replication
Snapshot Replication enables configurable point-in-time snapshots of shared folders and VM storage with an RPO as low as 5 minutes and recovery within seconds.
Smart and scalable surveillance
Leverage flexible deployment options. intuitive management capabilities. and advanced video analytics to secure your premises.
Wide device compatibility
Connect up to 50 IP cameras from a selection of over 8.300 validated models thanks to Synology Surveillance Station’s wide camera compatibility.
Multi-platform convenience
Monitor live streams or watch recordings from web browsers. desktop clients. or the DS cam mobile app.
Secure and private storage
Footage is stored locally for easier compliance with data protection regulations and further protected from unauthorized access with industry-standard AES-256 encryption.
Assisted camera deployment
Automatically locate new cameras within a set IP range. and configure units in batch via spreadsheet import or replicating settings to new cameras.
Centralized management and monitoring
Stay on top of your deployment by previewing triggered events directly on multi-floor or multi-location maps. with online map integration for Google Maps and OpenStreetMap.
Time-saving video analytics
Take advantage of intelligent monitoring features such as motion detection. no-idle zones. foreign object detection. and anomaly detection that cater to common surveillance scenarios.
Flexible monitoring of multiple locations
Works best with Synology drives
Enjoy high sustained performance and reliability with enterprise-grade drives designed for Synology NAS. featuring built-in data protection.
Works best with Synology drives
Take advantage of a host of native productivity. management. and security solutions available in the web-based Synology DSM operating system.
Central Management System
Conveniently manage your fleet of Synology NAS from a centralized console.
Security
Shield your Synology NAS from the most sophisticated threats with industry-leading security solutions.
Synology High Availability
Real-time system-level protection with automatic failover mechanism to maximize service availability.
Get extra protection with Extended Warranty Plus
Extend the standard 3-year hardware warranty8 of your RS2423(RP)+ with 2 more years of Synology-certified support and premium services that help you recover faster in the event of disaster.
Storage
Supported storage drive interfaces: Serial ATA
Storage drive sizes supported: 2.5.3.5"
Feature: RAID support
RAID levels: 0. 1. 5. 6. 10. JBOD
Feature: Online RAID migration
Feature: Online RAID expansion
Feature: Hot-swap drive bays
Supported file systems: BTRFS. Fat. HFS+. NTFS. exFAT. ext3. ext4
Total installed storage capacity: 0 TB
Number of storage drives supported: 12
Supported storage drive types: HDD & SSD
Processor
Processor manufacturer: AMD
Processor generation: AMD Ryzen Embedded V1000 Series
Processor family: Ryzen Embedded
Processor model: V1780B
Processor frequency: 3.35 GHz
Processor boost frequency: 3.6 GHz
Processor cores: 4
Number of processors supported: 1
Memory
Internal memory: 8 GB
Internal memory type: DDR4
Maximum RAM supported: 32 GB
Memory slots: 2
Memory form factor: UDIMM
Feature: ECC
Network
Feature: Ethernet LAN
Ethernet LAN data rates: 10.100.1000.10000 Mbit/s
Ethernet LAN data rate supported (max): 10000 Mbit/s
Copper ethernet cabling technology: 10BASE-T. 10GBASE-T. 100BASE-TX. 1000BASE-T
Feature: iSCSI support
Feature: Wake-on-LAN ready
Feature: Link aggregation
Ports & interfaces
Feature: USB port
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 3
PCI Express x8 (Gen 3.x) slots: 1
Design
Chassis type: Rack (2U)
Cooling type: Active
Product colour: Black. Grey
Number of fans: 3 fan(s)
Fan diameter: 6 cm
Feature: LED indicators
Performance
Type: NAS
Device class: Small & Medium Business
Feature: Backup function
Backup features: Cloud. iSCSI LUN
Feature: Multilingual support
Noise level: 52.3 dB
Feature: Snapshot
Management protocols: SNMP
Security algorithms: AES
Feature: Access Control List (ACL)
Feature: Built-in FTP server
Browser supported: Google Chrome Firefox Microsoft Edge Safari
Feature: System log
Software
Operating system installed: DiskStation Manager
Operating system version: 7.1.1
Power
Power supply location: Built-in
Power supply unit (PSU) capacity: 500 W
Number of power supply units: 1
Power consumption (typical): 119.95 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Weight & dimensions
Width: 482 mm
Depth: 562 mm
Height: 88 mm
Weight: 11.5 kg
Packaging content
Cables included: AC
Power cables quantity: 1
Feature: Rack mount kit
Sustainability
Feature: Sustainability compliance
Operational conditions
Operating temperature (T-T): 0 - 35 °C
Operating relative humidity (H-H): 5 - 95%
Storage temperature (T-T): -20 - 60 °C
Other features
Compliance certificates: CE. RoHS
Certification: FCCBSMIVCCIRCMUKCAEACCCCKCUL
