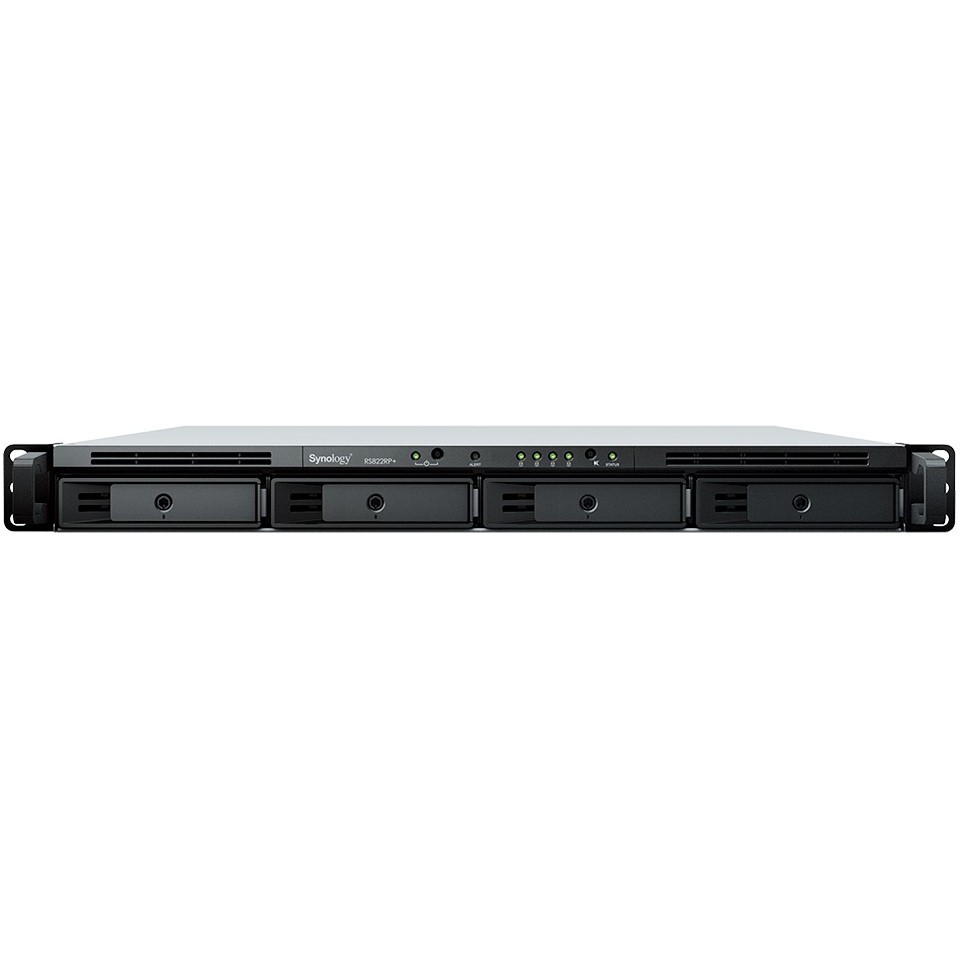

4-Bay Synology RackStation RS822+
Product code: 11520722 // MPN: RS822RP+ // EAN: 4711174724758
Similar products
An all-in-one edge storage solution
The compact 1U 4-bay Synology RackStation RS822+/RS822RP+ with its storage and connectivity expandability coupled with the powerful Synology DiskStation Manager (DSM) operating system is an ideal edge storage solution for branch offices and small and medium-sized businesses.
Built for reliability
RS822+/RS822RP+ comes with four Gigabit RJ-45 ports which can be bonded with Link Aggregation to enable automatic network failover and load balancing.
Two RS822+/RS822RP+ units can be paired using Synology High Availability to form a reliable active/passive server cluster. maximizing service uptime.
Furthermore. the RS822RP+ features a redundant power supply for an extra edge in service continuity.
Room for expansion
Easily adjust the RS822+/RS822RP+ to match your usage environment. whether it needs performance. faster networking. or higher storage capacity.
All-in-one data management platform
The RS822+/RS822RP+ is designed to support small deployments in tackling common applications such as file management. data backup. and surveillance.
Edge storage for distributed teams
Provide secure and convenient cross-platform file access. sharing. and synchronization across multiplelocations.
Multi-endpoint data protection
Design an effective backup strategy to maximize system availability with a host of native and license-free solutions.
Smart surveillance for small deployments
Leverage flexible deployment options. intuitive management capabilities. and advanced video analytics to secure your premises.
Works best with Synology drives
Enjoy high sustained performance and reliability with enterprise-grade drives designed for Synology NAS and featuring built-in data protection.
Powered by Synology DSM
Take advantage of a whole host of native productivity. management. and security solutions available on the web-based DSM operating system.
Storage
Supported storage drive interfaces: Serial ATA II. Serial ATA III
Storage drive sizes supported: 2.5.3.5"
Feature: RAID support
RAID levels: 0. 1. 5. 6. 10. JBOD
Feature: Online RAID migration
Feature: Online RAID expansion
Feature: Hot-swap drive bays
Supported file systems: BTRFS. FAT32. HFS+. NTFS. exFAT. ext3. ext4
Total installed storage capacity: 0 TB
Number of storage drives supported: 4
Supported storage drive types: HDD & SSD
Processor
Processor manufacturer: AMD
Processor generation: AMD Ryzen Embedded V1000 Series
Processor family: Ryzen Embedded
Processor model: V1500B
Processor frequency: 2.2 GHz
Processor cores: 4
Processor threads: 8
L2 cache: 2 MB
L3 cache: 4 MB
Number of processors supported: 1
On-board graphics card model: Not available
Memory
Internal memory: 2 GB
Internal memory type: DDR4
Maximum RAM supported: 32 GB
Memory slots: 2
Memory form factor: SO-DIMM
Feature: ECC
Network
Feature: Ethernet LAN
Ethernet LAN data rates: 1000 Mbit/s
Feature: iSCSI support
Feature: Wake-on-LAN ready
Supported network protocols: SMB1 (CIFS). SMB2. SMB3. NFSv3. NFSv4. NFSv4.1. NFS Kerberized sessions. iSCSI. HTTP. HTTPs. FTP. SNMP. LDAP. CalDAV
Feature: Link aggregation
Feature: WLAN adapter supported
Ports & interfaces
Feature: USB port
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
eSATA ports quantity: 1
Ethernet LAN (RJ-45) ports: 4
Concurrent connections: 500
PCI Express x8 (Gen 3.x) slots: 1
Design
Chassis type: Rack (1U)
Cooling type: Active
Product colour: Grey
Number of fans: 2 fan(s)
Fan diameter: 4 cm
Feature: Drive bay locking
LED indicators: Alarm. HDD. Power. Status
Performance
Type: NAS
Device class: Small & Medium Business
Feature: Backup function
Backup features: Cloud. iSCSI LUN
Feature: Multilingual support
Number of users: 2048 user(s)
Noise level: 38.8 dB
Feature: Third-party support
Feature: Snapshot
Security algorithms: HTTPS. SSH. SSL/TLS
Feature: Access Control List (ACL)
Feature: Reset button
Feature: On/off switch
Feature: Built-in iTunes server
Feature: Built-in FTP server
Browser supported: Google Chrome. Firefox. Microsoft Edge. Safari
Feature: System log
Feature: Hot spare
Share folder: SMB/AFP/NFS/FTP/WebDAV
Software
Operating system installed: DiskStation Manager
Feature: Windows operating systems supported
Feature: Linux operating systems supported
Feature: Mac operating systems supported
Power
Power supply location: Built-in
Power supply unit (PSU) capacity: 150 W
Feature: Redundant power supply (RPS) support
Power consumption (typical): 47.69 W
Power consumption (HDD standby): 16.7 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Weight & dimensions
Width: 480 mm
Depth: 518.6 mm
Height: 44 mm
Weight: 8 kg
Packaging content
Cables included: AC
Power cables quantity: 2
Operational conditions
Operating temperature (T-T): 0 - 35 °C
Operating relative humidity (H-H): 8 - 80%
Storage temperature (T-T): -20 - 60 °C
Storage relative humidity (H-H): 5 - 95%
Operating altitude: 0 - 5000 m
Other features
Compliance certificates: RoHS
Certification: FCC CE BSMI VCCI RCM UKCA EAC CCC KC UL
