VIDEO CONFERENCING

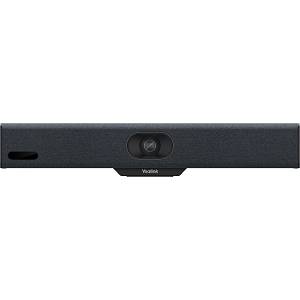

Yealink MeetingBar A10 is an all-ine-one video bar deisgned for small space (1-7 people) and home office. The built-in 4k camera with 120° field of view catches details precisely. with great color. AI-powered features including Auto Framing. Speaker Tracking and Smart Gallary deliver a focused view without distraction. The built-in 8-MEMS beamforming microphones pick up voice from all directions. and a full-duplex audio algorithm with AI-enhanced noise cancellation delivers clear sound for both sides clearly even if you are talking at the same time.

Performance
Number of cameras: 1
Feature: Bluetooth
Bluetooth version: 4.2
Product colour: Black. Grey
Feature: Auto framing
Feature: Auto-tracking
Tracking modes: Presenter mode
Meeting features: Add participates. Calendar. Content sharing. Hold/Resume. One-click join
Product type: Video collaboration bar
Feature: Wall mountable
Feature: PTZ control
Video
HD type: 4K Ultra HD
Maximum video resolution: 3840 x 2160 pixels
Maximum frame rate: 30 fps
Video codecs: H.264 High profile. H.264 SVC. H.264
Audio
Feature: Built-in speaker(s)
Feature: Audio system full duplex
Feature: Echo cancellation
Speaker power: 5 W
Ports & interfaces
HDMI output ports quantity: 1
USB connector type: USB Type-A. USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
Feature: DC-in jack
Feature: Line-in
Feature: Line-out
Feature: Microphone in
Feature: Reset slot
Network
Feature: Ethernet LAN
Ethernet LAN data rates: 10.100.1000 Mbit/s
Feature: Wi-Fi
Security algorithms: 256-bit AES. EAP-TLS. MSCHAPv2. PEAP. TLS
Camera
Camera type: Single camera
Horizontal field of view: 105°
Diagonal field of view: 120°
Auto Focus (AF) object detection: People
Remote control interface: Ethernet
Feature: Camera privacy shutter
Microphone
Microphone sensitivity: 88 dB
Feature: Microphone mute
Number of microphone arrays: 8
Features
Feature: Motion sensor
Feature: Cable lock slot
Computer system
Operating system installed: Android 10
Mobile operating systems supported: Android 11.0
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 95%
Storage temperature (T-T): -30 - 70 °C
Power
Power source type: AC
AC input voltage: 100 - 240 V
DC output voltage: 48 V
DC output current: 0.7 A
Power consumption (typical): 10.5 W
Power consumption (max): 14 W
Power consumption (idle): 10 W
Certificates
Certification: CE. FCC. RoHS. REACH. ISO 9001. CCC. NOM
Weight & dimensions
Width: 380 mm
Depth: 68 mm
Height: 82 mm
Packaging content
Cables included: HDMI. LAN (RJ-45)
Networking cable length: 3 m
HDMI cable length: 1.8 m
Feature: AC adapter included
Feature: Remote control included
Feature: Quick start guide
