INTEL

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly. PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

FROZR AI COOLING
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design. your motherboards can support the weight of heavy graphics cards.

Processor
Processor manufacturer: Intel
Processor socket: LGA 1700
Compatible processor series: Intel® Core™ i9
Supported processor sockets: LGA 1700
Memory
Supported memory types: DDR4-SDRAM
Number of memory slots: 2
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speeds: 2133.2666.2933.3200 MHz
Maximum internal memory: 64 GB
Storage controllers
Supported storage drive types: SSD
Supported storage drive interfaces: M.2. SATA III
Graphics
Parallel processing technology support: Not supported
DirectX version: 12.0
Internal I/O
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of SATA III connectors: 4
Feature: Front panel audio connector
Feature: ATX Power connector (24-pin)
Feature: CPU fan connector
Feature: TPM connector
Feature: 12V power connector

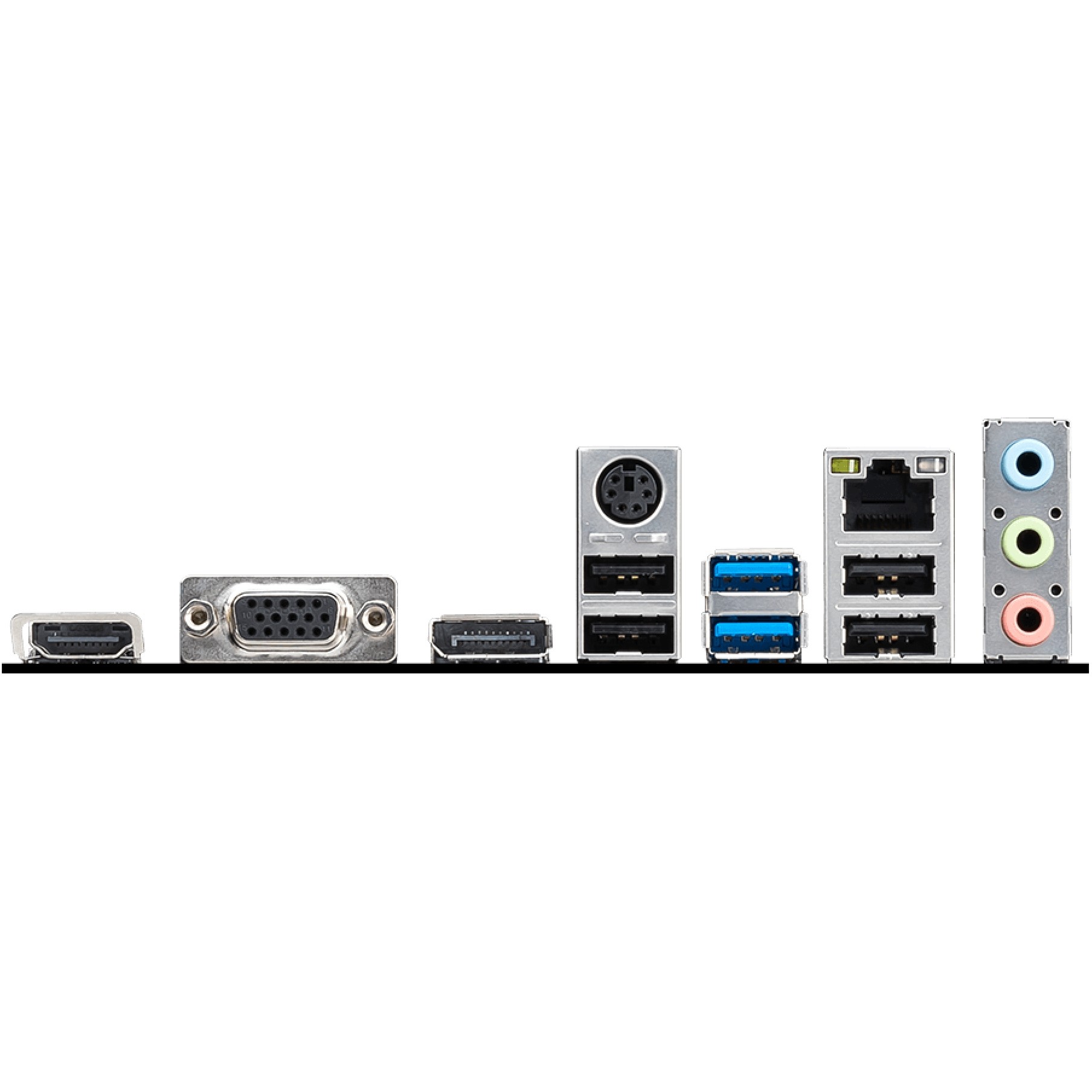

Rear panel I/O ports
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1
DisplayPorts quantity: 1
Network
Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
Features
Motherboard chipset: Intel H610
Audio chip: Realtek ALC897
Audio output channels: 7.1 channels
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Windows operating systems supported: Windows 10. Windows 11
BIOS
BIOS type: UEFI AMI
Logistics data
Harmonized System (HS) code: 84733020
Weight & dimensions
Width: 211 mm
Depth: 244 mm
Height: 65 mm
Packaging content
Cables included: SATA
Feature: Drivers included
Other features
Weight: 764 g
