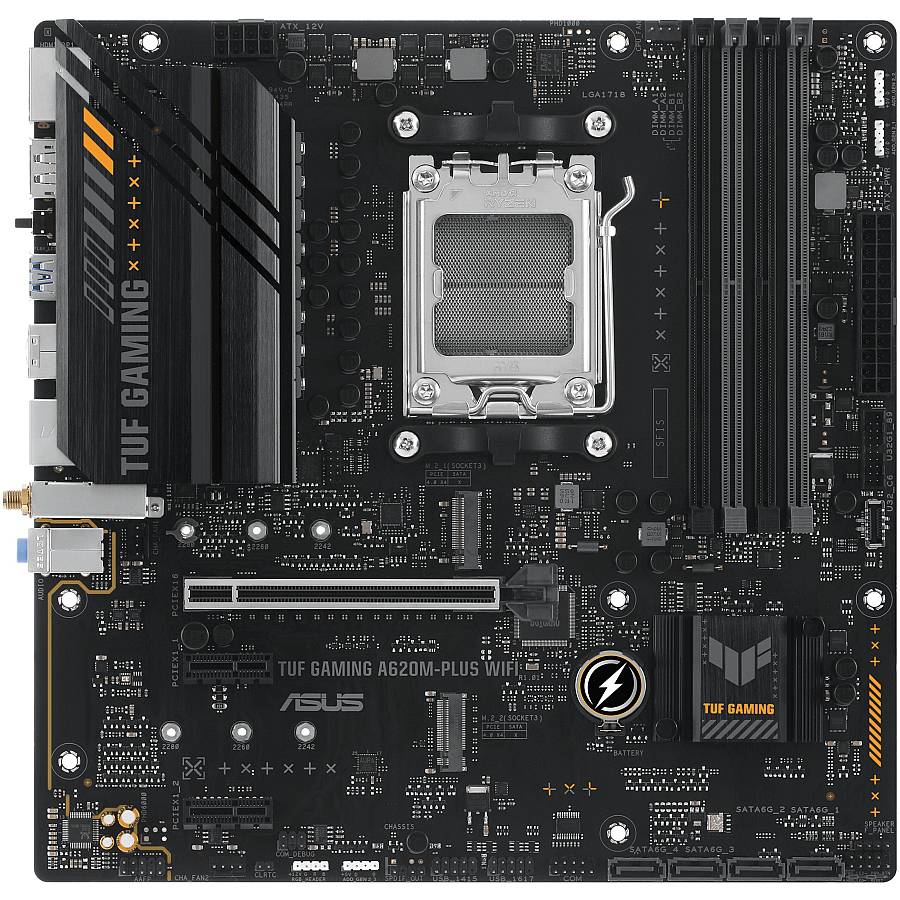

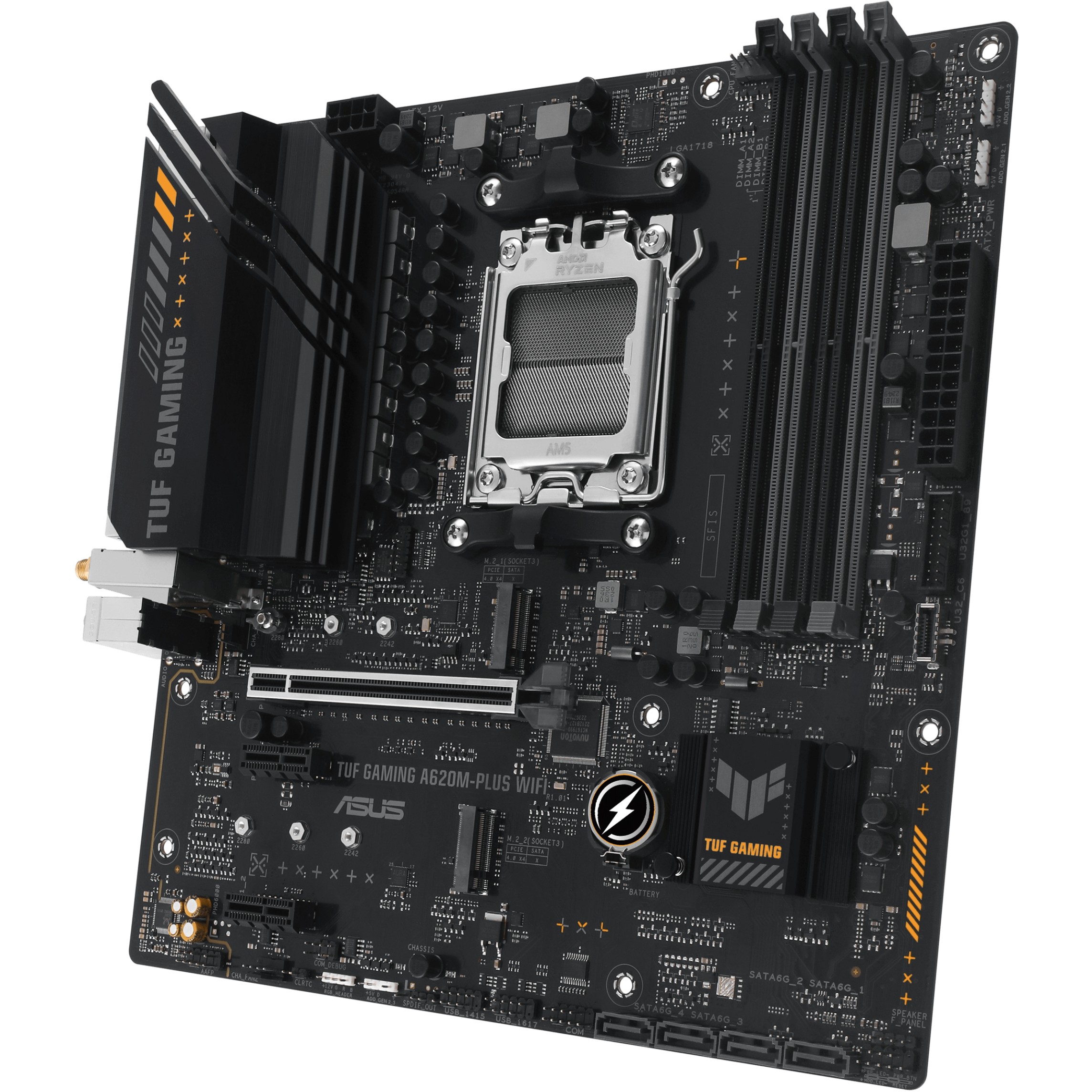

MB ASUS TUF GAMING A620M-PLUS WIFI (AMD.AM5.DDR5.mATX)
Product code: 11161722 // MPN: 90MB1F00-M0EAY0 // EAN: 4711387164266
Similar products
Processor
Processor manufacturer: AMD
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series
Memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory channels: Dual-channel
ECC сompatibility: ECC & Non-ECC
Supported memory clock speeds: 4800.5000.5200.5400.5600.5800.6000.6200.6400 MHz
Maximum internal memory: 128 GB
Feature: Unbuffered memory
Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2. SATA III
Number of HDDs supported: 4
Number of storage drives supported: 6
Feature: RAID support
RAID levels: 0. 1. 10
Internal I/O
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of SATA III connectors: 4
Feature: S/PDIF out connector
Feature: Front panel audio connector
Feature: ATX Power connector (24-pin)
Feature: CPU fan connector
Number of chassis fan connectors: 2
Feature: EPS power connector (8-pin)
Number of COM connectors: 1
Feature: 12V power connector
Feature: RGB LED pin header
Rear panel I/O ports
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
HDMI ports quantity: 1
DisplayPorts quantity: 2
Headphone outputs: 1
Feature: Microphone in
Network
Feature: Ethernet LAN
Ethernet interface type: 2.5 Gigabit Ethernet. Fast Ethernet. Gigabit Ethernet
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi standards: 802.11a. 802.11b. 802.11g. Wi-Fi 4 (802.11n). Wi-Fi 5 (802.11ac). Wi-Fi 6 (802.11ax)
Feature: Bluetooth
Bluetooth version: 5.3
Features
Motherboard chipset: AMD A620
Audio output channels: 7.1 channels
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Cooling type: Passive
Windows operating systems supported: Windows 10 x64. Windows 11
Expansion slots
PCI Express x1 (Gen 3.x) slots: 2
Number of M.2 (M) slots: 2
BIOS
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Packaging data
Package width: 275 mm
Package depth: 275 mm
Package height: 67.5 mm
Package weight: 920 g
Weight & dimensions
Width: 244 mm
Depth: 244 mm
Height: 50 mm
Other features
Weight: 800 g
