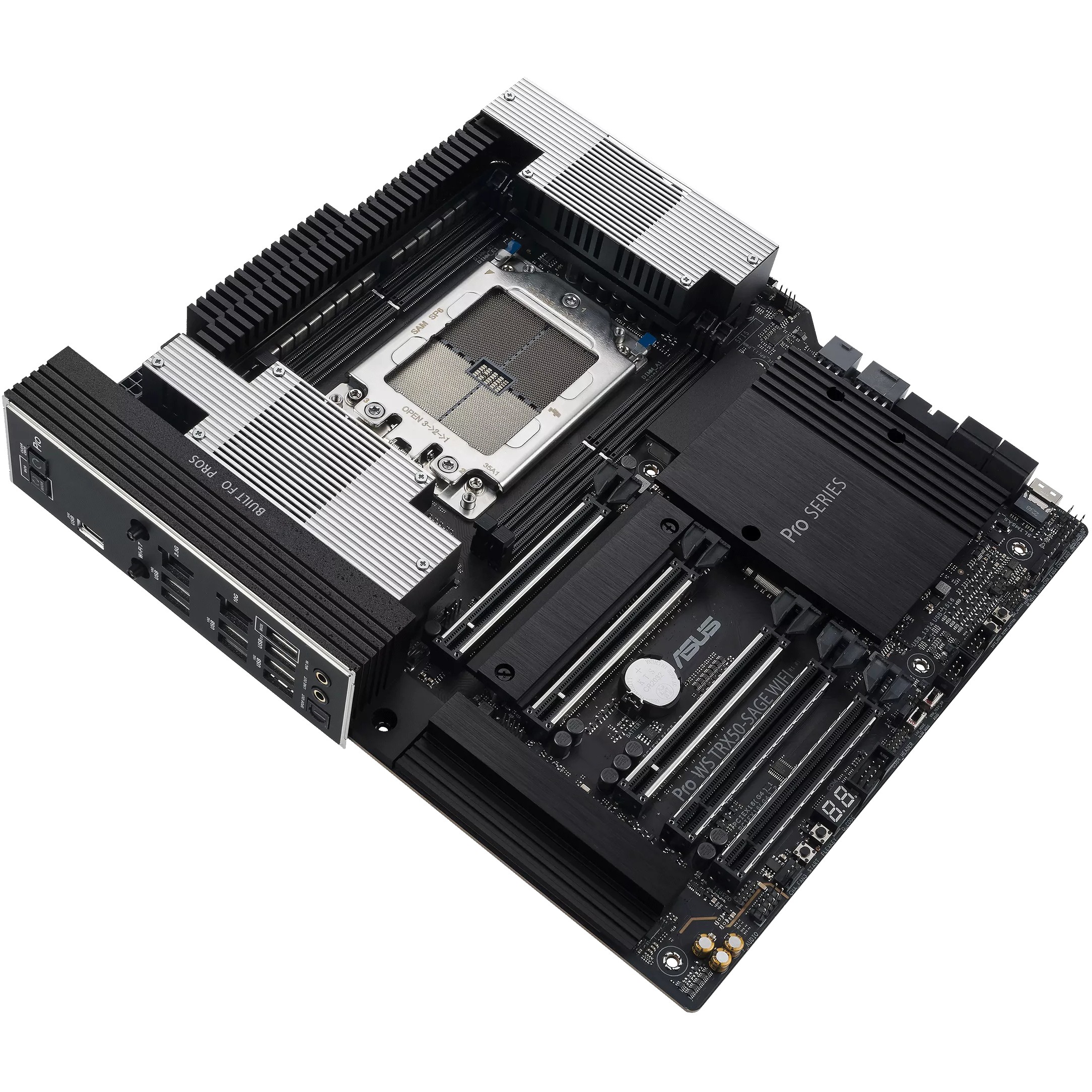

ASUS PRO WS TRX50-SAGE WIFI
Product code: 11157022 // MPN: 90MB1FZ0-M0EAY0 // EAN: 4711387402726
Similar products
A WORKSTATION WONDERLAND
The Pro WS TRX50-SAGE WIFI motherboard offers elite speed. compatibility and stability tailored to content creation. software development. machine learning and more. Thirty-six power stages fuel AMD Ryzen Threadripper™ PRO 7000 WX-series and AMD Ryzen Threadripper™ 7000 series processors with up to 96 cores. while supporting up to 1 TB of R-DIMM DDR5 modules. delivering the performance potential that professionals need for cutting-edge applications.
With onboard PCIe® power connectors offering additional support for multiple graphics cards. active cooling and heat pipes on the VRM heatsinks. WiFi 7. USB 20Gbps port. SlimSAS and IMPI support. the Pro WS TRX50-SAGE WIFI comes prepared for a wide array of scenarios and industries.
CPU AND MEMORY OVERCLOCKING READY
For AMD TR5 series workstations and high-end desktop (HEDT) models. AMD offers CPU and DRAM overclocking options. To fully leverage the performance of these processors. ASUS has incorporated an innovative dual PSU design on the Pro WS TRX50-SAGE WIFI motherboard. Along with robust power delivery and advanced cooling modules. this board exhibits remarkable stability during overclocking. Hardware switches and optimized BIOS options on the motherboard provide overclocking enthusiasts with greater convenience when pushing their systems to the limit. You may further boost your memory performance by enabling EXPO settings. The comprehensive synergy of EXPO and ECC R-DIMM further combines exceptional performance with outstanding stability. setting a new standard for workstation and high-end desktop computing.
ProCool II Connectors
ProCool II connectors ensure a snug and reliable connection to the 12V CPU input. This second generation features improved heat dissipation and a metal shroud.
Onboard PCIe Power Connectors
An 8-pin and 6-pin PCIe cable connector built into the motherboard can ensure power output stability when multiple graphic cards need to be installed.
ECC R-DIMM Memory Support
The Pro WS TRX50-SAGE WIFI motherboard boasts a robust design featuring four R-DIMM DDR5 memory module slots with ECC support. a feature that improves the prevention of system crashes and data corruption. thereby ensuring that a workstation remains reliable and responsive for professional demands.
ULTRAFAST CONNECTIVITY
Multi-GPU Support
The Pro WS TRX50-SAGE WIFI motherboard features several PCIe® 5.0/4.0 x16 slots that provide flexible system configurability and expandability. With high-powered graphics cards. it can bring enhanced performance in modelling. simulation and rendering applications
Dual transceivers support the 2.4. 5 and 6 GHz bands to enable faster throughput to improve signal quality and cover greater distances. With Q-Antenna. attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in. they just snap into place. Less hassle. and more consistent performance.
WiFi 7
Next-gen WiFi 71 include the 6 GHz band and 4096 QAM. delivering up to 2.8X ultra-fast WiFi speeds. The revolutionary Multi-Link Operation (MLO)2 provides a more stable WiFi connection and lower latency. unlocking the realms of the unknown in gaming. streaming. and industrial IoT.
Dual transceivers support the 2.4. 5 and 6 GHz bands to enable faster throughput to improve signal quality and cover greater distances. With Q-Antenna. attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in. they just snap into place. Less hassle. and more consistent performance.
Marvell® AQtion 10 Gbp Ethernet
With up to 10 times the bandwidth of standard gigabit Ethernet. streaming uncompressed 4K UHD videos. performing system backups and transferring large files is now faster than ever before.
Using a golden light. mark the location of the 2.5 Gbps Ethernet port on the back I/O.
Intel® 2.5 Gb Ethernet
Provides up to 2.5 faster transfers versus standard 1 Gb Ethernet connections for faster downloads and smoother high-res video streaming.
Embrace Next-Generation USB4®
Faster than ever and future-proof| once connected to this motherboard’s onboard USB4 header. the USB4 expansion card will enable bi-directional speeds of up to 40 Gbps and provide ample power to fast-charge devices.
M.2 PCIe 5.0/4.0 slots
The Pro WS TRX50-SAGE WIFI motherboard also offers three M.2 slots—two PCIe 5.0 and one PCIe 4.0—to enhance storage flexibility and performance. This configuration is ideal for creators who work with massive video files. as it supports RAID configurations across multiple NVMe devices to achieve massive I/O bandwidth and to ensure seamless playback in editing bays.
SlimSAS slot
The Pro WS TRX50-SAGE WIFI motherboard also features a SlimSAS port for connecting industrial SSD drives. servers and networking equipment.
Server-grade Remote Management
ASUS IPMI Expansion Card
The Pro WS TRX50-SAGE WIFI is compatible with ASUS IPMI Expansion card featuring a dedicated Ethernet-to-BMC chip that provides the intelligence for its IPMI architecture. Administrators can remotely communicate with the BMC to take some corrective actions — such as firmware update or power cycling a system.
ASUS Control Center Express
The Pro WS TRX50-SAGE WIFI comes with ASUS Control Center Express - a real-time IT monitoring and management software designed for business that improves productivity and enhances security. helping prevent unauthorized access and data leaks.
M.2 Cooling
All three M.2 slots come with large heatsinks to keep NVMe storage at the optimal operating temperature for consistent performance and reliability. M.2 thermal pads on select slots go even further to ensure peak performance from next-gen drives.
EZ DIY Design
SafeSlot & SafeDIMM
PCIe 5.0 is 2x faster than PCIe 4.0. so ASUS adapted its SMT manufacturing process to ensure the highest data speeds for its SafeSlot design. SafeSlot is a reinforced metal sheath added to a PCIe slot to keep an expansion card firmly installed. Meanwhile. strong ASUS SafeDIMM sheathes support and protect memory modules on ASUS Pro series workstation motherboards. empowering users to insert modules with speed. accuracy and confidence.
Q-Latch
The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. This design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws.
24/7 Reliability
Built for around-the-clock operation
Optimized for 24/7 operation. the Pro WS TRX50-SAGE WIFI motherboard is tested to work at up to 45°C and 80% humidity. ensuring it can handle diverse operating environments.
Processor
Processor manufacturer: AMD
Processor socket: Socket sTR5
Compatible processor series: AMD Ryzen Threadripper 1000 Series
Memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Quad-channel
ECC сompatibility: ECC
Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2. SATA III
Number of HDDs supported: 4
Number of storage drives supported: 7
Feature: RAID support
RAID levels: 0. 1. 5. 10
Internal I/O
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2x2 connectors: 1
Number of SATA III connectors: 4
Feature: Front panel audio connector
Feature: ATX Power connector (24-pin)
Feature: CPU fan connector
Number of chassis fan connectors: 4
Feature: Chassis intrusion connector
Feature: EPS power connector (8-pin)
Number of COM connectors: 1
Feature: TPM connector
Feature: 12V power connector
Integrated SAS ports: 1
Rear panel I/O ports
USB 2.0 ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 6
USB 3.2 Gen 2x2 Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 2
Feature: Microphone in
Feature: S/PDIF out port
WiFi-AP antenna jack: 1
USB connector type: USB Type-A. USB Type-C
Network
Feature: Ethernet LAN
Ethernet interface type: 2.5 Gigabit Ethernet. 10 Gigabit Ethernet
LAN controller: Intel I226-LM
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
Feature: Bluetooth
Bluetooth version: 5.4
Features
Motherboard chipset: AMD TRX50
Audio chip: Realtek ALC1220P
Product colour: Black
Component for: Workstation
Motherboard form factor: SSI CEB
Motherboard chipset family: AMD
Windows operating systems supported: Windows 10 x64. Windows 11
Expansion slots
PCI Express x16 (Gen 4.x) slots: 2
PCI Express x16 (Gen 5.x) slots: 3
Number of M.2 (M) slots: 3
BIOS
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Feature: Clear CMOS button
Packaging data
Package width: 320 mm
Package depth: 380 mm
Package height: 100 mm
Package weight: 4.85 kg
Weight & dimensions
Width: 305 mm
Depth: 280 mm
Packaging content
Cables included: PCIe. SATA
Other features
Weight: 2.53 kg
