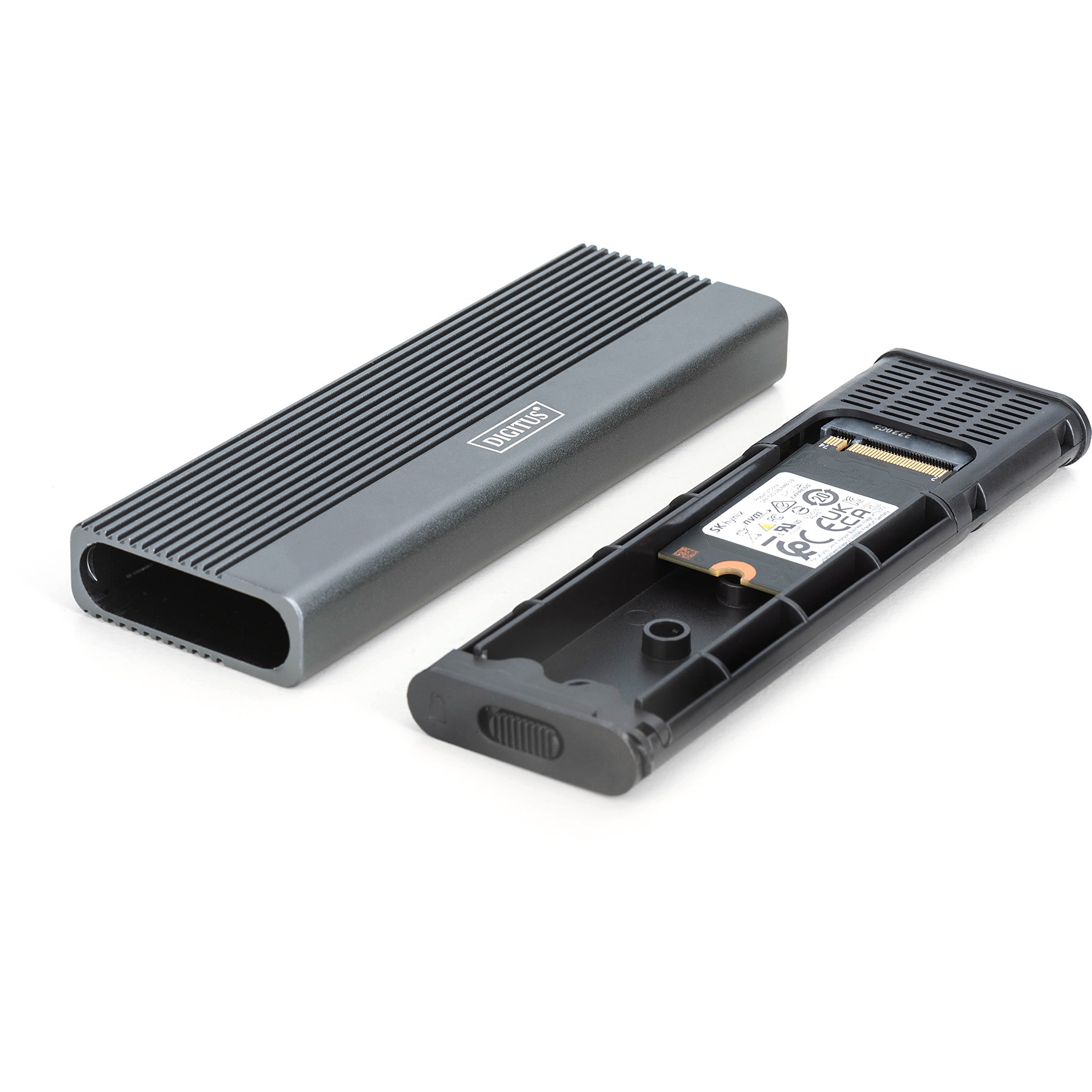

The DA-71156 M.2 SATA & NVMe SSD Enclosure will become your preferred solution for high capacity and high speed storage. This elegant. tool-less enclosure supports mini SSDs in M.2 B+M key format.

- Wide compatibility: Supports M.2 modules in 2230. 2242. 2260 and 2280 formats. compatible with a wide range of SSDs.
- High capacity: Offers up to 8 TB of storage space for all your files and data.
- Fast data transfer: Data transfer rate of 10Gbps (6Gbps for SATA) for fast file transfers and smooth performance.
- USB 3.1 Gen 2 interface: Latest USB technology with backwards compatibility to USB 3.1. 3.0. 2.0 and 1.1.
- Plug and play: Simply connect via USB and get started straight away.
- Cross-platform support: Compatible with Windows. macOS. Linux. Google Chrome OS. Android and iOS.
- Robust chipset: JMS581DL chipset for reliable and efficient performance.
- LED activity indicator: Integrated LED indicator for monitoring the status of your SSD.
- Durable and stylish: aluminum housing in Pantone 430C with excellent passive heat dissipation.
- Portable design: Compact and lightweight with dimensions of 101x32x10 mm and a weight of only 97 g.

The DA-71156 USB hard disk enclosure offers a versatile and powerful storage solution for both NVMe and SATA SSDs. With support for M.2 modules in 2230. 2242. 2260 and 2280 formats and a maximum storage capacity of up to 8 TB. it is compatible with a wide range of SSDs. The data transfer rate is 10 Gbps for NVMe and 6 Gbps for SATA. while the USB 3.1 Gen2 interface is backwards compatible with USB 3.1. 3.0. 2.0 and 1.1. The tool-free design allows for easy installation and the robust JMS581DL chipset ensures reliable and efficient performance. An integrated LED indicator makes it easy to monitor SSD status. and the durable Pantone 430C aluminum enclosure provides excellent passive heat dissipation. With compact dimensions of 101x32x10 mm and a weight of only 97 g. the housing is ideal for mobile use. It supports plug-and-play and is powered directly via the USB port. The enclosure is compatible with Windows (11. 10. 8. 7. XP. 2000). macOS. Linux (2.4.x or higher). Google Chrome OS (9.x or higher). Android and iOS and offers comprehensive support for USB-C products.

Storage
Number of storage drives supported: 1
Storage drive size: M.2
Supported storage drive interfaces: M.2. Serial ATA
Supported storage drive lengths: 30.42.60.80 mm
Feature: NVMe
Maximum storage capacity: 8 TB
Ports & interfaces
Feature: USB connectivity
USB version: 3.2 Gen 2 (3.1 Gen 2)
USB connector type: USB Type-C
USB connector gender: Female
USB ports quantity: 1
Design
Product type: SSD enclosure
Product colour: Black
Material: Aluminium
LED indicators: Activity
Performance
Data transfer rate: 10 Gbit/s
Chipset: JMS581DL
Feature: Plug and Play
Country of origin: China
Power
Power source type: USB
System requirements
Mobile operating systems supported: Android. iOS
Feature: Windows operating systems supported
Feature: Linux operating systems supported
Feature: Mac operating systems supported
Operational conditions
Operating temperature (T-T): 5 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 5 - 90%
Weight & dimensions
Width: 101 mm
Depth: 32 mm
Height: 10 mm
Weight: 97 g
Package width: 94 mm
Package depth: 152 mm
Package height: 39 mm
Package volume: 557.23 cm³
Package weight: 170 g
Packaging content
Cables included: USB Type-C
Feature: Quick installation guide
