DIGITUS Netzwerkschrank Unique 26HE 1342x800x800mm grau
Product code: 10845222 // MPN: DN-19 26U-8/8-1 // EAN: 4016032353515
Similar products
The DIGITUS® network cabinets of the Unique series combine maximum stability with optimum flexibility in cable management. for the high demands of modern IT infrastructure with a wide variety of application scenarios.
- High load capacity of the 483 mm (19") profile rails of up to 1200 kg
- Swivel handle with profile half-cylinder lock incl. type 333 key on the front door
- Vertical cable ducts with cable routing aids and cover installed in the front panel
- Modular. openable base chassis with removable 19" blind panels
- Flexible cable routing options thanks to generous cable inlets with brushes in the roof. base and rear

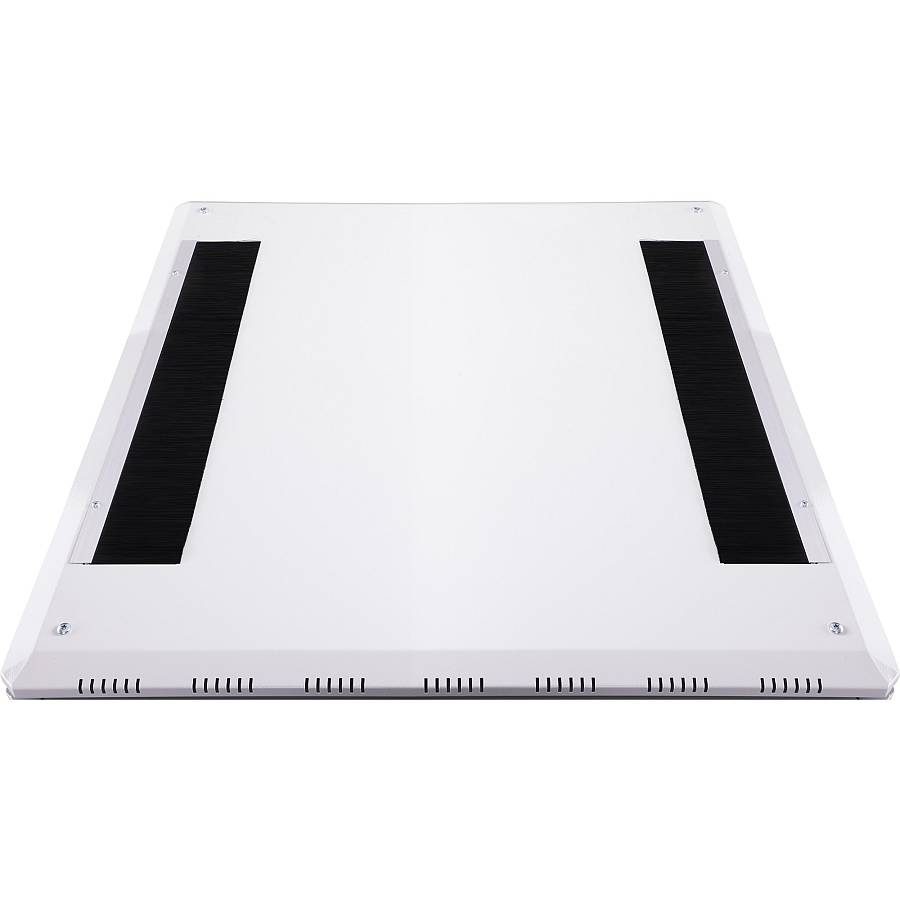

- Roof is prepared to accommodate a fan unit and an attached. removable cover
- Ready for immediate use: Delivery is assembled (cabinet can be completely dismantled if required)
The network cabinets in the Unique series have been designed and produced for particularly convenient and flexible network cabling. Sophisticated optimizations offer market-compliant stability with maximum flexibility. A modular base chassis. which can be opened using screwed 483 mm (19") blind panels. offers sufficient space for cables of all kinds. In addition. there are side cable inlets with brushes at the top and bottom of the enclosure. as well as another at the rear of the base chassis. Rear brush strips above and below the rear door (from 26U) enable use in a wide range of application scenarios. Generous vertical cable ducts with cable routing aids and cover. installed in the front (from 800 mm enclosure width). perfectly round off the versatile features of the network enclosure. Two pairs of cranked and galvanized 483 mm (19") profile rails. labelled with height units that can be read in opposite directions. are installed inside. They are infinitely adjustable and are connected to additional depth struts in the cabinet. Each enclosure is a robust steel construction made from sheet steel up to 1.5 mm thick. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). Modular lockable and removable side panels and doors improve accessibility. Door hinges can be changed. Furthermore. the cabinets can be completely dismantled if required thanks to the demountable design.
Features
Rack capacity: 26U
Type: Freestanding rack
Maximum weight capacity: 800 kg
Product colour: Grey
Material: Steel
Frame type: Closed
Back door construction: Steel
Front door construction: Glass
Feature: Removable side panels
Feature: Side panels included
Feature: Key lock
Feature: Front door key lock
Feature: Side panel key lock
International Protection (IP) code: IP20
Weight & dimensions
Size (imperial): 48.3 cm (19")
Width: 800 mm
Depth: 800 mm
Height: 1342 mm
Packaging data
Feature: Nuts included
Feature: Screws included
Package width: 850 mm
Package depth: 850 mm
Package volume: 1005720 cm³
Package weight: 82 kg
Logistics data
UK Trade Tariff code: 94032080
Country of origin: Turkey
Harmonized System (HS) code: 85381000
