No compromise silence and performance
Silent Wings 4 120mm PWM high-speed combines all features of a virtually inaudible with an extremely performant fan. A 6-pol-motor and anti-vibration mountings combined with fan blades optimized for maximum airflow make Silent Wings 4 120mm PWM high-speed the perfect choice for the most demanding applications in high-end systems.

Performance
Suitable location: Computer case
Type: Fan
Fan diameter: 12 cm
Rotational speed (max): 2500 RPM
Noise level (high speed): 31.2 dB
Maximum airflow: 76.7 cfm
Airflow: 130.31 m³/h
Maximum air pressure: 3.96 mmH2O
Feature: Pulse-width modulation (PWM) support
Bearing type: Fluid Dynamic Bearing (FDB)
Quantity per pack: 1 pc(s)
Mean time between failures (MTBF): 300000 h
Design
Product colour: Black
Fan connector: 4-pin
Certification: CE / ROHS / RU / UKCA / TÜV / WEEE
Power
Power consumption (typical): 2.4 W
Voltage: 5 - 13.2 V
Rated voltage: 12 V
Rated current: 0.2 A
Maximum current: 0.22 A

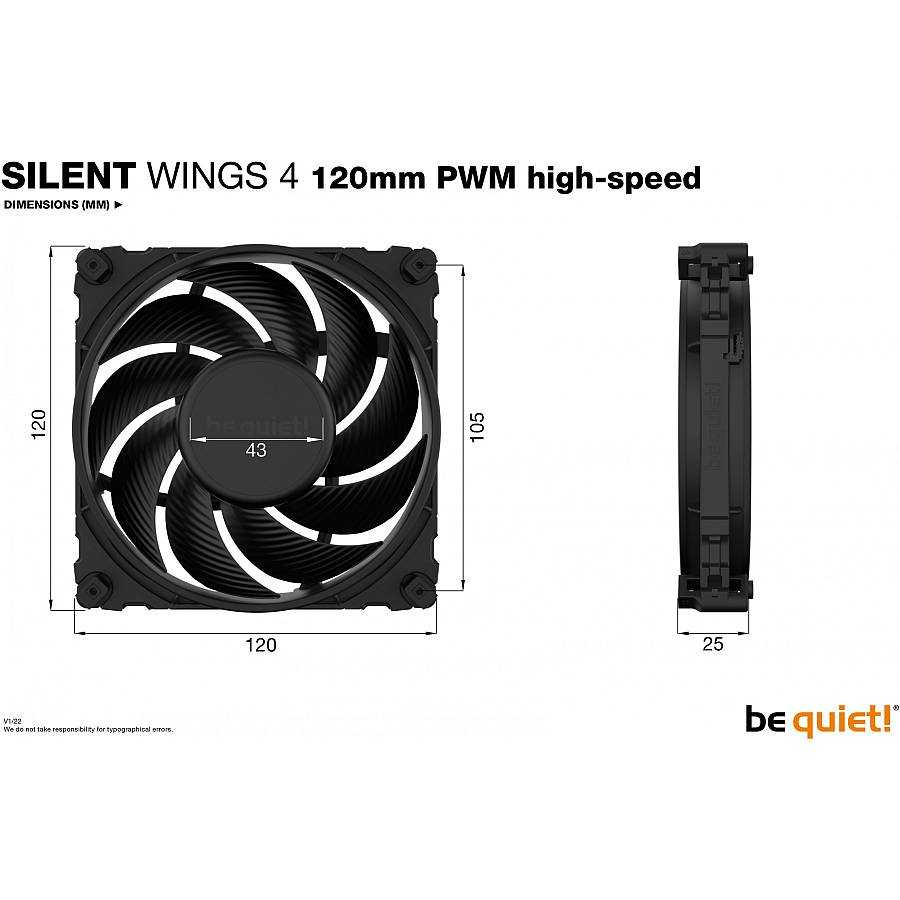

Weight & dimensions
Width: 120 mm
Depth: 120 mm
Height: 25 mm
Weight: 190 g
Cable length: 0.5 m
Package width: 141 mm
Package depth: 192 mm
Package height: 31 mm
Package weight: 346 g
Packaging content
Feature: Screws included
Number of screws: 4
Number of clips: 4
Other features
Country of origin: China
Logistics data
Harmonized System (HS) code: 84733080
Products per shipping (inner) case: 40 pc(s)
Shipping (inner) case width: 38.7 cm
Shipping (inner) case length: 43.2 cm
Shipping (inner) case height: 37.5 cm
Shipping (inner) case gross weight: 15 kg
