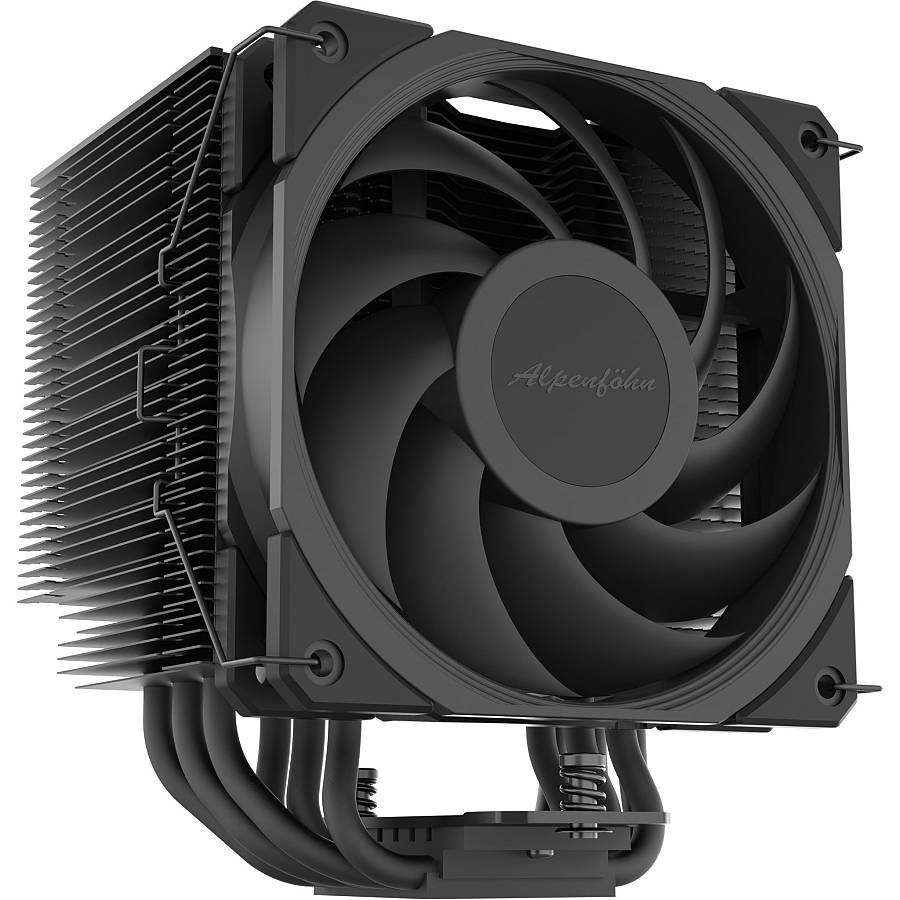

K EKL Alpenföhn Brocken 4
Product code: 10653122 // MPN: 84000000205 // EAN: 4250280330311
Similar products
High-performance 220W TDP single tower for sophisticated systems
Matt black surface coating. 6x6mm heatpipes. large asymmetric heatsink and an aerodynamically optimised fin design - Brocken 4 combines pure performance with almost silent operation even in demanding systems.
JetStream fans
Our brand new JetStream fans set new standards in our Alpenföhn portfolio! Each fan has an airflow-optimised impeller. a modified frame and next-gen bearings. which ensure excellent running smoothness during maximum performance. The JetStream's anti vibration pads reduce vibrations to a minimum.
High-end heat pipes & copper baseplate
The 6 high-end heat pipes are connected to the nickel-plated copper base plate over a large area. which ensures that the heat from the CPU is effectively absorbed. This enables the heat pipes to transport the heat of the processor quickly and efficiently to the large-area heat sink.
Matt black surface coating
The entire heatsink of the Brocken 4 is coated in classy matt black. Black is beautiful – do you agree?
Asymmetrical heat sink
The asymmetrical design of the Brocken 4 gives you maximised flexibility in the selection of RAM modules. No matter how high the heat spreader of the module may be - it fits without any problems! 100% RAM compatibility on sockets 1700. 1200. 115X. AM5 and AM4.
Compatibility
The included Rock Mount 3 mounting system offers a secure connection to the sockets: Intel® LGA: 1700. 1200. 115X. 20XX AMD: AM5. AM4
Expandable fan assembly
For even more performance. the scope of delivery includes additional fan clamps and decoupling elements. This means you can easily add an additional 120 mm fan to the other side of the heatsink and increase the cooling performance even more.
Performance
Suitable location: Processor
Type: Air cooler
Fan diameter: 12 cm
Airflow: 94 m³/h
Maximum air pressure: 1.74 mmH2O
Feature: Pulse-width modulation (PWM) support
Fan noise level (max): 22.8 dB
Fan bearing technology: Hydro bearing
Quantity per pack: 1 pc(s)
Fan speed (min): 400 RPM
Fan speed (max): 1600 RPM
Fan's mean time to failure (MTTF): 300000 h
Design
Product colour: Black
Radiator material: Aluminum
Base plate material: Copper
Number of fans: 1 fan(s)
Number of fan blades: 9
Fins material: Aluminium
Number of heat pipes: 6
Fan connector: 4-pin
Power
Fan power consumption: 1.8 W
Rated current: 0.15 A
Thermal Design Power (TDP): 220 W
Fan voltage: 12 V
Weight & dimensions
Width: 127 mm
Depth: 92 mm
Height: 155 mm
Weight: 1.1 kg
Fan dimensions (W x D x H): 120 x 120 x 27 mm
Heat pipes diameter: 6 mm
Packaging content
Package type: Box
Feature: Mounting kit
Feature: Screws included
Feature: Installation instruction
Feature: CPU bracket(s)
Other features
Fan rated voltage: 5 - 13.2 V
