CPU COOLERS

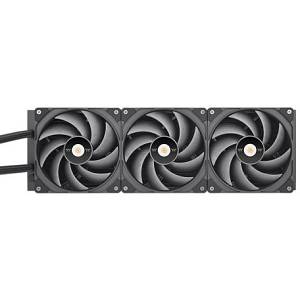

TOUGHLIQUID 420 EX Pro introduces a new all-black industrial cap with an infinity mirror light design. adding a fresh look to the TOUGHLIQUID series. The AIO is equipped with three high-performance TOUGHFAN EX14 Pro fans. the TOUGHLIQUID 420 EX Pro provides a better PC building experience with the new MagForce 2.0. allowing you to snap the fans together more quickly and ensures a steadier connection!

New Series Aligned
The TOUGHLIQUID EX Pro Series comes in different models. with the TOUGHLIQUID 240/360 EX Pro utilizing 120mm fans and the TOUGHLIQUID 280/420 EX Pro using 140mm fans. Indeed. we have a model that suits your build.

New Version. New Design
The TOUGHLIQUID EX Pro Series adapts the new industrial look to freshen up the 360-degree rotational cap. but we’ve opted for an all-black color to distinguish it from the TH Series. Adding Infinity Mirror Lighting to this series can bring more diverse visual effects to the build and give more depth than it looks.

Steady Connection with MagForce 2.0
Evolved from SWAFAN EX’s Magnetic Force Design. the new MagForce 2.0 Pogo pin contact pads are TWO times larger for greater tolerance. This enhancement significantly reduces the potential faulty alignment no matter you are daisy-chaining fans together or connecting fans with cable. further boosting the installation efficiency and streamlining the building experience.

Say Goodbye to Excessive Cables
Connect your fans with TOUGFAN EX Pro’s MagForce 2.0 Quick Connect Design and be free from messy cables!

Redesigned Fan Blade for Better Performance
The TOUGHFAN EX Pro features a redesigned 9-fan blade structure crafted from Liquid Crystal Polymer (LCP). providing an airflow of 70.8 CFM and 3.19 mm-H2O while maintaining a 22.6 dB-A noise level.

Enhanced Cooling Surface With A Compact Design
The TOUGHLIQUID EX Pro Series has a 27mm slim radiator with a thickened 20mm copper chamber. ensuring the same easy installation but with even better cooling performance.

Keep it COLD with Copper
The high-performance copper base plate accelerates heat conductivity. The high-quality and reliable pump enables maximum water circulation. keeping the copper plate continuously cool. The low evaporation tube effectively decreases the loss of coolant| therefore. no refill is required.

Any CPU Can Be the Right CPU
The package includes brackets for the latest Intel and AMD CPU sockets to be compatible with the most modern CPU platforms. including the latest Intel LGA1700 and AMD AM5 CPUs.

Performance
Type: All-in-one liquid cooler
Fan diameter: 14 cm
Maximum airflow: 119.6 cfm
Maximum air pressure: 3.57 mmH2O
Bearing type: Hydraulic
Pump connector: 3-pin + 4-pin
Quantity per pack: 1 pc(s)
Pump motor speed: 3300 RPM
Pump motor speed (min): 1500 RPM
Pump motor speed (max): 3300 RPM
Fan speed (min): 500 RPM
Fan speed (max): 2000 RPM
Fan static pressure: 3.19 mmH2O
Compatible products: Intel LGA 2066/2011/1700/1200/1156/1155/1151/1150AMD AM5/AM4/AM3+/AM3/AM2+/AM2
Design
Product colour: Black
Radiator material: Aluminum
Number of fans: 3 fan(s)
Illumination colour: Blue. Green. Red
Fan connector: 4-pin
Water block material: Copper
Power
Fan power consumption: 3.6 W
Pump power consumption: 5.16 W
Pump voltage: 5/12 V
Pump current: 430 mA
Fan voltage: 12 V
Fan current: 170 A
Weight & dimensions
Radiator width: 45.6 cm
Radiator depth: 13.9 cm
Radiator height: 2.7 cm
Tube length: 46 cm
Fan dimensions (W x D x H): 140 x 140 x 25 mm
