NETWORK - ETHERNET CABLES

The perfect converter solution for various fiber media

- Sends data in high quality and additionally provides excellent reliability
- Automatic cable detection
- Over a distance of 500m transmits the converter in Gigabit speed

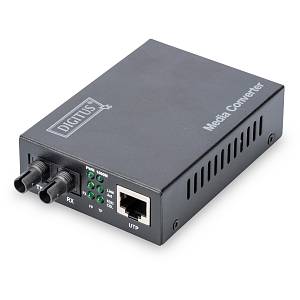

The media converters from DIGITUS® are the ideal solution for the migration of copper and fiber network signals. From now on. you are able to access the fiber technology and transfer network signals over several kilometers without renewing your whole network infrastructure. The huge variety of products fulfil your individual needs. The intiutive operation guarantees a quick and easy installation. Years of experience and a wide range of products lets DIGITUS® become a reliable partner for your network.

Network
Maximum data transfer rate: 1000 Mbit/s
Converter input interface: 1000Base-T
Networking standards: IEEE 802.3. IEEE 802.3u. IEEE 802.3z
Ethernet interface type: Gigabit Ethernet
Feature: Auto MDI/MDI-X
Duplex system: Full. Half
Performance
Maximum transfer distance: 500 m
Wavelength: 850 nm
Fiber mode structure: Multi-mode
Sensitivity: -20 dBmW
Features
Feature: LED indicators
Ports & interfaces
Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 2
Fiber optic connector: SC
Feature: DC-in jack
Power
Input voltage: 5 V
Weight & dimensions
Weight: 200 g
Operational conditions
Operating temperature (T-T): 0 - 60 °C
Packaging data
Package width: 216 mm
Package depth: 60 mm
Package volume: 2086.56 cm³
Package weight: 450 g
Logistics data
Country of origin: China
UK Trade Tariff code: 85176200
Harmonized System (HS) code: 85176990
Other features
Dimensions (WxDxH): 95 x 70 x 26 mm
