NETWORK - ETHERNET CABLES

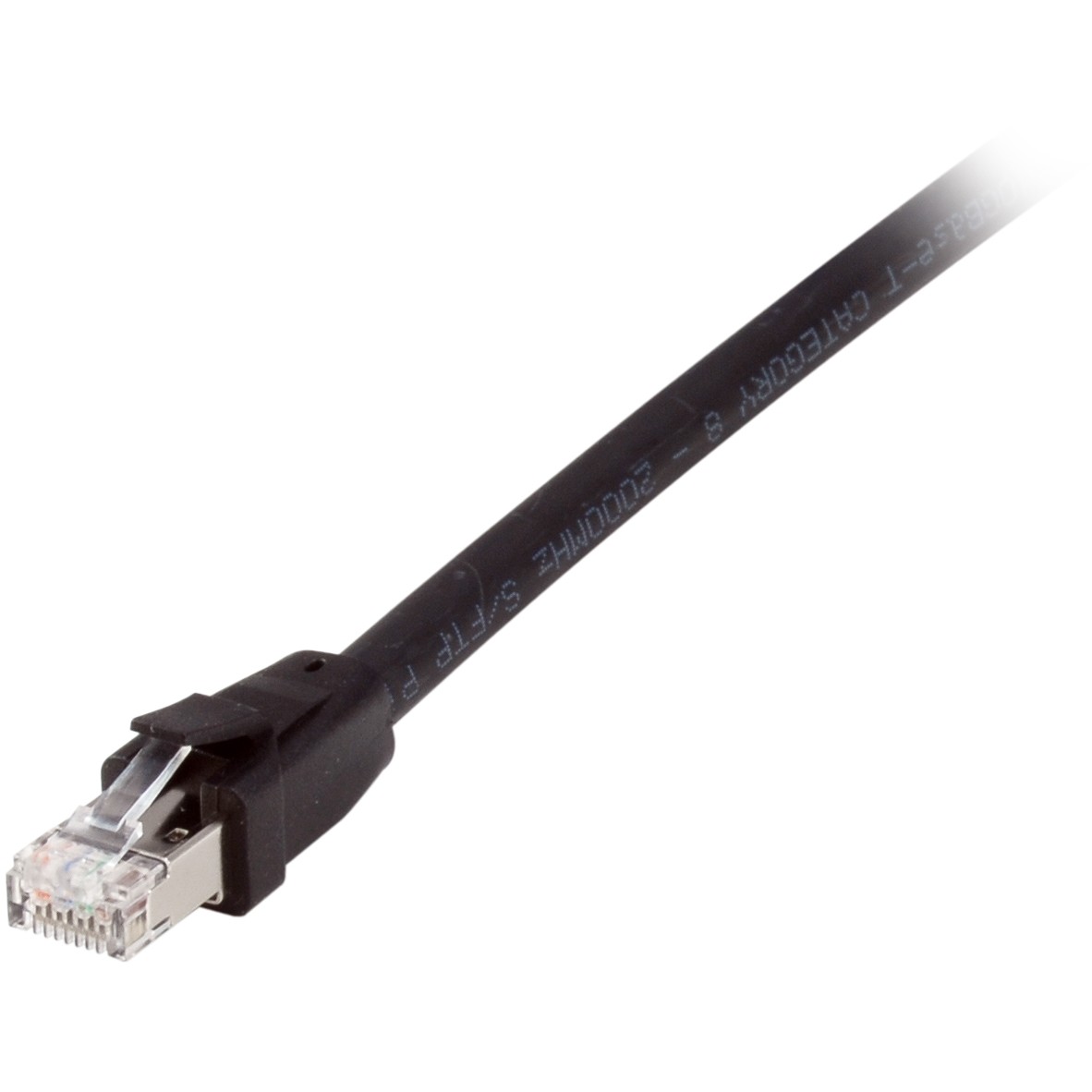

The equip® Cat 8.1 S/FTP Patch Cord is composed of preeminent materials and fully-examined to conform with industrial standards. Offering higher bandwidth and better signal-to-noise margin. the Cat 8.1 cable is able to deliver ultrahigh and error-free performance in the most demanding network environments. specially for 40G application.

Features
Product colour: Black
Cable length: 0.5 m
Cable standard: Cat8.1
Cable shielding: S/FTP (S-STP)
Connector 1: RJ-45
Connector 2: RJ-45
Connector 1 gender: Male
Connector 2 gender: Male
Connector 1 form factor: Straight
Connector 2 form factor: Straight
Connector contacts plating: Gold
Jacket material: Low smoke zero halogen (LSZH)
Cable shape: Round
Conductor type: Stranded
Conductor material: Copper
Cabling technology: 40GBase-T
Ethernet interface type: 10 Gigabit Ethernet. 40 Gigabit Ethernet. Fast Ethernet. Gigabit Ethernet
Networking standards: IEEE 802.3. IEEE 802.5
AWG wire size: 24/7
Data transfer rate: 40000 Mbit/s
Frequency: 2000 MHz
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: PoE+. PoE++ (4PPoE)
Feature: Plug and Play
Country of origin: China
Sustainability
Doesn't contain: Halogen
Certificates
Compliance certificates: CE. REACH. RoHS
Weight & dimensions
Width: 8 mm
Depth: 8 mm
Height: 500 mm
Outer diameter: 8 mm
Weight: 51 g
Packaging content
Quantity per pack: 1 pc(s)
Packaging data
Package width: 275 mm
Package depth: 16 mm
Package height: 175 mm
Package weight: 60 g
Package type: Polybag
Logistics data
Harmonized System (HS) code: 84733080
Master (outer) case width: 300 mm
Master (outer) case length: 380 mm
Master (outer) case gross weight: 11.2 kg
Master (outer) case height: 400 mm
Products per master (outer) case: 200 pc(s)
Technical details
Feature: Sustainability compliance
