NETWORK - ETHERNET CABLES

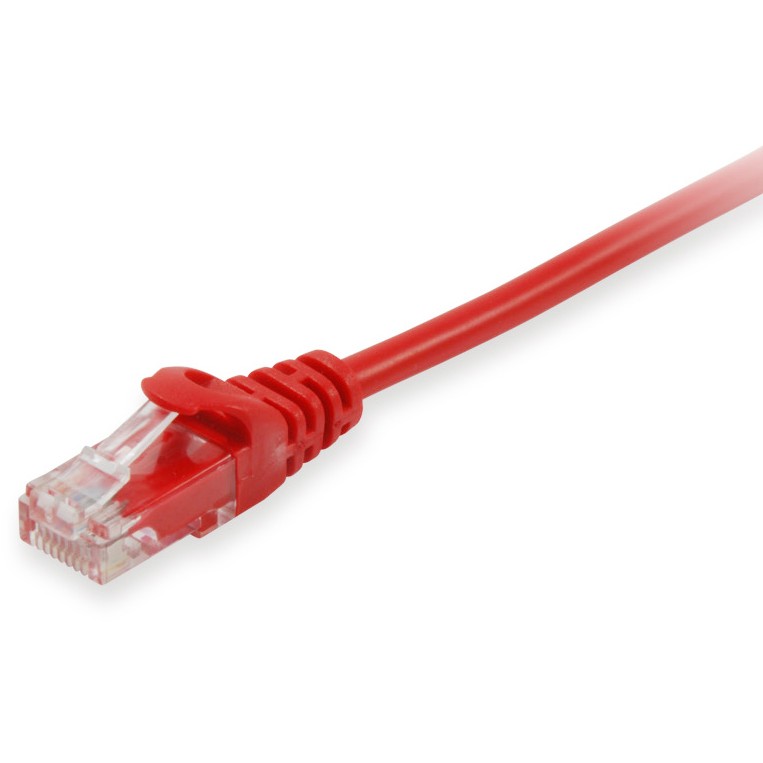

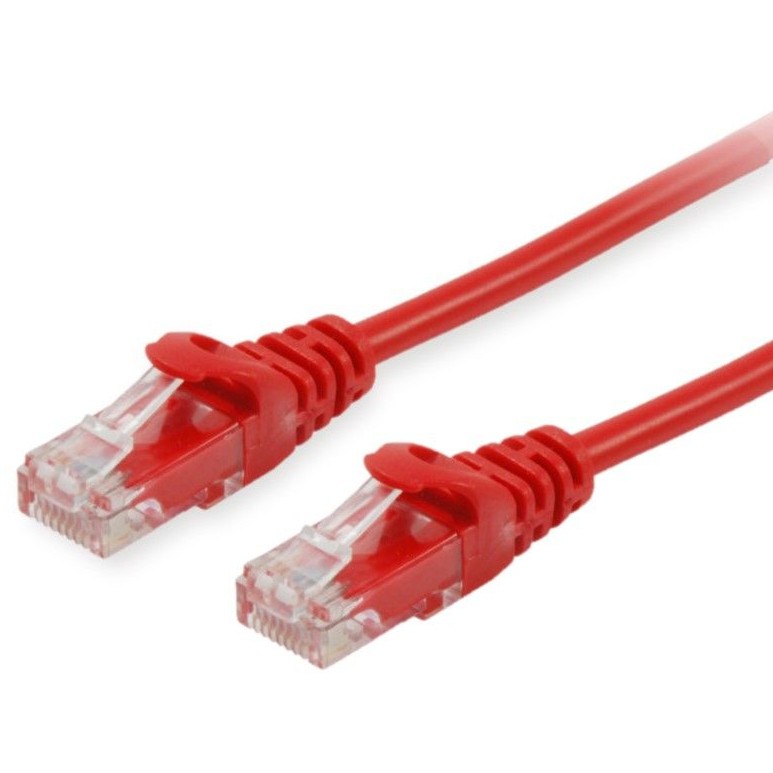

The equip® Cat.6 U/UTP Patch Cable is composed of preeminent materials and fully-examined to conform with industrial standards. Offering higher bandwidth and better signal-to-noise margin. the Cat.6 cable is able to deliver ultrahigh and error-free performance in the most demanding network environments.

Features
Product colour: Red
Cable length: 15 m
Cable standard: Cat6
Cable shielding: U/UTP (UTP)
Connector 1: RJ-45
Connector 2: RJ-45
Connector 1 gender: Male
Connector 2 gender: Male
Connector 1 form factor: Straight
Connector 2 form factor: Straight
Connector contacts plating: Gold
Jacket material: Polyvinyl chloride (PVC)
Cable shape: Round
Conductor type: Stranded
Conductor material: Copper-Clad Aluminium (CCA)
Cabling technology: 10GBase-T
Ethernet interface type: 10 Gigabit Ethernet. Fast Ethernet. Gigabit Ethernet
Networking standards: IEEE 802.3. IEEE 802.5
AWG wire size: 26/7
Data transfer rate: 10000 Mbit/s
Frequency: 250 MHz
Feature: Molded cable boot
Feature: Plug and Play
Country of origin: China
Certificates
Compliance certificates: CE. REACH. RoHS
Certification: ISO/IEC 11801. EN 50173
Weight & dimensions
Width: 8.34 mm
Depth: 11.7 mm
Height: 15000 mm
Outer diameter: 5 mm
Weight: 328 g
Packaging data
Package width: 220 mm
Package depth: 45 mm
Package height: 260 mm
Package type: Polybag
Logistics data
Harmonized System (HS) code: 84733080
Master (outer) case width: 420 mm
Master (outer) case length: 310 mm
Master (outer) case gross weight: 9.2 kg
Master (outer) case height: 250 mm
Products per master (outer) case: 30 pc(s)
Technical details
Feature: Sustainability compliance
