NETWORK - ETHERNET CABLES

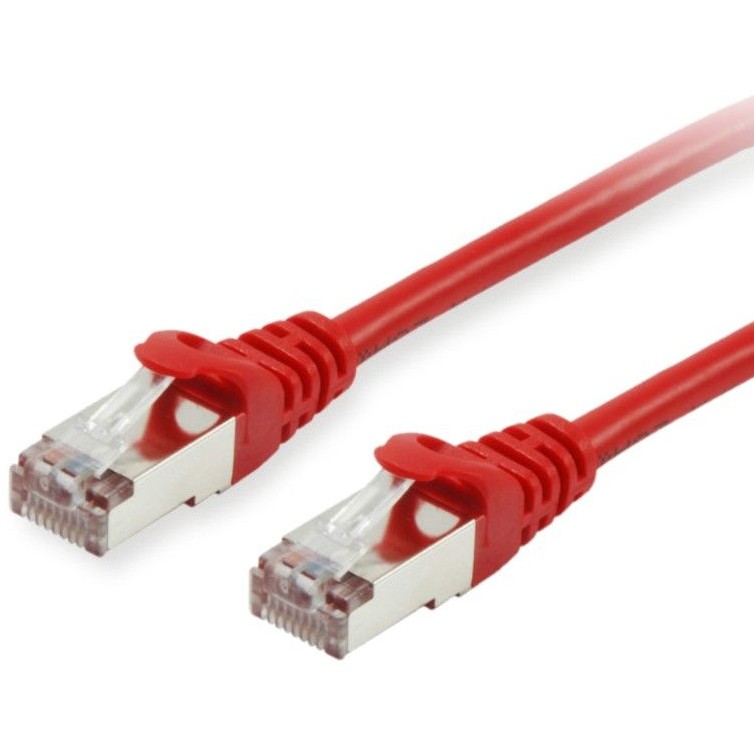

The equip® Cat.6 S/FTP Patch Cord is composed of high-quality materials and fully-examined to conform with industrial standards. Offering higher bandwidth and better signal-to-noise margin. the Cat.6 cable is able to deliver ultrahigh and error-free performance in the most demanding network environments.

Features
Product colour: Red
Cable length: 0.5 m
Cable standard: Cat6
Cable shielding: S/FTP (S-STP)
Connector 1: RJ-45
Connector 2: RJ-45
Connector 1 gender: Male
Connector 2 gender: Male
Connector 1 form factor: Straight
Connector 2 form factor: Straight
Connector contacts plating: Gold
Jacket material: Low smoke zero halogen (LSZH)
Cable shape: Round
Conductor type: Stranded
Conductor material: Copper
Cabling technology: 10/100/1000Base-T(X)
Ethernet interface type: Fast Ethernet. Gigabit Ethernet
Networking standards: IEEE 802.3. IEEE 802.5
AWG wire size: 28/7
Data transfer rate: 1000 Mbit/s
Frequency: 250 MHz
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: PoE+
Feature: Molded cable boot
Feature: Plug and Play
Country of origin: China
Sustainability
Doesn't contain: Halogen
Certificates
Compliance certificates: CE. REACH. RoHS. UKCA
Certification: ISO/IEC 11801. EN50288. TIA/EIA 568-C.2
Weight & dimensions
Width: 8.34 mm
Depth: 11.7 mm
Height: 500 mm
Outer diameter: 5.8 mm
Weight: 33 g
Packaging content
Quantity per pack: 1 pc(s)
Packaging data
Package width: 140 mm
Package depth: 12 mm
Package height: 180 mm
Package weight: 18 g
Logistics data
Harmonized System (HS) code: 84733080
Master (outer) case width: 290 mm
Master (outer) case length: 350 mm
Master (outer) case gross weight: 9.1 kg
Master (outer) case height: 380 mm
Products per master (outer) case: 300 pc(s)
Technical details
Feature: Sustainability compliance
