SWITCHES

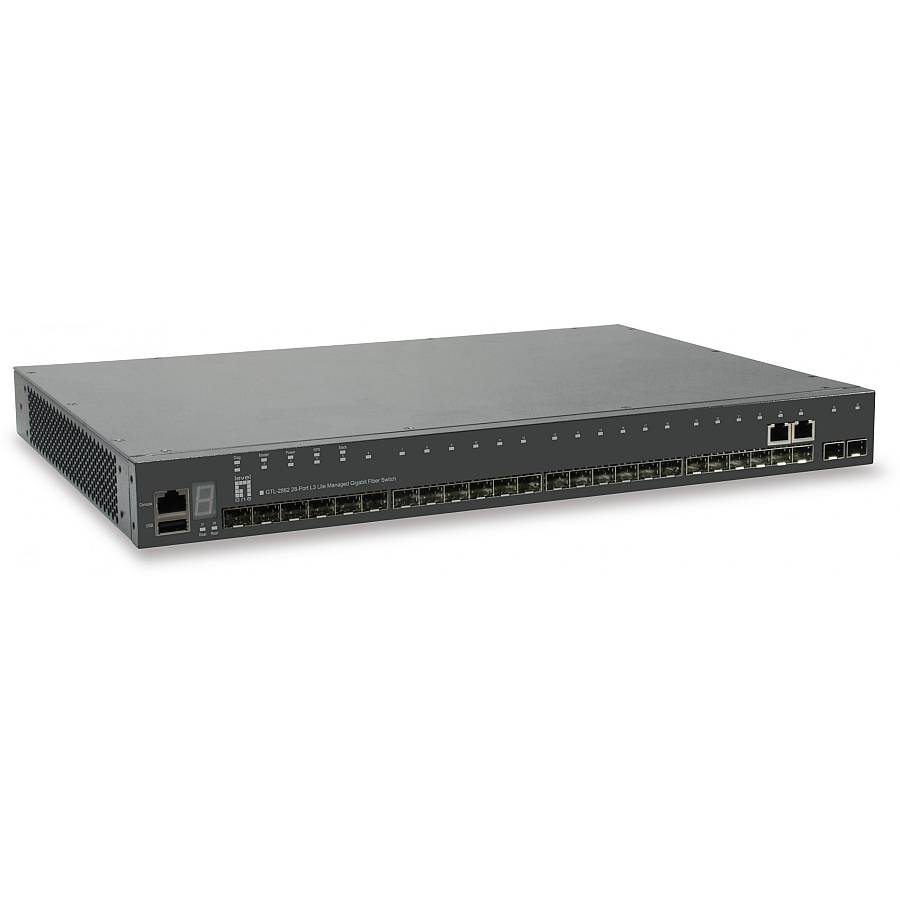

The GTL-2882 series includes high-performance Gigabit Ethernet Layer3 Lite switches featuring 28 or 52 ports| 24 /48 10/100/1000BASE-T ports. two 10G SFP+ ports. and one 10G expansion slot for a dual-port module. The switch is ideal for high-performance server aggregations. such as enterprise data centers. where it can connect high-end or network-attached file servers through fiber ports. It can also deployed as a backbone upgrade. or to provide Gigabit-to-the-desktop for power users. This switch is packed with features and is a cost-effective solution that brings continuous availability. enhanced security. and advanced QoS to the network edge. while maintaining simplicity of management.

Management features
Switch type: Managed
Switch layer: L3
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: ARP inspection
Feature: System event log
Ports & interfaces
Gigabit Ethernet (copper) ports quantity: 2
SFP module slots quantity: 22
SFP+ module slots quantity: 2
Fiber optic connector: SFP. SFP+
Console port: RJ-45
Network
Networking standards: IEEE 802.1D. IEEE 802.1Q. IEEE 802.1p. IEEE 802.1s. IEEE 802.1w. IEEE 802.1x. IEEE 802.3ad. IEEE 802.3u. IEEE 802.3x. IEEE 802.3z
Feature: 10G support
Feature: Port mirroring
Feature: Full duplex
Feature: Flow control support
Feature: Link aggregation
Feature: Spanning tree protocol
Feature: Ethernet Ring Protection Switching (ERPS)
Feature: VLAN support
Virtual LAN features: Private VLAN. Voice VLAN. Tagged VLAN. Protocol-based VLAN. MAC address-based VLAN. Port-based VLAN. IP subnet–based VLAN
Number of VLANs: 4000
Data transmission
Switching capacity: 128 Gbit/s
Forwarding rate: 95.23 Mpps
MAC address table: 16000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 10000
Packet buffer memory: 1.5 MB
Security
DHCP features: DHCP snooping
Security algorithms: HTTPS
Feature: Static port security
Feature: SSH/SSL support
Feature: DoS attack prevention
Protocols
Management protocols: BOOTP/DHCP. SNTP. DNS. LLDP. RMON I. SNMP v1/v2/v3.
Feature: GARP VLAN Registration Protocol (GVRP)
Design
Feature: Rack mounting
Feature: Stackable
Product colour: Grey
LED indicators: Diagnostic. System. Uplink
Number of fans: 3 fan(s)
Performance
Physical stacking (units): 8
Virtual stacking (units): 36
Memory type: DRAM
Internal memory: 256 MB
Flash memory: 128 MB
Feature: Firmware upgradeable
Feature: Telnet
Mean time between failures (MTBF): 364434 h
Power
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 2 A
Power consumption (typical): 42 W
Operational conditions
Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 10 - 90%
Weight & dimensions
Width: 440 mm
Depth: 315 mm
Height: 44 mm
Weight: 3.8 kg
Packaging content
Cables included: AC. LAN (RJ-45)
Feature: Quick start guide
Packaging data
Package type: Box
Feature: Rubber feet
Feature: Resource CD
Package width: 590 mm
Package depth: 390 mm
Package height: 133 mm
Package weight: 6.2 kg
Certificates
Certification: FCC Class A. CE. VCCI. CB. UL. WEEE. RoHS
Logistics data
Country of origin: China
Master (outer) case width: 590 mm
Master (outer) case length: 390 mm
Master (outer) case height: 133 mm
Harmonized System (HS) code: 85176990
Master (outer) case gross weight: 6.2 kg
Products per master (outer) case: 1 pc(s)
