H610MHP 2.0 (H610.S1700.mATX.DDR4)
Κωδικός: 11187022 // Κωδικός προμηθευτή: H610MHP 2.0 // EAN: 4712960687691
Δείτε επίσης
Intel H610 chipset
With the Intel® H610 chipset and the 12th generation Intel® Core™ i9/ i7/ i5/ i3 processors and Intel® Pentium® processors. you will immediately be at the forefront of the battlefield. fueled by mind-blowing power and performance. From content creation to gaming. the Intel H610 chipset provides you with the power and performance you need.
HD Audio
Provides high quality sound with minimal loss of audio fidelity.
Hi-Fi Ground
BIOSTAR Hi-Fi Ground ( Golden Line ) is noise-blocking multi-layer PCB design to isolates analog audio signals from digital sources. Unique PCB layout is ideal for exceptional clarity and high fidelity sound.
Smart Ear
Smart EAR is a windows-based audio utility which allows you to easily adjust system volume. With its user-friendly GUI. you can also increase or decrease impedance setting (Low/High Gain) to optimize your headphone performance. You can easily enjoy high-quality and awesome sound.
HDMI 4K2K
The new 4K2K resolution enables high-definition image display with four times the resolution of full HD. 4K2K display is faithfully express bright. highly detailed content that fills the entire screen with lifelike images. Connectivity with PCs via a single HDMI cable for displaying 4K2K data.
DX12
DirectX 12 introduces the next version of Direct3D. the graphics API at the heart of DirectX. Direct3D is one of the most critical pieces of a game or game engine. and we've redesigned it to be faster and more efficient than ever before. Direct3D 12 enables richer scenes. more objects. and full utilization of modern GPU hardware.
PCIe M.2
PCIe M.2 32Gb/s delivers the highest bandwidth and lower latency. It is 3 times faster compared with PCIe M.2 10Gb/s.
PCIe 3.0
PCIe 3.0 is the ubiquitous and general-purpose PCI Express I/O standard. At 8GT/s bit rate. the interconnect performance bandwidth is doubled over PCIe 2.0. while preserving compatibility with software and mechanical interfaces.
SATAIII 6Gbps
SATAIII 6Gbps provides a higher bandwidth to retrieve and transfer HD media. With this super speed data transfer. SATAIII allows an incredible data boost which is 2x faster than the SATA II.
Dual DDR4
The primary advantages of DDR4 over DDR3. include higher module density. lower voltage requirements. coupled with higher data transfer rate.
PCIe 4.0 M.2
PCIe 4.0 M.2 delivers the highest bandwidth and lower latency. It is 2 times faster compared with PCIe 3.0 M.2.
USB 3.2 Gen1 Type-A
USB 3.2 Gen1 delivers a compelling performance boosts and can be used to connect multiple devices without worrying about compatibility. It is capable of data transfer speeds up to 5Gbps and backwards compatible with all existing USB products.
S-Hyper PWM
The S-Hyper PWM has DCR current sensing architecture and lossless characteristic. offering excellent precision in delivering stable power with 100% fixed voltage to ensure that critical components of the motherboard are under protected with the maximum performance and reliability.
Super Durable Solid Caps
The best quality solid state capacitors with ultra low ESR design. the Super Durable Solid Caps doubles the lifespan.
Super Durable Inductor
Super Durable Inductor brings the benefits of higher current capacity. lower energy loss and better power stability.
Moistureproof PCB
The PCB will be oxidizing easily by damp or absorbed moisture. and ionic migration or CAF (Conductive Anodic Filament) will be generated. Moistureproof PCB meets high density and high reliability requirements for moisture proof.
ESD Protection
ESD (Electrostatic Discharge) is the major factor to destroy the PC by electrical overstress (EOS) condition. ESD occurred by PC users when touch any devices connect to a PC. which may result in damage to the motherboard or parts. ESD protection is designed to protect the motherboard and equipment from damage by EOS.
UEFI BIOS
Unified Extensible Firmware Interface (UEFI) is a brand new framework that provides a revolutionary interface. It is a modern clear and easy-to-use graphical user interface. The UEFI comes with a colorful easy-understand icons leads users into the setup layer directly.
BIO-Flasher
BIO-Flasher is a convenient BIOS update tool. Just launch this tool and put the BIOS on USB pen driver before entering the OS. You can update your BIOS with only a few clicks without preparing an additional floppy disk or other complicated flash utility.
A.I FAN
With A.I FAN users can ensure that their gaming PC can maintain its performance while staying cool. According to different cooling needs and usage scenarios. users can control speed modes. Allows users to have more customizability of fan modes and automatically detects different temperatures to make fan operate at defined speed for optimal cooling performance.
A.I TP Control
A.I TP Control is designed for overclockers. It provides a user-friendly BIOS environment that overclockers can adjust the temperature setting to keep your PC safe and enjoy extreme overclocking performance.
Smart Update
Biostar Smart Update is a utility that can help users run online update. It can download the drivers for your motherboard from Biostar official website and install them automatically.
HDMI
The terms HDMI and HDMI High-Definition Multimedia Interface. and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator. Inc. in the United States and other countries.
Processor
Processor manufacturer: Intel
Processor socket: LGA 1700
Maximum number of SMP processors: 1
Processor thermal power (max): 65 W
Memory
Supported memory types: DDR4-SDRAM
Number of memory slots: 2
Memory slots type: DIMM
Memory channels: Dual-channel
Supported memory clock speeds: 1866.2133.2400.2666.2933.3200 MHz
Supported memory clock speed (max): 3200 MHz
Maximum internal memory: 64 GB
Maximum internal memory per slot: 32 GB
Storage controllers
Supported storage drive types: SSD
Supported storage drive interfaces: M.2. PCI Express 3.0. SATA III
Graphics
Parallel processing technology support: Not supported
Feature: HDCP
DirectX version: 12.0
Internal I/O
USB 2.0 connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of SATA III connectors: 4
Feature: Front panel audio connector
Feature: Front panel connector
Feature: ATX Power connector (24-pin)
Feature: CPU fan connector
Number of chassis fan connectors: 2
Feature: EPS power connector (8-pin)

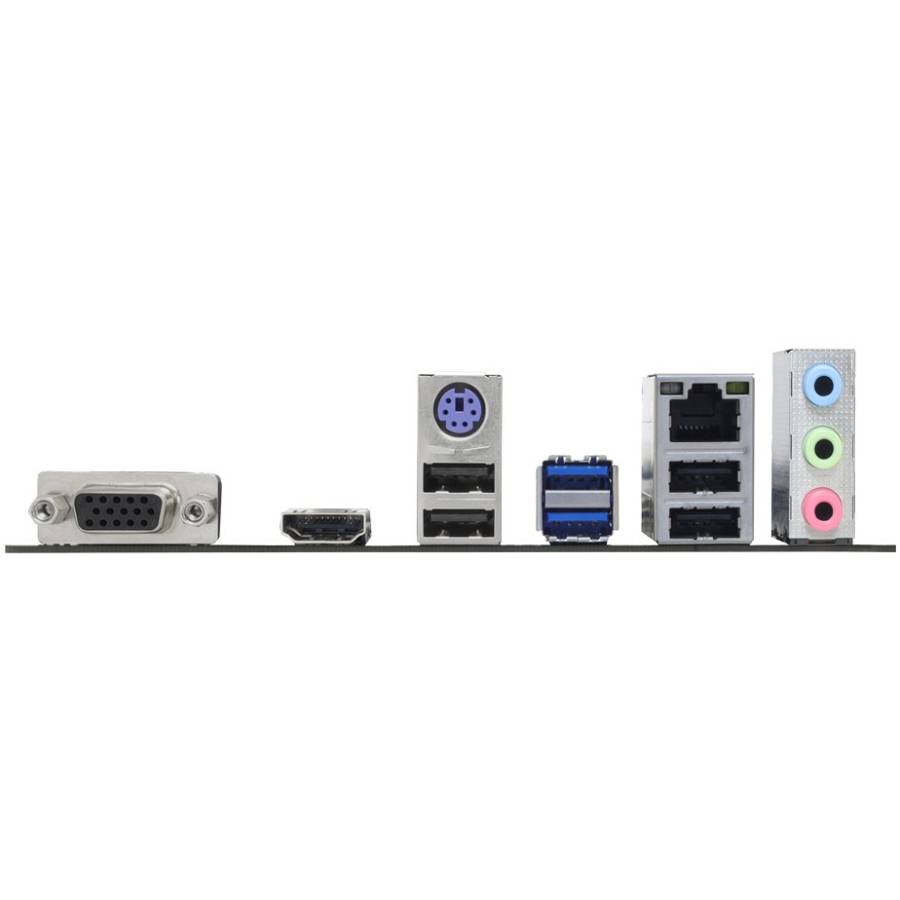

Rear panel I/O ports
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1
Headphone outputs: 3
Network
Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
LAN controller: Realtek RTL8111H
Features
Motherboard chipset: Intel H610
Audio chip: Realtek ALC887 / Realtek ALC897
Audio output channels: 7.1 channels
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Windows operating systems supported: Windows 10 x64. Windows 11 x64
Expansion slots
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 1
BIOS
BIOS type: UEFI
Feature: Clear CMOS jumper
Weight & dimensions
Width: 198 mm
Depth: 228 mm
Packaging content
Cables included: SATA
Feature: M.2 standoff included
