PC MONITORS

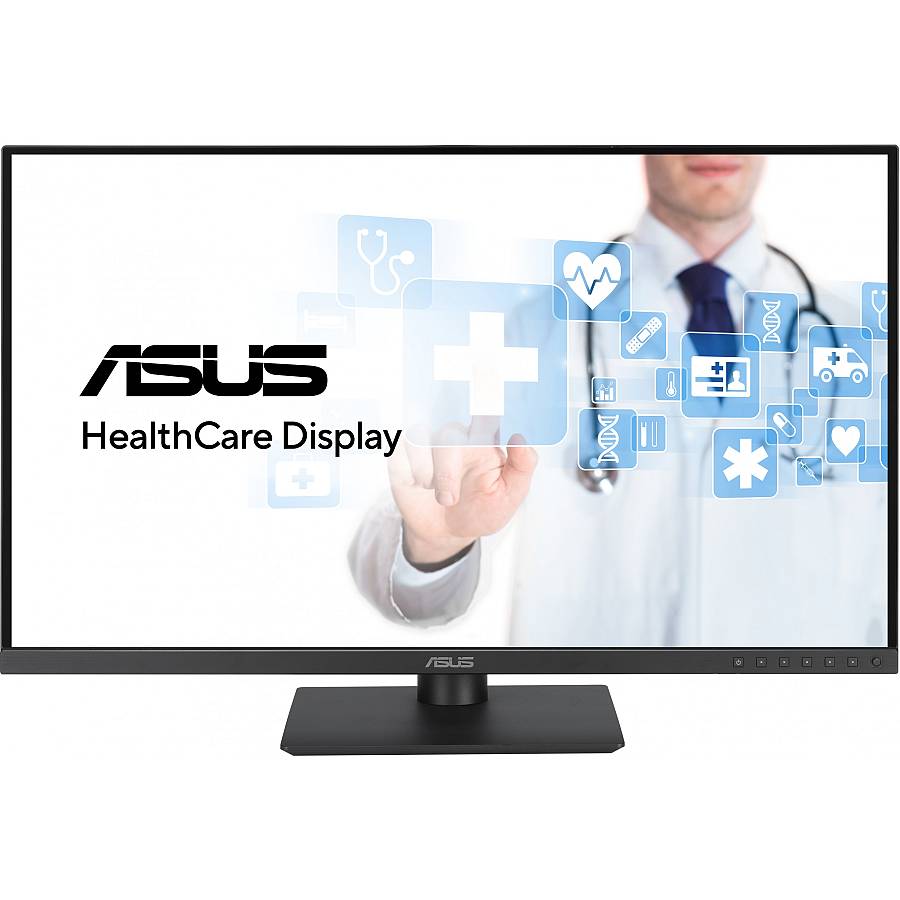

HealthCare Monitor
ASUS HealthCare Displays provides comprehensive line-up targeting for every HealthCare institutions needs. ASUS HealthCare Displays are factory calibrated with DICOM® Part 14 GSDF (Grayscale Standard Display Function) compliance to ensure visual accuracy and consistency in finest details. ASUS HA2441A features 23.8-inch 3.6MP Anti-Glare. Low-Reflection (AGLR) IPS panel. ASUS exclusive Hardware Calibration Technology supports auto calibration to keep DICOM long term accuracy. ASUS HealthCare Displays delivers high-performance. precise and stable capabilities to fit any scenario.

Lifelike Views Vith 178° Wide View Angle
ASUS HA2441A IPS panel provides 178° viewing angles. both horizontally and vertically. so you can reproduce excellent contrast. ensuring the accurate and clear medical images from almost any direction.

Display
Display diagonal: 60.5 cm (23.8")
Display resolution: 2560 x 1440 pixels
HD type: Quad HD
Native aspect ratio: 16:9
Display technology: LCD
Panel type: IPS
Feature: LED backlight
Backlight type: LED
Display brightness (typical): 300 cd/m²
Response time: 5 ms
Feature: Anti-glare screen
Screen shape: Flat
Contrast ratio (typical): 900:1
Maximum refresh rate: 75 Hz
Viewing angle. horizontal: 178°
Viewing angle. vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.206 x 0.206 mm
Viewable size. horizontal: 52.7 cm
Viewable size. vertical: 29.6 cm
Display diagonal (metric): 61 cm
Colour gamut standard: sRGB
Colour gamut: 100%
Performance
Feature: Flicker-free technology
Feature: Low Blue Light technology
Design
Market positioning: Medical
Product colour: Black
Feature: Frameless design
Feet colour: Black

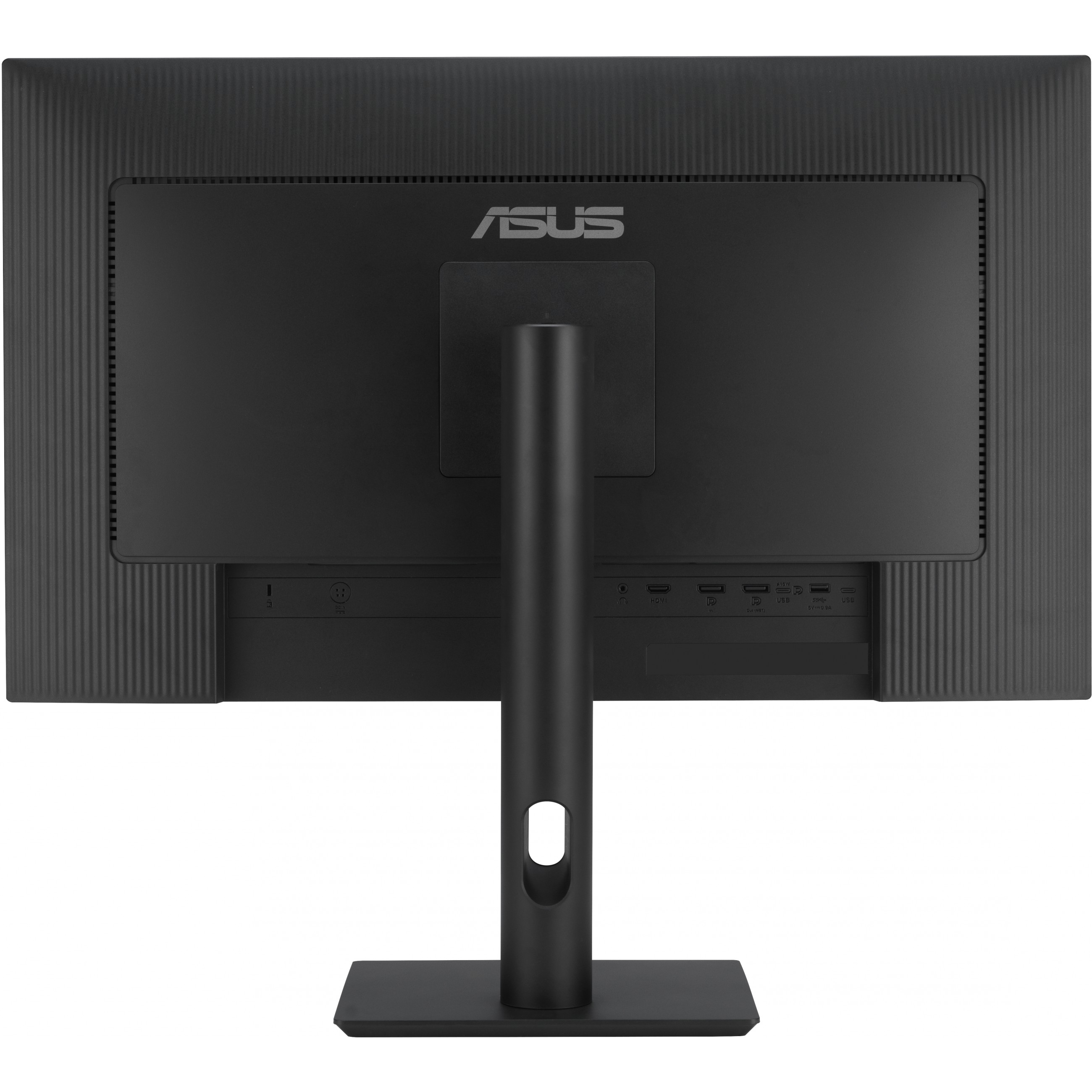

Ports & interfaces
Feature: Built-in USB hub
USB hub version: 3.2 Gen 1 (3.1 Gen 1)
Number of USB Type-C upstream ports quantity: 1
USB Type-A downstream ports quantity: 3
USB Type-C downstream ports quantity: 1
Feature: USB Type-C DisplayPort Alternate Mode
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 15 W
Feature: HDMI
HDMI ports quantity: 1
HDMI version: 2.0
DisplayPorts quantity: 2
DisplayPort version: 1.4
Feature: Headphone out
Headphone outputs: 1
Feature: HDCP
HDCP version: 2.2

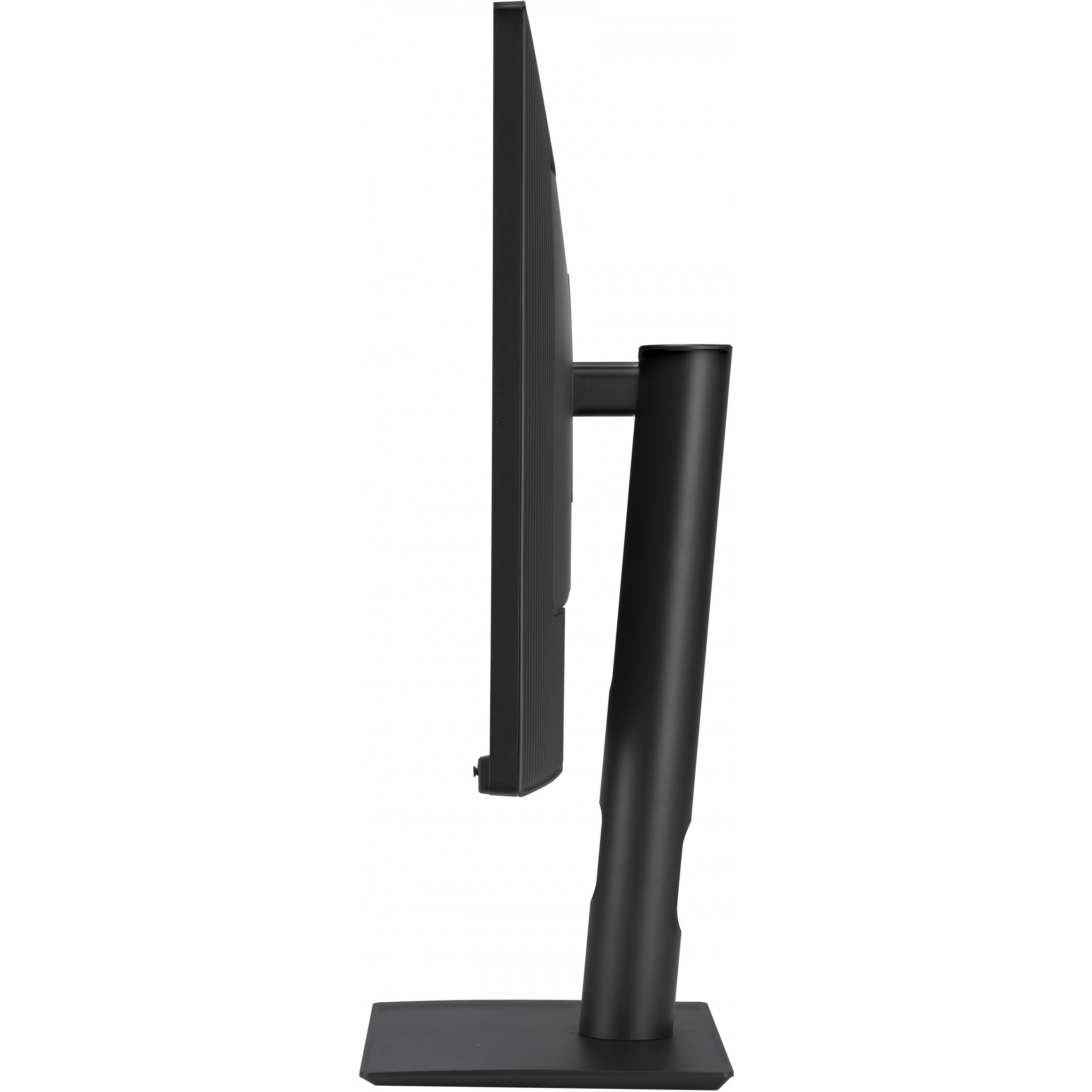

Ergonomics
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: Wall mountable
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Height adjustment
Adjustable height (max): 13 cm
Feature: Pivot
Pivot angle: -90 - 90°
Feature: Swivelling
Swivel angle range: -30 - 30°
Feature: Tilt adjustment
Tilt angle range: -5 - 23°
Power
Energy efficiency class (SDR): E
Energy efficiency class (HDR): G
Energy consumption (SDR) per 1000 hours: 17 kWh
Energy consumption (HDR) per 1000 hours: 25 kWh
Power consumption (typical): 21.8 W
Power consumption (off): 0.3 W
Power consumption (PowerSave): 0.5 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G
European Product Registry for Energy Labelling (EPREL) code: 1854533
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 5 - 90%
Weight & dimensions
Width (with stand): 539 mm
Depth (with stand): 197 mm
Height (with stand): 515 mm
Weight (with stand): 5.4 kg
Width (without stand): 539 mm
Depth (without stand): 44 mm
Height (without stand): 322 mm
Weight (without stand): 3.7 kg
Packaging data
Package width: 620 mm
Package depth: 127 mm
Package height: 390 mm
Package weight: 8.2 kg
Package type: Box
Sustainability
Feature: Sustainability compliance
Sustainability certificates: ENERGY STAR. Forest Stewardship Council (FSC) Mix
Other features
Brand specific technologies: Eye Care+
