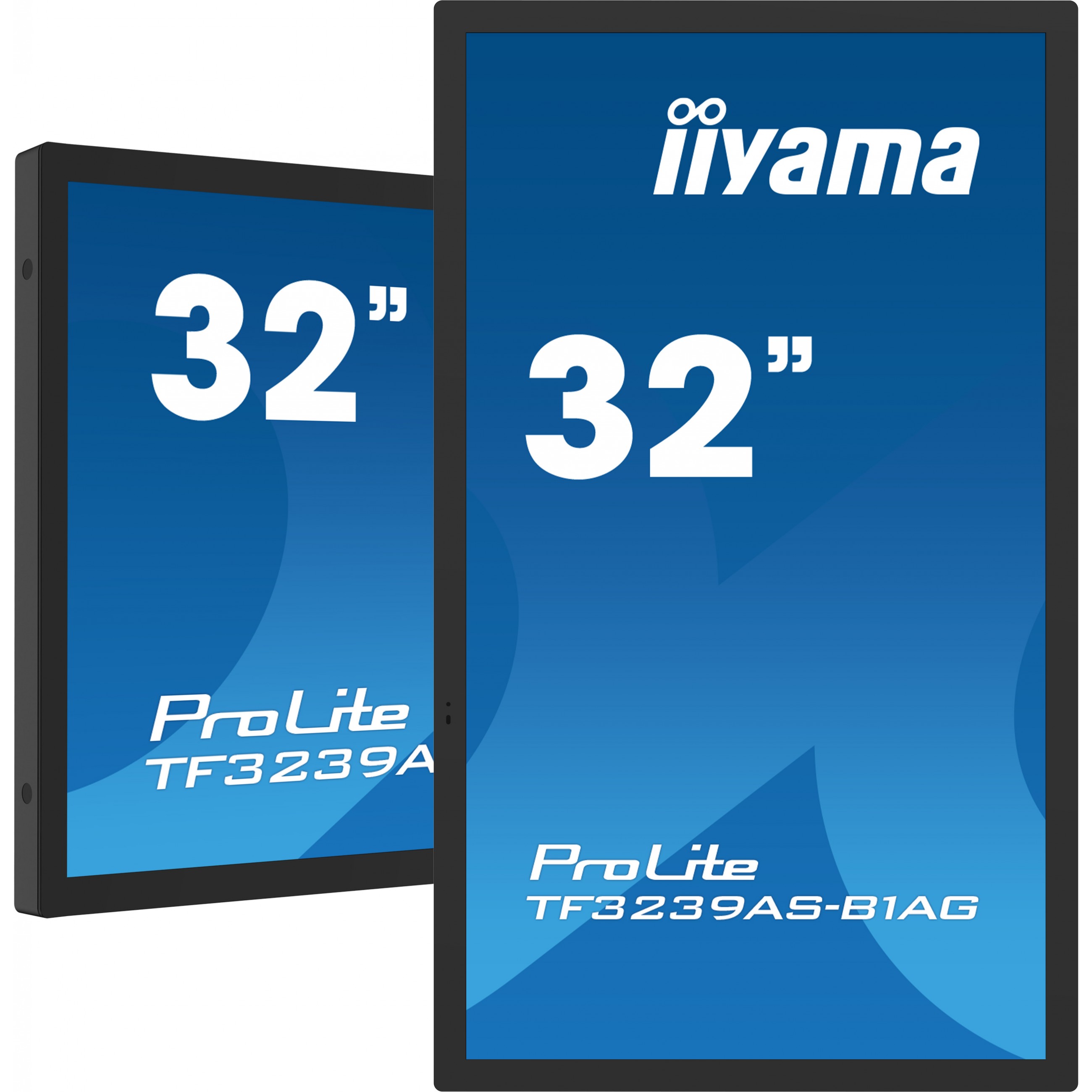

32" All-in-One PCAP Interactive Display inspired by technology and designed for creative spaces and sharing
Enjoy an all-in-one interactive display that combines the best in PCAP Touchscreen technology. offering the versatility and freedom of Android OS. easily customized to your needs by installing applications directly to it. Offering a powerful. yet flexible user experience. fostering creative communication with the benefits of a secure and controllable Touchscreen.

The refined edge-to-edge glass design of the TF3239AS-B1AG lends itself for integration into a large variety of environments where polished design and functionality are needed. like Huddle spaces in the modern office space. Retail shops and Kiosks.

The on-board iiSignage² CMS (Content Management System) gives you total control of your messaging and advertising. remotely and safely. The EShare App enables you to bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wireless easier than ever before| while the FailOver feature ensures your content is always actively displayed through your choice of inputs

For ease of integration. the TF3239AS-B1AG can be equipped with optional external mounting brackets (OMK4-3).

Android OS
Thanks to Android OS. you can easily customize the display to your needs by installing applications directly to it.

iiSignage²
iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.

Retail Instalations
The interactive 4K Touchscreens are the key for immersive interactive experiences for spatial retail design. Allow customers to explore your website right there and then or engage with a range of creative or experiential applications you want to host. The flexibility of either landscape or portrait modes with 24/7 Operation. built-in Android and MediaPlayer make this SERIES displays one of the most adaptable Touchscreens solutions around.

Huddle Spaces
Turn these small meeting rooms into neat Collaboration spaces by employing the embedded applications like Android OS. EShare and Whiteboard. a selection of intuitive and practical tools installed on our PCAP interactive Touchscreens. With Android OS you can easily customize the display by installing applications directly to it. With the EShare app you can share. stream and edit content from any device directly on screen and transform your team meetings into an easy. fast and seamless interactive session.

Signal FailOver
FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser. Media Player and Custom) and ensures your content is always actively displayed. assuring active content at all times.

Touch through-glass
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows. real estate office. in-store for POS or restaurants.

Display
Panel type: IPS
Feature: LED backlight
Display diagonal: 80 cm (31.5")
Display technology: LED
Display resolution: 1920 x 1080 pixels
Display brightness: 500 cd/m²
HD type: 2.4K Ultra HD
Feature: Touchscreen
Number of simultaneous touchpoints: 40
Feature: Multi-touch
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 1200:1
Viewing angle. horizontal: 178°
Viewing angle. vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.363 x 0.363 mm
Active display area (W x H): 698.4 x 392.8 mm
Display diagonal (metric): 80 cm
Horizontal scan range: 28 - 160 kHz
Native refresh rate: 60 Hz
Haze rate: 25%
Surface hardness: 3H
Glass thickness: 3 mm
Ports & interfaces
HDMI ports quantity: 2
HDMI version: 2.0
DisplayPorts quantity: 1
DisplayPort version: 1.2
Feature: USB port
USB ports quantity: 3
USB version: 2.0
USB connector type: USB Type-A. USB Type-B
USB 2.0 Type-B ports quantity: 1
Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Feature: RS-232C
Audio
Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 20 W
Design
Product design: Digital signage flat panel
Placement supported: Indoor
Orientation: Horizontal/Vertical
Product colour: Black
Screen shape: Flat
Feature: VESA mounting
Panel mounting interface: 200 x 200 mm
Bezel width (bottom): 2.2 cm
Bezel width (side): 2.2 cm
Bezel width (top): 2.2 cm
Performance
Purpose: Universal
Feature: On Screen Display (OSD)
Number of OSD languages: 13
On Screen Display (OSD) languages: Czech. Danish. German. Dutch. English. Spanish. Finnish. French. Italian. Polish. Russian. Slovenian
Operating hours (hours/days): 24/7
Feature: HDCP
International Protection (IP) code: IP54
HDCP version: 2.2
Mean time between failures (MTBF): 50000 h
Power
Power consumption (typical): 50 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
Energy efficiency class (SDR): F
Energy consumption (SDR) per 1000 hours: 31 kWh
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G
Computer system
Feature: Computer system
Feature: Built-in processor
Processor manufacturer: ARM
Processor architecture: ARM Cortex-A53+Cortex-A73
Internal memory: 4 GB
Internal storage capacity: 32 GB
Operating system installed: Android
Operating system version: 11
Weight & dimensions
Display width: 746.2 mm
Display depth: 62.4 mm
Display height: 440.7 mm
Display weight: 13.2 kg
Packaging data
Package width: 840 mm
Package depth: 149 mm
Package height: 560 mm
Package volume: 16600 cm³
Packaging content
Feature: Remote control included
Feature: Batteries included
Cables included: AC. DisplayPort. HDMI. USB
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Certificates
Certification: TCO Certified. CB. TÜV-Bauart. EAC. RoHS support. ErP. WEEE. REACH
