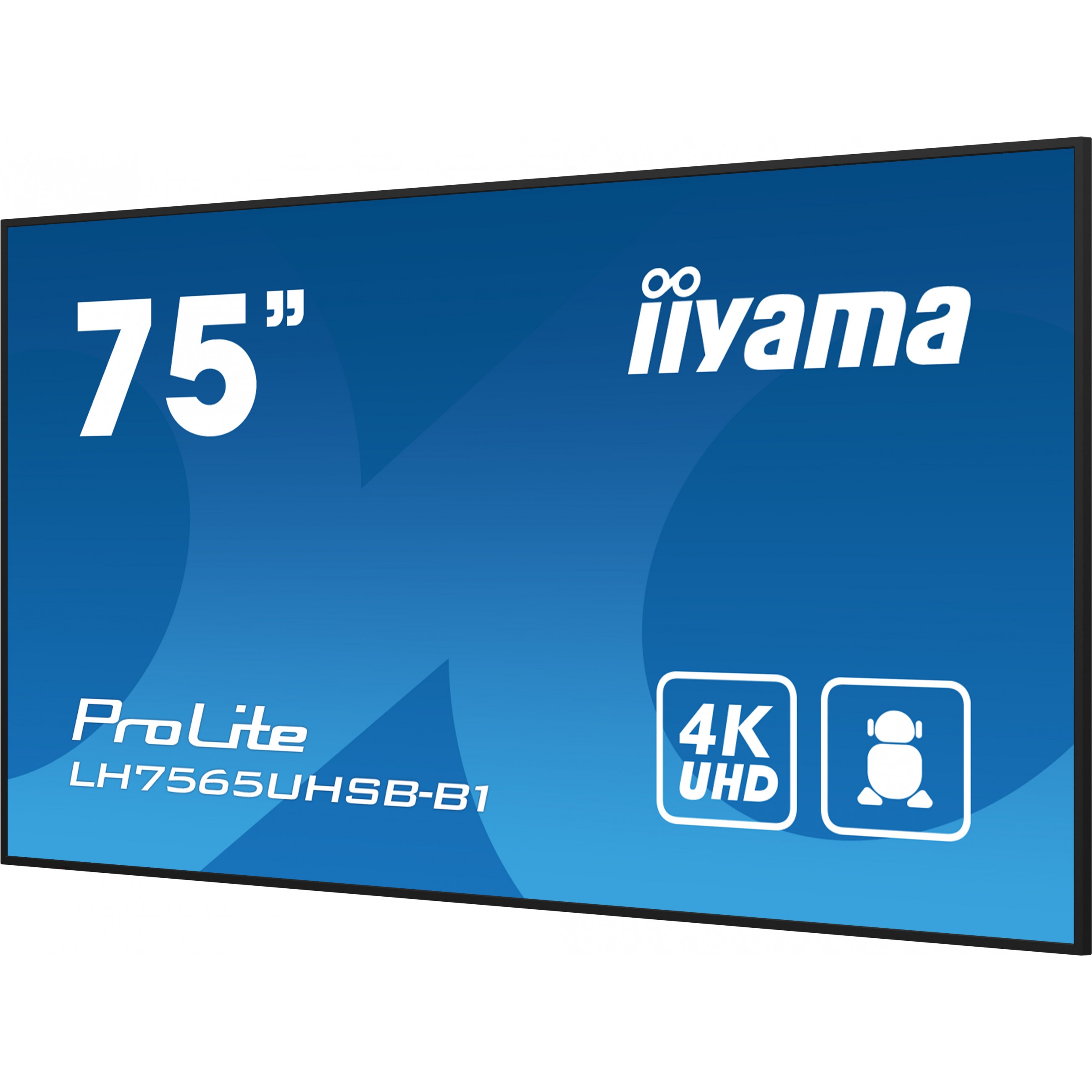

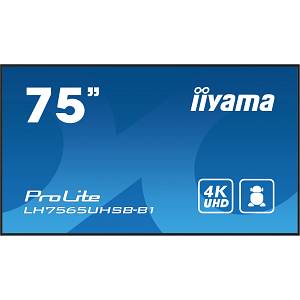

Create dynamic. show stopping content. designed to entice and captivate your audience. The LH7565UHSB vivid-bright display. boasting 800cd/m². can be operated in landscape or portrait orientation in continual around the clock environments 24/7 without any interruption. Its versatility can be adapted to your industry’s display needs. On-board Android 11 OS means you can easily customize the display to your needs and smoothly run third party applications. including multiple CMS platforms. The on-board iiSignage² (Content Management System) gives you total control of your messaging and advertising remotely and safely. The Signal FailOver feature ensures your content is always actively displayed through your choice of inputs for mission critical environments. The built-in (and removable) WiFi module means this series is ready for remote content delivery using your network. With iiControl (DMS). iiShare and the integrated EShare app (wireless screen sharing) you bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wirelessly easier than ever before.

Display
Panel type: IPS
Display diagonal: 189.2 cm (74.5")
Display technology: LED
Display resolution: 3840 x 2160 pixels
Display brightness: 800 cd/m²
HD type: 4K Ultra HD
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 1200:1
Viewing angle. horizontal: 178°
Viewing angle. vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.429 x 0.429 mm
Active display area (W x H): 1650 x 928 mm
Display diagonal (metric): 189 cm
Horizontal scan range: 28 - 160 kHz
Native refresh rate: 60 Hz
Haze rate: 1%
Ports & interfaces
HDMI ports quantity: 2
HDMI version: 2.0
DisplayPorts quantity: 1
DisplayPort version: 1.2
Feature: USB port
USB ports quantity: 2
USB version: 2.0
Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Feature: Wi-Fi
Wi-Fi standards: Wi-Fi 5 (802.11ac)
Audio (L/R) in: 1
Feature: RS-232 interface
Feature: RS-232C
Audio
Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 20 W
Design
Product design: Kiosk design
Placement supported: Indoor/outdoor

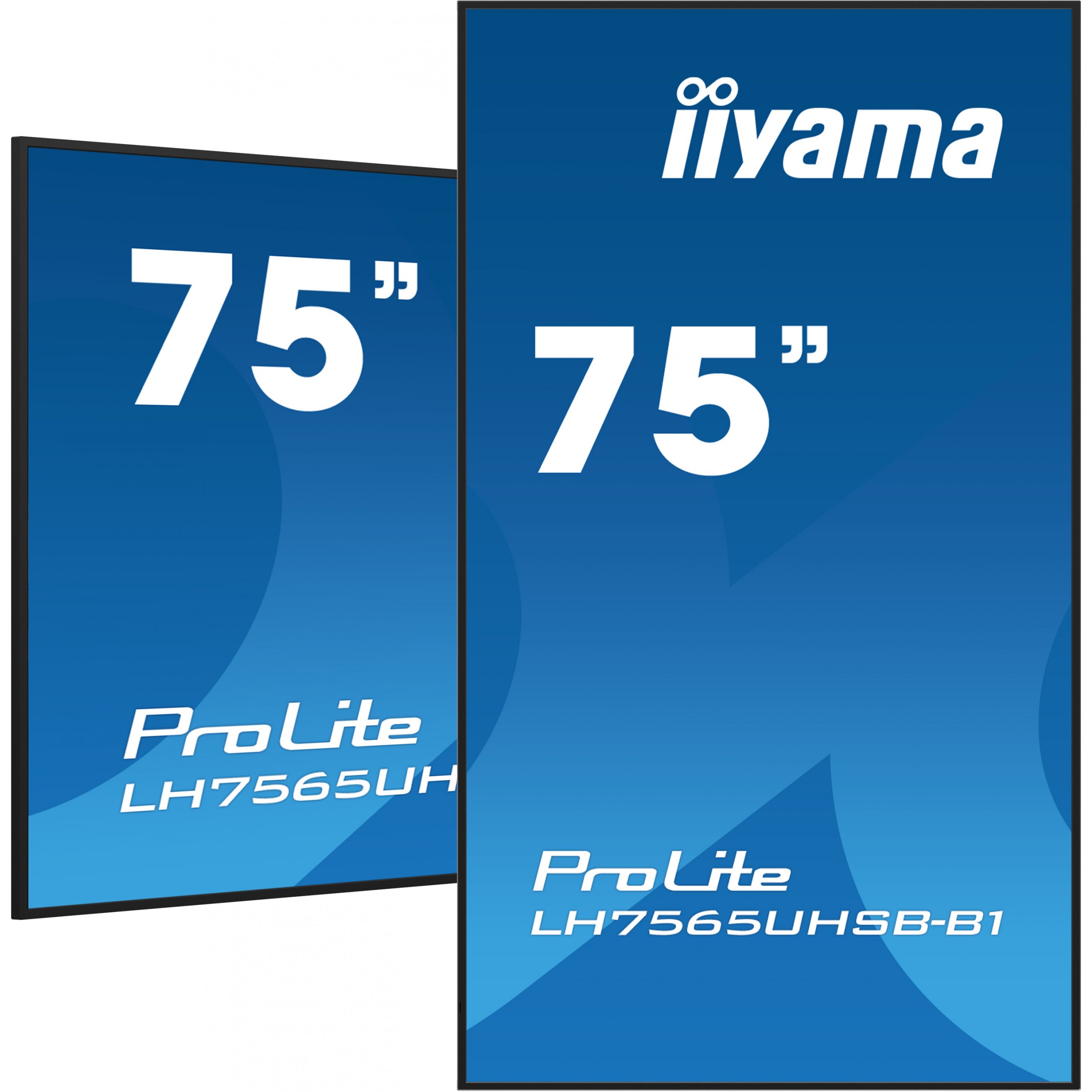

Orientation: Horizontal/Vertical
Product colour: Black
Feature: VESA mounting

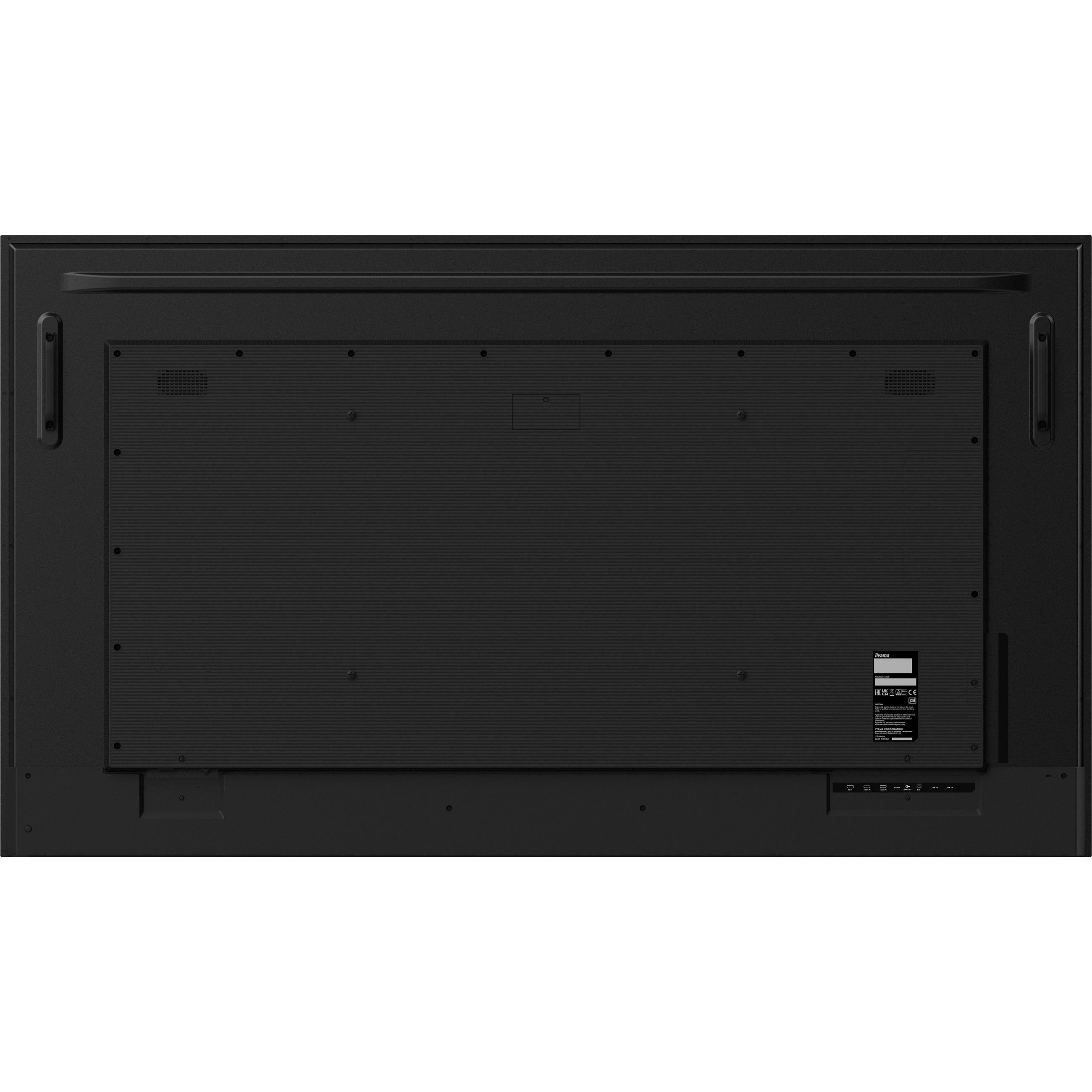

Panel mounting interface: 600 x 400 mm
Bezel width (bottom): 1.49 cm
Bezel width (side): 1.49 cm
Bezel width (top): 1.49 cm
Bezel colour: Black
Performance
Purpose: Commercial
Number of OSD languages: 8
On Screen Display (OSD) languages: Simplified Chinese. Czech. German. English. Spanish. French. Italian. Japanese. Polish. Russian
Operating hours (hours/days): 24/7
Feature: HDCP
HDCP version: 2.2
Mean time between failures (MTBF): 50000 h
Power
Power consumption (typical): 107 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
Energy efficiency class (SDR): E
Energy consumption (SDR) per 1000 hours: 107 kWh
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G
Computer system
Feature: Computer system
Feature: Built-in processor
Processor manufacturer: ARM
Processor family: ARM Cortex
Processor architecture: ARM Cortex-A73
Processor cores: 8
Internal memory: 4 GB
On-board graphics card model: ARM Mali-G52
Internal storage capacity: 32 GB
Operating system installed: Android 11
Weight & dimensions
Display width: 1679.5 mm
Display depth: 55 mm
Display height: 958.5 mm
Display weight: 29 kg
Width (with stand): 1679.5 mm
Depth (with stand): 55 mm
Height (with stand): 958.5 mm
Weight (with stand): 29 kg
Packaging data
Package width: 1883 mm
Package depth: 1883 mm
Package height: 1140 mm
Package weight: 40.5 kg
Packaging content
Feature: Remote control included

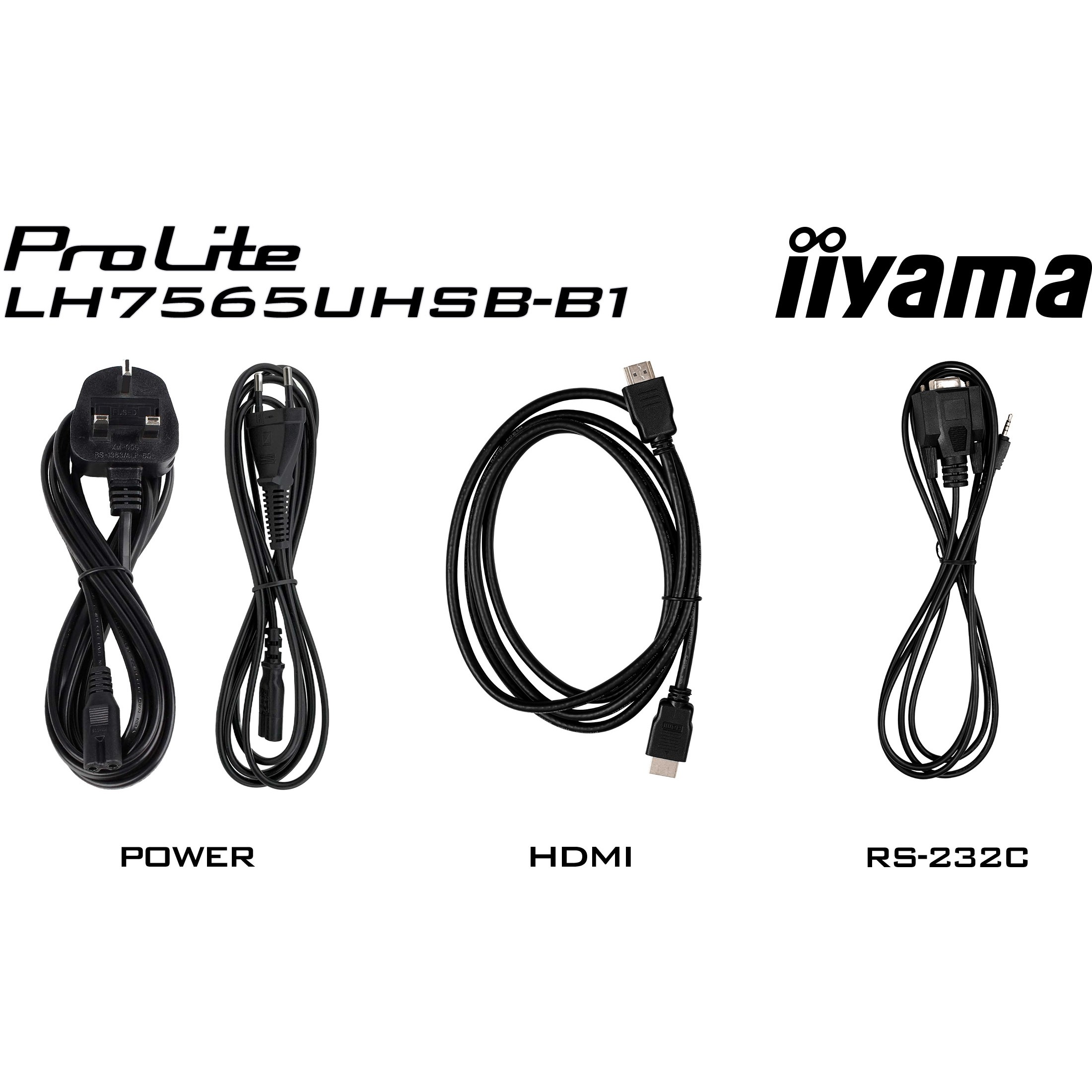

Cables included: HDMI. Power. RS-232
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): -20 - 60%
Storage temperature (T-T): -20 - 60 °C
