DIGITUS Wandgehäuse SOHO PRO 6HE 325x315x300 mm 10 schwarz
Product code: 14518022 // MPN: DN-49101 // EAN: 4016032493631
New entry
Similar products
The DIGITUS® wall-mounted enclosure SOHO Pro series is characterized by its efficient delivery in an optimized flat pack and particularly user-friendly installation.
- Compact housing for installations where space is limited
- Simplified logistics: delivered unassembled in an optimized flat pack
- Quickly ready for use: Particularly user-friendly. quick installation with just a few screws

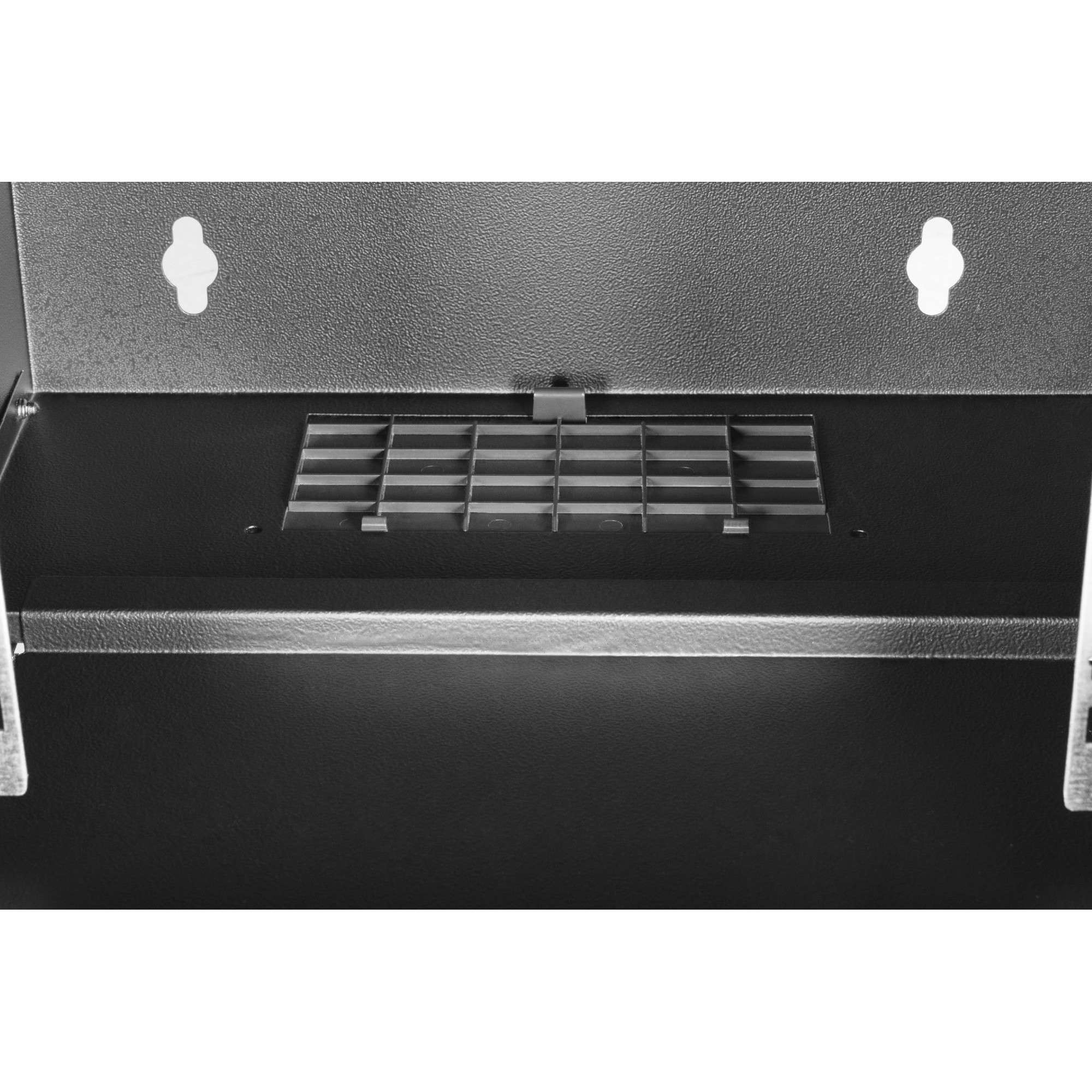

- Flexible cable routing options thanks to protected openings in the roof and floor
- Lockable safety glass door with 200° door opening angle
- Depth-adjustable 254 mm (10") profile rails
- Load capacity for the installation of components: 30 kg
Whether in the home. office or in sub-distribution boards with limited space: With the compact 254 mm (10") solutions from the SOHO Pro series. you can install your network wherever you want. Available in three height units (6U. 9U. 12U). the wall-mounted enclosures are equipped with a full glass door and a cable entry in the roof and base. A pair of galvanized 254 mm (10") profile rails labelled with legible height units are installed inside. These can be adjusted in depth. Each cabinet is a robust steel construction made of up to 1.5 mm thick sheet steel. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). The door hinges can be changed. The network enclosures are supplied unassembled in an optimized flat pack. Assembly takes place in just a few steps and is child's play thanks to the enclosed step-by-step instructions.
Features
Rack capacity: 6U
Type: Wall mounted rack
Maximum weight capacity: 60 kg
Product colour: Black
Material: Steel
Frame type: Closed
Back door construction: Steel
Front door construction: Glass
Side panel construction: Steel
Side panel style: Blind
Back door style: Blind
Front door style: Glass door
Feature: Key lock
Feature: Front door key lock
Feature: Rack rails
Feature: Adjustable mounting rails
Feature: Adjustable depth
Cooling type: Passive
Feature: Cable management
Door opening angle: 200°
International Protection (IP) code: IP20
Weight & dimensions
Size (imperial): 25.4 cm (10")
Width: 316 mm
Depth: 298 mm
Height: 324 mm
Weight: 4.58 kg
Packaging data
Feature: Quick installation guide
Package width: 349 mm
Package depth: 330 mm
Package height: 153 mm
Package weight: 4.98 kg
