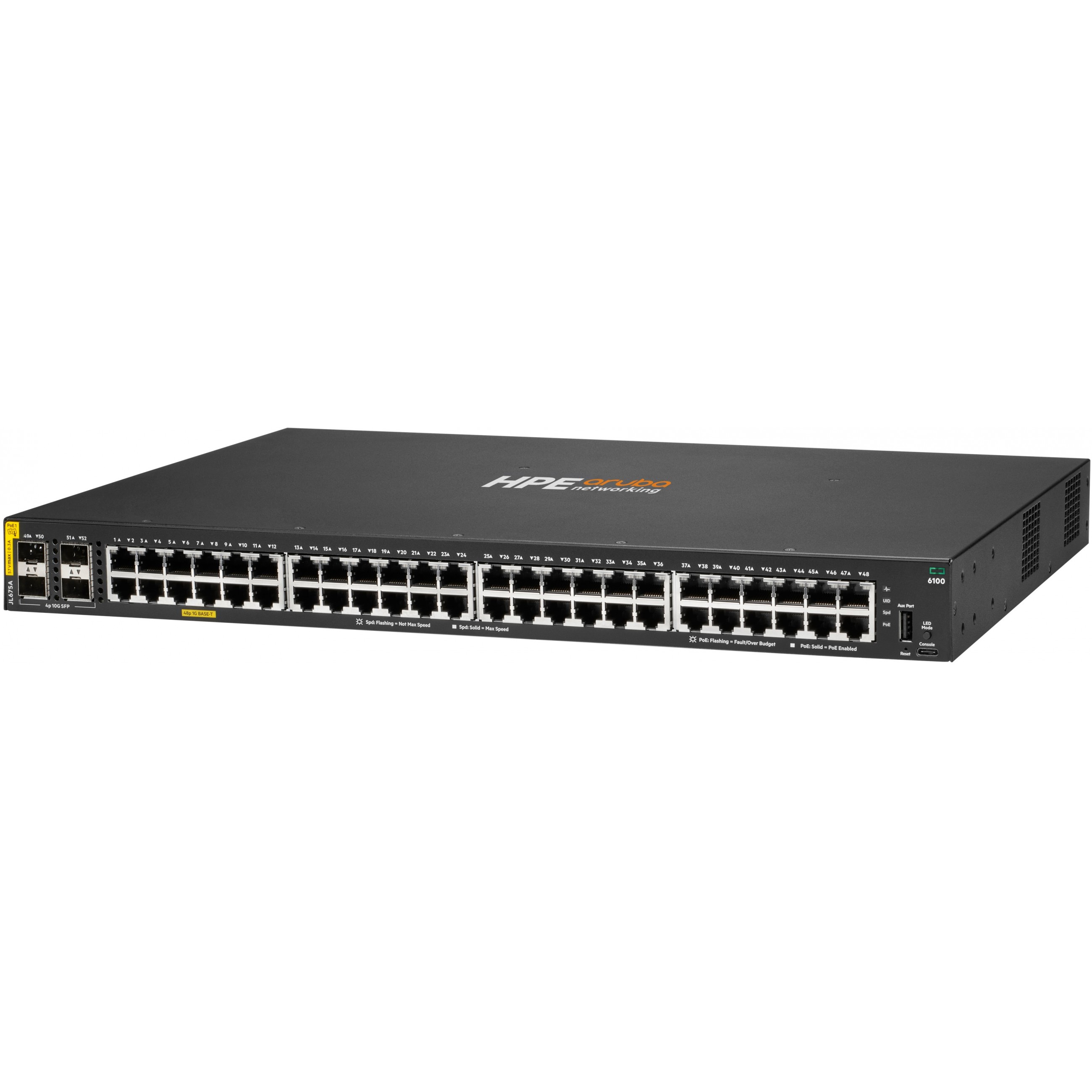

48+4P HP Enterprise Aruba 6100 48G PoE+ (370W) 4SFP+ Switch M RM
Product code: 14045122 // MPN: JL675A#ABB // EAN: 0190017347974
New entry
Similar products
The HPE Aruba Networking CX 6100 Switch Series is a modern family of entry level access switches ideal for branch offices. mid-market enterprise. and SMB networks. Designed for reliable. simple. and secure access. this switch family provides a convenient wired access solution for enterprise networks supporting IoT. mobile. and cloud applications. Prepare your network for tomorrow’s unpredictable demands with a powerful ASIC and the programmable HPE Aruba Networking CX Switch Operating System (AOS-CX) to deliver a more consistent. more efficient operator experience. This Layer 2 switch series has convenient built-in high speed uplinks with up to 740W of IEEE 802.3at Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless 12 port model is ideal for use in quiet work spaces. With robust QoS. support for static routing. and IPv6. these switches also simplify ownership with no switch software licensing requirements.
What is new supporting point:
Silent deployment with compact and fanless 12-port PoE model.
Simplify IT operations with next-gen Layer 2 switch series that provides entry level. reliable. and convenient wired access connectivity.
Right size with 12. 24. and 48 port 1U models with convenient built-in 1/10 GbE uplinks and up to 740W of Class 4 PoE.
Flexibility to manage and simplify configurations with HPE Aruba Networking Central. HPE Aruba Networking Switch Multi-Edit Software. easy to use Web GUI. or industry standard CLI.
Ready for software defined networking with REST APIs.
Management features
Switch type: Managed
Switch layer: L3
Feature: Quality of Service (QoS) support
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity: 4
Network
Feature: 10G support
Feature: Port mirroring
Feature: Flow control support
Feature: Link aggregation
Feature: Spanning tree protocol
Feature: VLAN support
Data transmission
Switching capacity: 176 Gbit/s
Throughput: 98.6 Mpps
MAC address table: 8192 entries
Latency (1 Gbps): 1.9 µs
Latency (10 Gbps): 1.8 µs
Feature: Jumbo frames support
Packet buffer memory: 12.38 MB
Security
DHCP features: DHCP client
Feature: Access Control List (ACL)
Feature: IGMP snooping
Authentication: MAC-based authentication
Authentication type: RADIUS. TACACS+
Multicast features
Feature: Multicast support
Design
Feature: Rack mounting
Feature: Stackable
Form factor: 1U
Product colour: Black
Airflow direction: Side-to-side airflow
Performance
Virtual stacking (units): 16
Feature: Built-in processor
Processor model: ARM Cortex-A9
Processor frequency: 1016 MHz
Memory type: DDR3-SDRAM
Internal memory: 4096 MB
Flash memory: 16 MB
Power
Power source: AC
Feature: Power supply included
AC input voltage: 200 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (max): 45 W
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget: 370 W
Operational conditions
Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 15 - 95%
Storage relative humidity (H-H): 15 - 90%
Operating altitude: 0 - 3000 m
Weight & dimensions
Width: 44 mm
Depth: 442 mm
Height: 305 mm
Weight: 5 kg
Logistics data
Harmonized System (HS) code: 85176990
