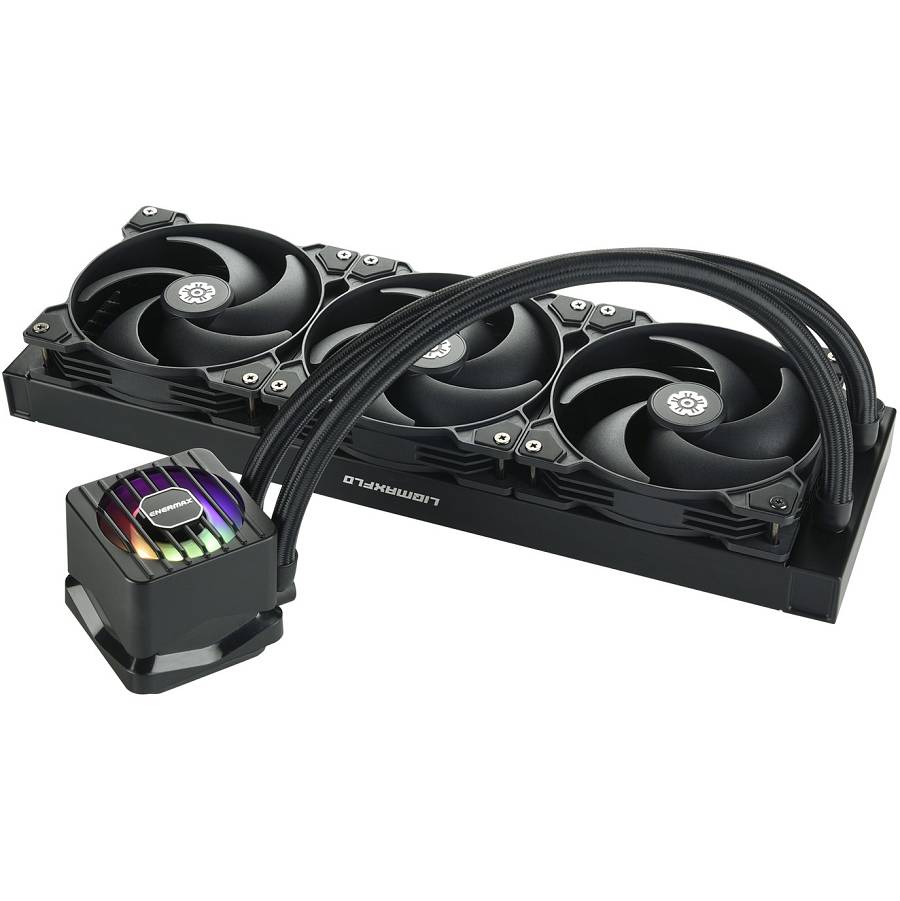

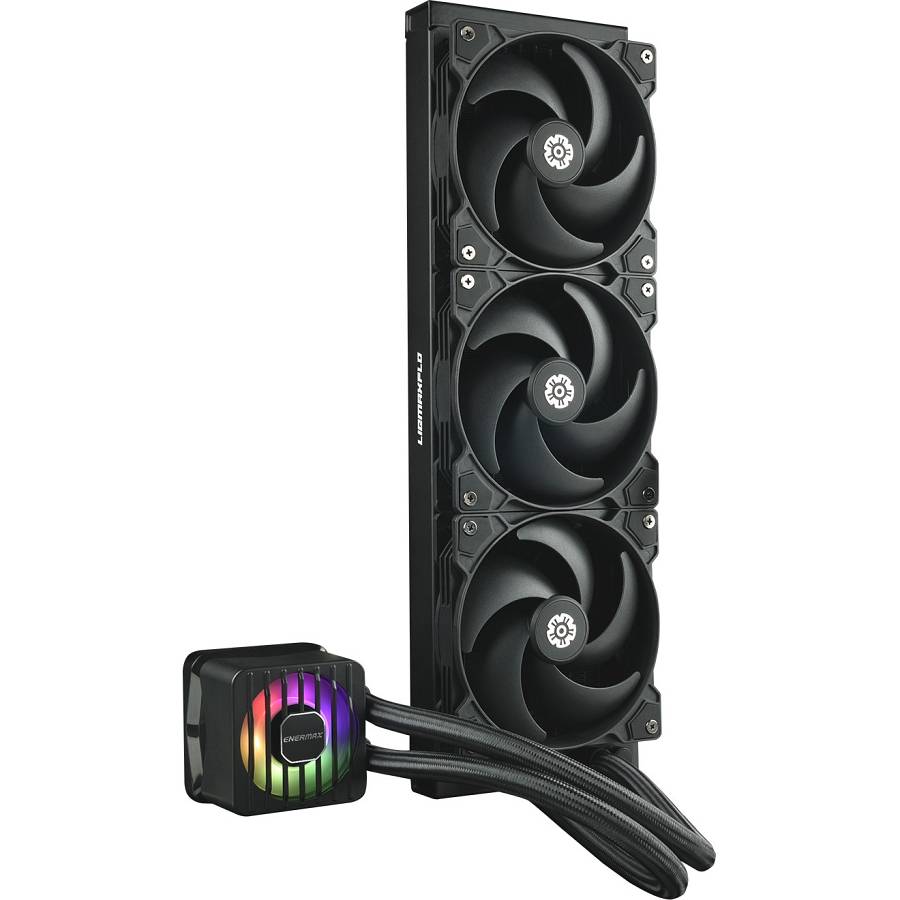

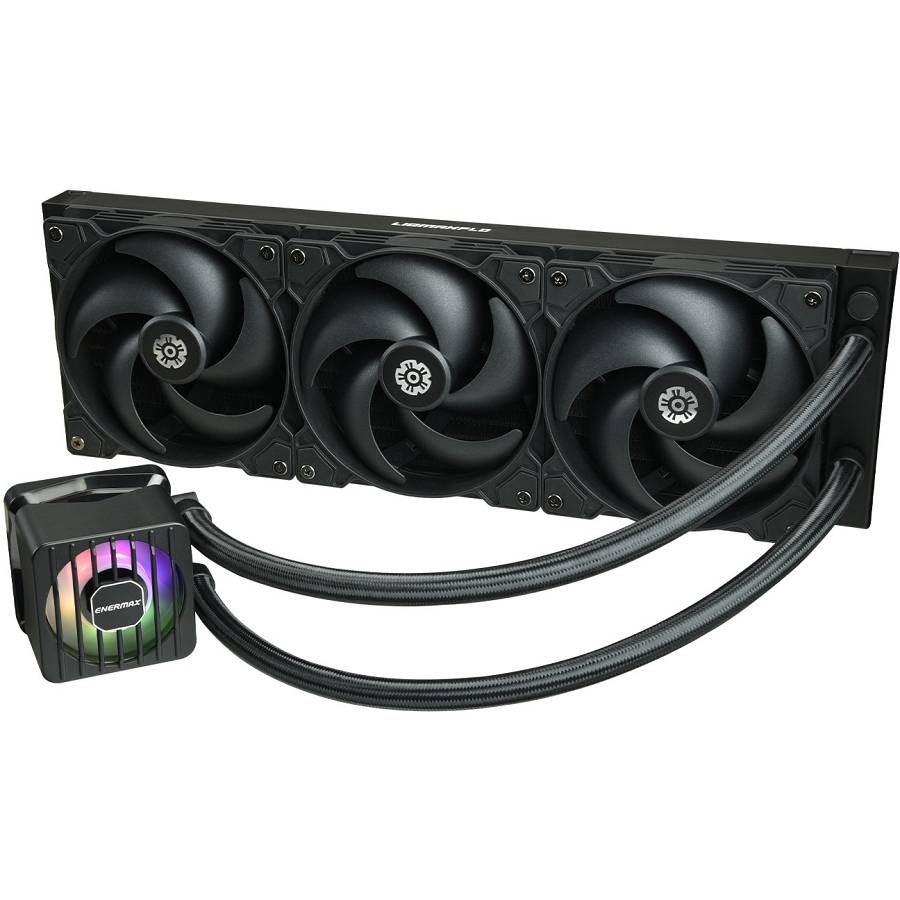

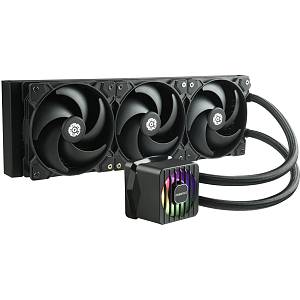

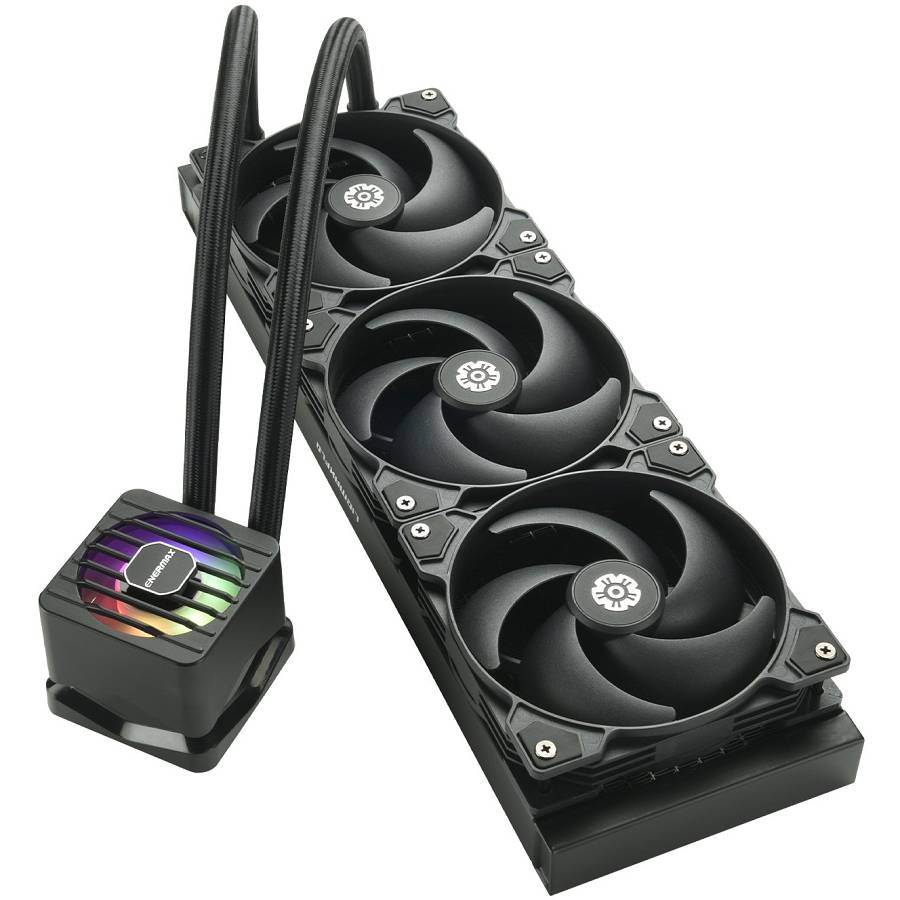

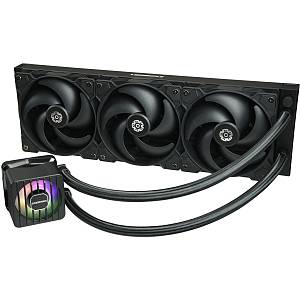

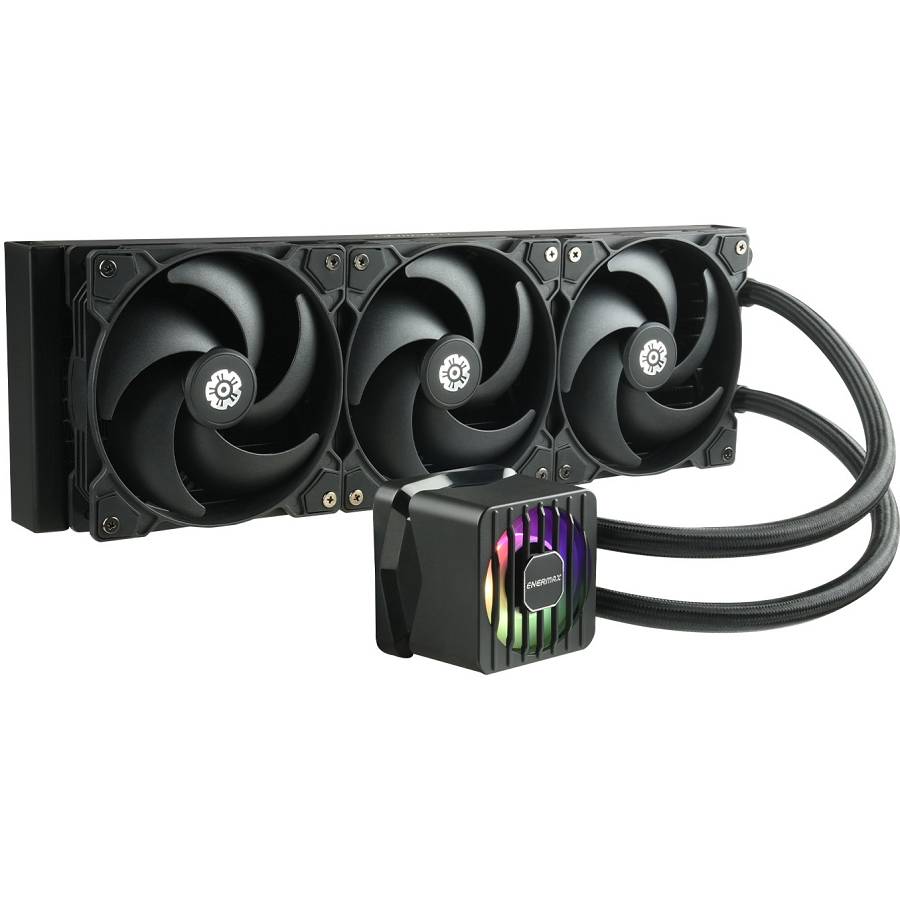

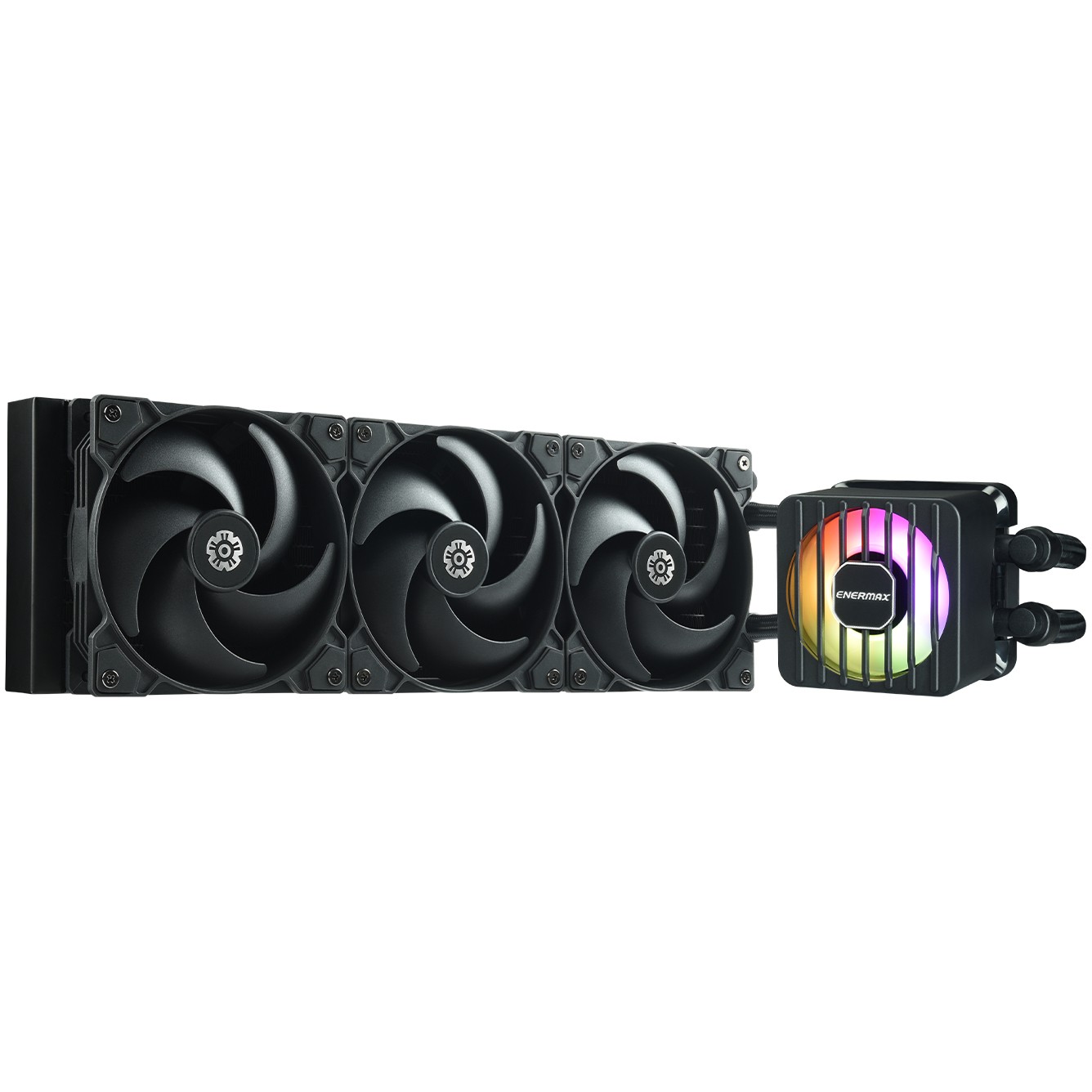

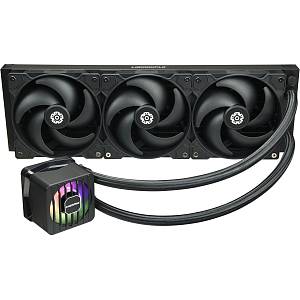

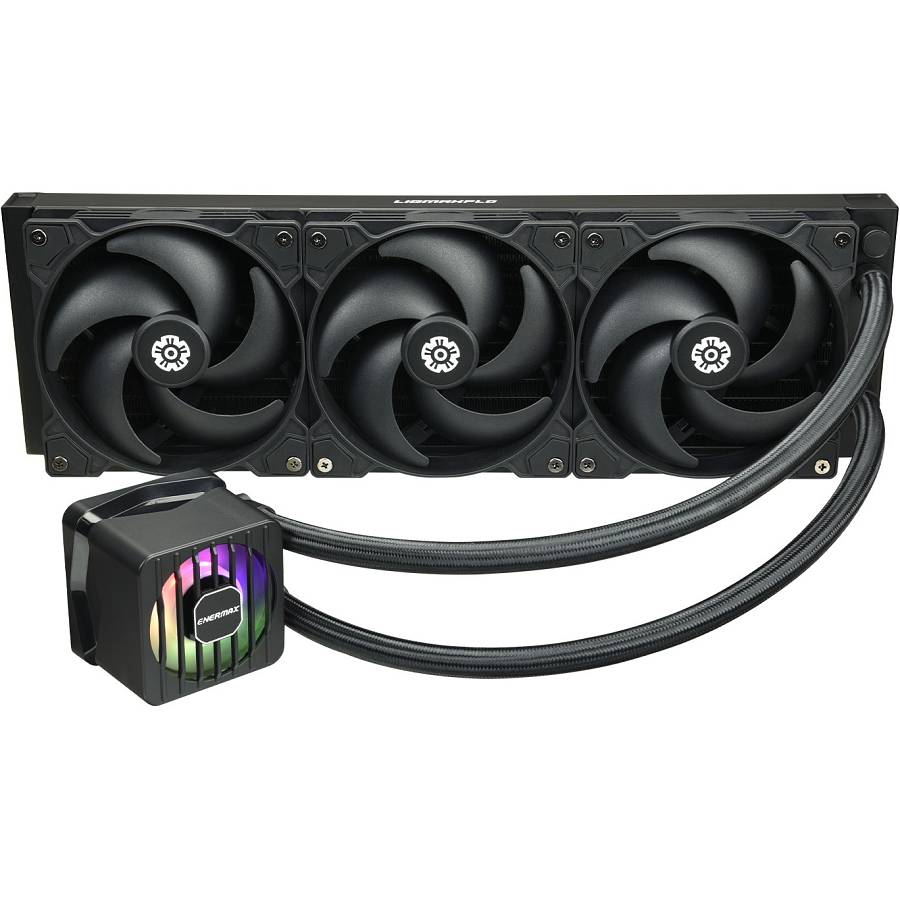

K Cooler Enermax LIQMAXFLO SR ELC-LMF360-SF
Product code: 10629922 // MPN: ELC-LMF360-SF // EAN: 4713157727190
Similar products
The LIQMAXFLO series. an AIO CPU Cooler featuring ENERMAX’s latest Dual-Chamber Xtreme pump and latest silent fan. delivers exceptional improvements in cooling performance with maximum quietness. LIQMAXFLO series is recommending as Intel® compatible vendor liquid cooling solutions. The combination of the LIQMAXFLO series and Intel® Core™ processors (14th gen) will maximize performance for your most demanding needs and deliver even more ultra-efficient multitasking. so you can game. stream. and record at once or video conference while sharing 4K video seamlessly.
60MM VRM FAN
LIQMAXFLO series comes with a 60mm VRM Fan with the 3-phase 6-pole motor to provide stable and silent airflow for the motherboard VRM.
ULTRA COOLING WITH MORE AIRFLOW
With the fan speed up to 3.000 rpm. the VRM fan delivers better airflow to effectively reduce temperatures of components surrounding the CPU. especially in overclocking scenarios.
MAGNETIC AND ROTATABLE PUMP COVER
The pump cover is changeable with a magnetic connection that the orientation of the logo can be changed at 90° for easier customization.
*Different options for pump cover will be available soon.
VRM FAN WITH RGB LIGHTING
With the ARGB VRM fan. you can create stunning synchronized lighting with supported motherboard’s software.
UPGRADED PRE-APPLIED THERMAL GREASE
The LIQMAXFLO series provides pre-applied premium Dow Corning® TC-5888 thermal grease and an extra tube for effortless installation.
EXTENSIVE COMPATIBILITY IN DIFFERENT SIZES
Intel Socket: LGA 1700/1200/115x/2066/2011/2011-3/1366
AMD Socket: AM5/AM4/AM3+/FM2+/FM1
ADVANCED DUAL-CHAMBER XTREME PUMP
Introducing ENERMAX’s latest Dual-Chamber Xtreme pump with ENERMAX’s patented Shunt-Channel technology with an enlarged coolant inlet and optimized flow design. increasing the overall pump pressure (hydraulic head) by up to 30% and the coolant flow rate by up to 20%. The improvement in cooling efficiency results in an impressive 4°C lower thermal output for every 100-watt load.
TRANSCENDENCE TO EXTRAORDINARY – SILENT FLOW FAN
ENERMAX brings you the ultimate solution for radiator fans. the Silent Flow fan. which applies high-quality F.D.B. bearing and ENERMAX exclusive high-pressure fan blade design to significantly enlarge the airflow and air pressure without increasing noise levels. A maximum of 25.47dB(A). making it nearly inaudible at mid-speed.
EXCEPTIONAL FAN BLADE
With thicker fan blade in 3mm (compare to standard 1.8 to 2.2mm fans). the Silent Flow Fan accomplish quieter operation through minimized vibration. a significant leap forward in silent performance.
ANGLE OF ATTACK
The leading edge of the Silent Flow fan is characterized by a carefully calibrated “Angle of Attack” of 34.73°. a design parameter unique to its 5-blade configuration. This expertly crafted angle forms a perfect equilibrium between enhanced cooling performance and minimized noise levels.
AN ALL-PWM-CONTROLLED LIQUID CPU COOLER
The LIQMAXFLO series embraces the PWM mechanism that the pump. VRM fan and radiator fan(s) can alter their speed and airflow based on temperature to save unnecessary power churn and create a quieter environment.
PUMP
The ENERMAX’s very first PWM pump
1.200 – 3.000 RPM
VRM FAN
Smart extra cooling
500 – 3.000 RPM
RADIATOR FAN
Powerful and quiet
500 – 1.800 RPM
Performance
Suitable location: Processor
Type: Liquid cooling kit
Fan diameter: 12 cm
Rotational speed (min): 500 RPM
Rotational speed (max): 1800 RPM
Maximum airflow: 58.03 cfm
Maximum air pressure: 2.4 mmH2O
Feature: Pulse-width modulation (PWM) support
Bearing type: Ceramic bearing
Fan noise level (max): 23.46 dB
Quantity per pack: 1 pc(s)
Pump motor speed: 1200 RPM
Pump motor speed (min): 3000 RPM
VRM fan speed (min): 500 RPM
VRM fan speed (max): 3000 RPM
Fan's mean time to failure (MTTF): 60000 h
Mean time between failures (MTBF): 50000 h
Design
Product colour: Black
Radiator material: Aluminum
Base plate material: Copper
Number of fans: 3 fan(s)
Number of fan blades: 5
Feature: Illumination LED
Illumination colour: Multi
Fan connector: 4-pin
Power
Thermal Design Power (TDP): 370 W
Pump voltage: 12 V
Pump current: 430 mA
Fan voltage: 12 V
Fan current: 0.08 A
Weight & dimensions
Radiator width: 39.5 cm
Radiator depth: 12 cm
Radiator height: 2.7 cm
Tube length: 40 cm
VRM fan diameter: 6 cm
Fan dimensions (W x D x H): 120 x 120 x 26.8 mm
Package width: 448 mm
Package depth: 205 mm
Package height: 137 mm
Package weight: 2.78 kg
Packaging content
Package type: Box
Cables included: SATA
Feature: Screws included
Feature: Thermal pad included
Number of washers included: 4
Number of clips: 3
Feature: CPU socket spacer(s)
Feature: CPU bracket(s)
Other features
Tube material: Rubber
Logistics data
Master (outer) case width: 467 mm
Master (outer) case length: 292 mm
Master (outer) case height: 440 mm
Master (outer) case gross weight: 11.1 kg
Products per master (outer) case: 4 pc(s)
